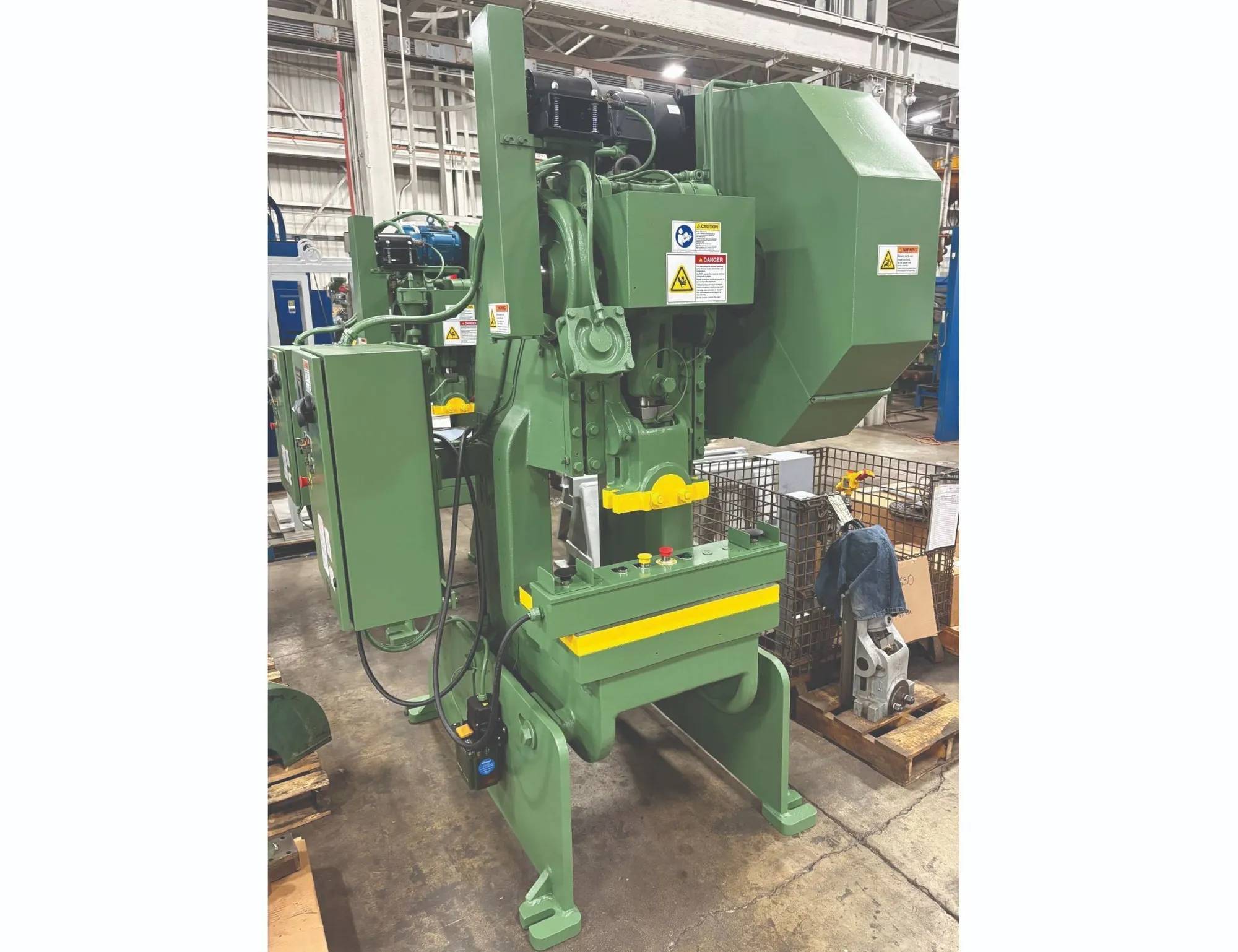

Remanufactured 40 Ton Rousselle Model 4F Flywheel Single Crank OBI Press, used condition, offers 105 strokes/min, 40-ton capacity, and advanced press control. Features a 26" x 16" bed, air clutch, and more. Ready to ship, ideal for your pressing needs.
| Ton | 40 T | |
| Bed L-R | 26 in | |
| Bed F-B | 16 in | |
| Stroke | 3 in | |
| Adjustment | 3.5 in | |
| Shut Height | 12 in | |
| Speed (max) | 105 strokes/min. | 105 strokes/min. |
| OBI Single Double | Single | Single |
| Cushions | NO | NO |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 39" x 55.5" x 91" tall | 39" x 55.5" x 91" tall |
| Weight | 4,300# | 4,300# |
IN STOCK READY TO SHIP
Capacity: 40 Ton
Stroke: 3"
Adjustment: 3.5"
Shut Height: 12" over bed
Shut Height: 10.25" over bolster
Bed Area: 26" lr x 16" fb
Bolster Thickness: 1.75"
Hole In Bed: 14.5" lr x 10.5" fb
Die Shank Hole: 2"
Depth of Throat: 9.5"
Width of opening thru back: 16"
Floor to top of Bed: 30.75"
Floor to top of Bolster: 32.5"
Degree of incline: 30º
Link 5100 MPC Press Control
Automatic Oil Lubrication System
Dual Palm Buttons
Top Stop
Inch / Single / Continuous Modes
Motor: 3HP
Options:
Pedestal Stand with 15' cable for operator station: $721.00
Isolation Mounts: $590.00
