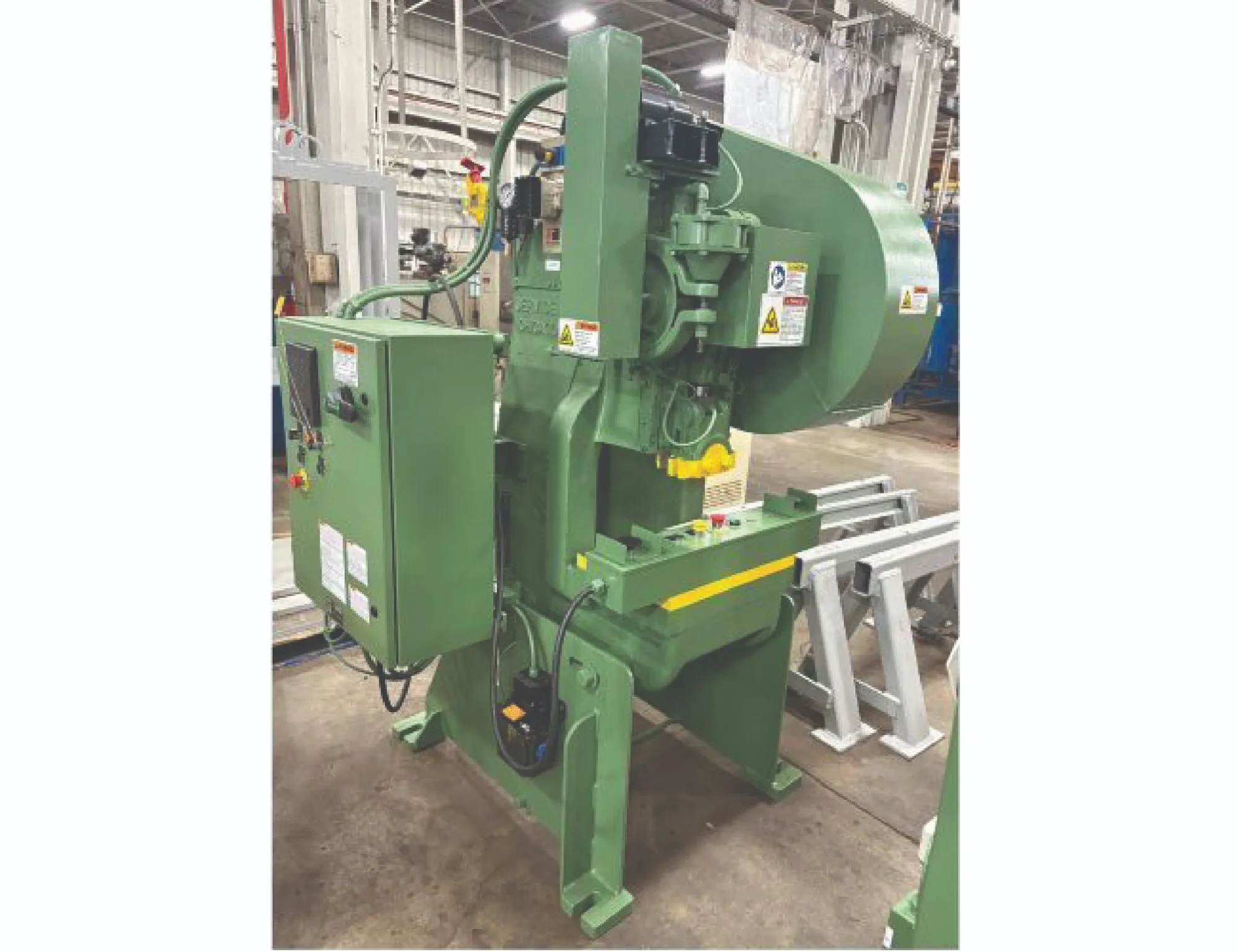

Remanufactured 25 Ton Rousselle Model 3F OBI Press. Key features: 20"x14" bed, 2" stroke, 10.75" shut height, 135 strokes/min, air clutch, Link 5100 MPC control, automatic oil, dual palm buttons. Options: pedestal stand, isolation mounts available.
| Ton | 25 T | |
| Bed L-R | 20 in | |
| Bed F-B | 14 in | |
| Stroke | 2 in | |
| Adjustment | 2 in | |
| Shut Height | 10.75 in | |
| Speed (max) | 135 strokes/min. | 135 strokes/min. |
| OBI Single Double | SIngle | SIngle |
| Cushions | No | No |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 34.5" x 42.5" x 82" tall | 34.5" x 42.5" x 82" tall |
| Weight | 2500# | 2500# |
Capacity: 25 Ton
Stroke: 2"
Adjustment: 2"
Shut Height: 10.75" over bed
Shut Height: 9.25" over bolster
Bed Area: 20" lr x 14" fb
Bolster Thickness: 1.5"
Hole In Bed: 12" lr x 7" fb
Die Shank Hole: 1.562"
Depth of Throat: 7.5"
Width of opening thru back: 13.5"
Floor to top of Bed: 32.75"
Floor to top of Bolster: 34.25"
Degree of incline: 30º
Link 5100 MPC Press Control
Automatic Oil Lubrication System
Dual Palm Buttons
Top Stop
Inch / Single / Continuous Modes
Motor: 2HP
Options:
Pedestal Stand with 15' cable for operator station: $721.00
Isolation Mounts: $590.00
