USED ELLIOTT 32M4

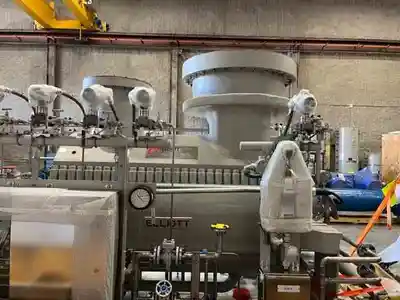

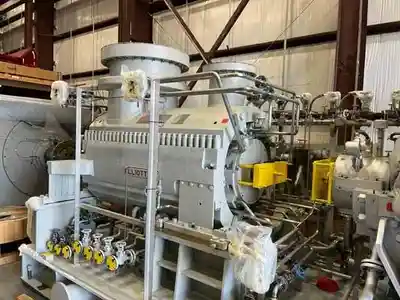

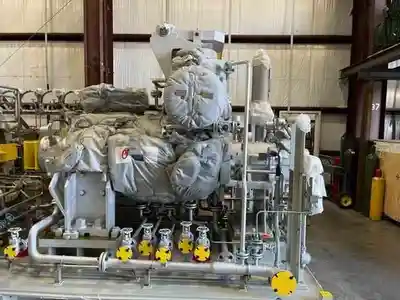

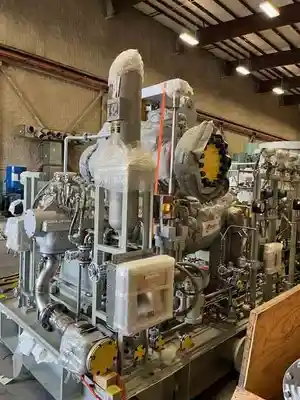

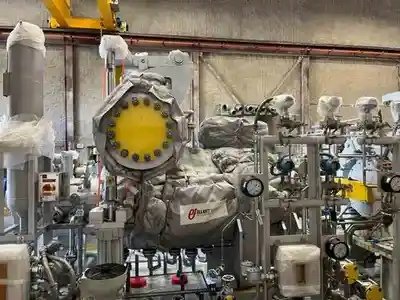

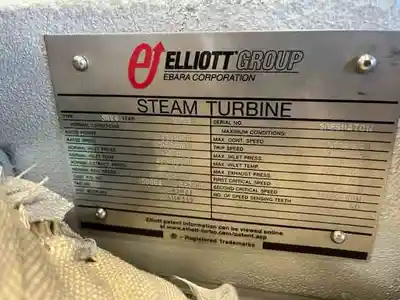

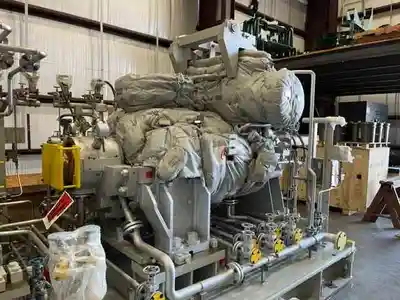

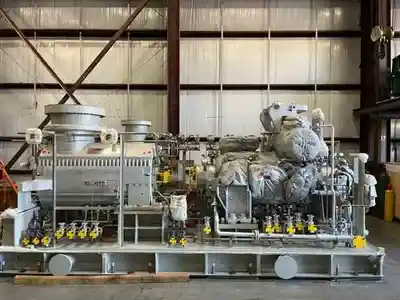

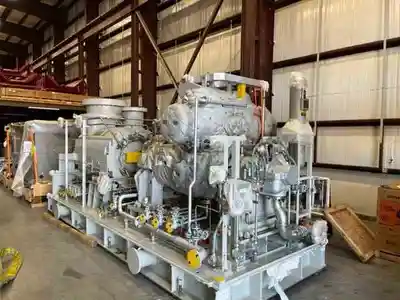

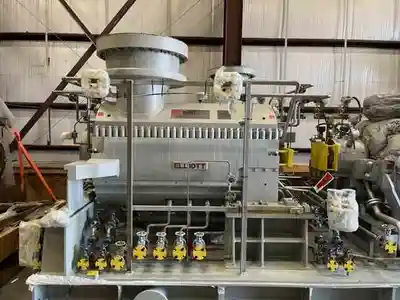

Unused 19400 CFM Elliott Compressor with Steam Turbine skid. Consisting of Elliot Centrifugal compressor: Model 32M4. Design Inlet Pressure: 15 psia. Design Inlet Temp: 35F. Design Discharge Pressure: 77-90 psia. 17862 CFM - 19400 CFM. Design Speed: 6516 to 7178 RPM. POS-E-Coat 523 on rotor and diaphragms. Kingsbury LEG bearings with instrumentation (Thrust). Elliott TPJ. John Crane T28 gas seals. Inlet Flange size: 12" 600#. Discharge Flange: 30" 600#. Unused 3399HP Elliott Steam Turbine. Model SRV4. Inlet Condition: 150 PSIG @ 420F. Exhaust: 15 PSIG @ 250F. 3399 HP. 7176 RPM. Skid Serial #20E511ATC1J. Built 2022. Overall Skid DImensions 234.44" x 111.86"W x 110.72"H. 71850 lb.

Material: Unknown
Capacity: 19400 CFM
