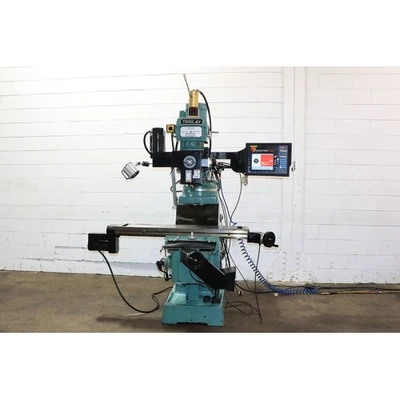

USED TRAK MACHINE TOOLS K3SMX-3

TABLE WORKING SURFACE ............... 10" X 50"
TRAVELS: LONGITUDINAL (X) ........... 32"
         CROSS
(Y) .................. 16"
         VERTICAL,
KNEE ............. 16"
         QUILL
(Z) .................. 4.9"
QUILL DIAMETER ...................... 3.375"
MAXIMUM UNIFORM TABLE LOAD .......... 750 LBS.
RAM TRAVEL .......................... 15"
HEAD TILT, LEFT AND RIGHT ........... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY .. 45 DEGREES
SPINDLE SPEEDS INFINITELY VARIABLE:
      LOW RANGE
..................... 60 - 500 RPM
      HIGH RANGE
.................... 500 - 4,200 RPM
SPINDLE TAPER ....................... R-8
MAXIMUM COLLET CAPACITY ............. 3/4"
MAXIMUM RAPID FEED RATE ............. 100 IPM
APPROX DIMENSIONS ................... 70"W X 62"D
 X 91"H
APPROX WEIGHT ....................... 2850 LBS
EQUIPPED WITH
- PROTOTRAK MODEL: SMX 3 THREE-AXIS (X,Y &
Z) CNC CONTROL
  (THREE-AXIS DIGITAL DISPLAY IN MANUAL MODE)
  ADVANCED FEATURES, NETWORKING, TRAKING
- LCD SCREEN
- BALL SCREWS & SERVO DRIVES FOR EACH PROGRAMMABLE AXIS
- TRAKING/ELECTRONIC HANDWHEELS OPTION
- HARDENED & GROUND BOX WAYS ON SADDLE
- HARDENED & GROUND DOVETAIL WAYS ON X-AXIS LONGITUDINAL
& KNEE
- TORQUE-RITE AIR ACTUATED POWER DRAW BAR
- AUTOMATIC LUBRICATION SYSTEM
- 3 HORSE POWER SPINDLE DRIVE MOTOR AND ELECTRICAL CONTROLS

CALL MARC @ (732) 390-0006 TO INSPECT UNDER POWER IN NEW
JERSEY
