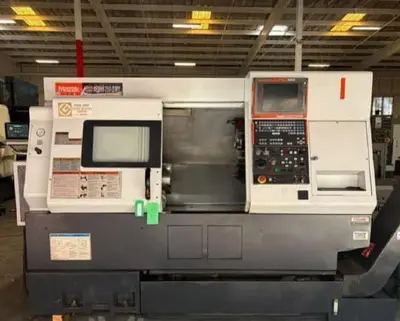

Mazak Nexus 250MY-II – 2008

MAZAK QT Nexus 250MY-II / QTN-250MY / QTN250MY

Multi-Axis Lathe
Capacity:

Max Turning Diameter: 14.96″

Max Turning Length: 19.84″

Max Swing Over Bed: 26.57″

Max Bar Capacity: 3.03″
Travels:

X Axis Travel: 9.05″

Y Axis Travel: 4.00″ ( ±2.0″ )

Z Axis Travel: 22.63″

C Axis: 360° (0.001°)
Feedrate:

Rapid Traverse X Axis: 1,181 IPM

Rapid Traverse Y Axis: 827 IPM

Rapid Traverse Z Axis: 1,299 IPM
Spindle:

Spindle Bore: 3.46″

Spindle Nose: A2-8

Spindle Speed: 4,000 RPM

Spindle Power: 35 HP
Turret:

Turret Capacity: 12 Stations

Turret Index Time: 0.2 Seconds

Milling Spindle Speed: 4,500 RPM

Milling Spindle Power: 7.5 HP

Boring Bar Max Shank Diameter: 1.57″

Turning Tool Shank Size: 1.00″
Tailstock:

Tailstock Type: Programmable NC Servo Tailstock

Tailstock Taper: MT-4

Tailstock Travel: 21.65″
General:

Power Source: 208V / 50–60 Hz / 3-Phase / 40 kVA

Overall Dimensions: 112″ × 73″ × 74″ High Approx.

Weight: 11,500 lbs. Approx.
