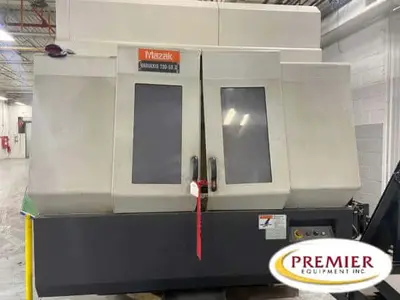

Mazak Variaxis 730-5X-II (2-Pallet) – 2007

TABLE SIZE 19.69” x 19.69”

X-AXIS STROKE 28.74”

Y-AXIS STROKE 33.46”

Z-AXIS STROKE 22.05”

A-Axis (Table Tilt) Travel

Amount/Indexing 0.0001 Deg -120 Degree to +/- 30 Degree

C-Axis (Table Rotation) Travel

Amount/Indexing 0.0001 Deg +/-360 Degree (axis control)

Distance from Spindle Nose to Table Top Face 9.06” to 31.1”

Distance from Spindle Nose to Table Center 7.09” to 29.13”

Table Max. Load (Evenly Distributed) 1102 lbs

Spindle Taper No. 50

Spindle Speed 10,000 RPM

Main Motor 30 Min: 40 HP / Cont.: 30HP

Max. Torque 433 ft-lbs

Rapid Traverse Rate XYZ 944 IPM

Cutting Feedrate 944 IPM

NUMBER OF TOOLS 120 ATC

FLOOR SPACE 143” X 235” X 141”

MACHINE WEIGHT 46,296 LBS
