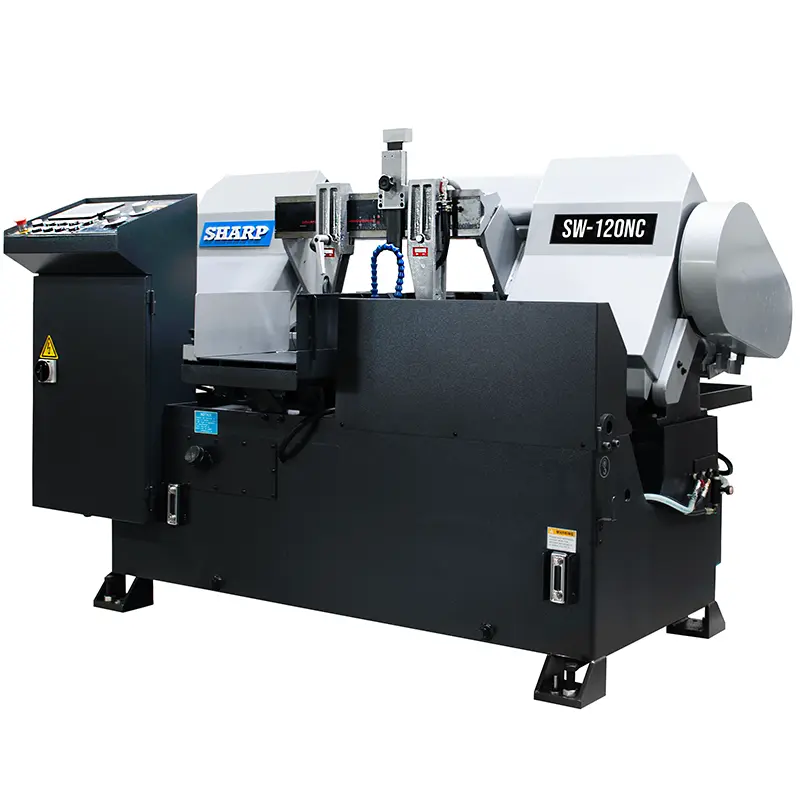

NEW SHARP SW-120-NC

This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.

- 12” round, 12” square, 13.4” x 12” rectangular cutting capacity, 5 HP
- NC operating panel with touch screen
- Hydraulic saw frame with heavy duty ball joint for powerful down feed
- Back tilt saw head design to reduce saw twisting between wheel and blade guide
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting

MAXIMUM CUTTING CAPACITY
Round 12 in.
Square 12= in.
Rectangle 12 x 13.4 in.

SAW BLADE
Speed 66 ~ 330 fpm
Size 1 1/4 x .042 x 150.4"
Tension Hydraulic
Guide Interchangeable tungsten carbide
Cleaning Steel wire brush with flexible drive shaft driven by main motor

MOTOR OUTPUT
Saw Blade 5 HP
Hydraulic 1 HP
Coolant 0.12 HP

TANK CAPACITY
Hydraulic Oil 6.6 gal
Coolant 11.9 gal

FEED
Mode Hydraulic / NC Automatic
Length Single Stroke: 15.86 in.

GENERAL
Vise Control Hydraulic with full stroke cylinder
Net Weight 3528 lb
Gross Weight 3970 lb
Floor Space (L x W x H) 7.08 x 6.80 x 6.23 ft.
