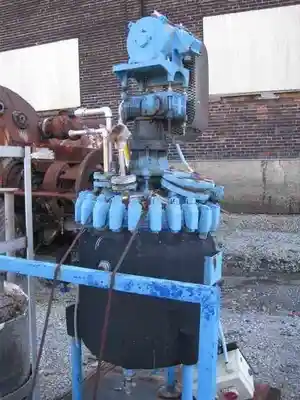

Used 30 gallon Pfaudler Reactor, 316L stainless steel construction, 2' diameter x 2' straight side, dished top and bottom, rated 100 PSI and full vacuum @ 350 degrees F, jacketed for 50 PSI @ 350 degrees F, 2.5 TW Pfaudler drive with mechanical seal and lubricator, mechanical variable speed, 1 H.P. 220/440 volt, with 2 blade anchor agitator, 4" hand hole with sight glass, (2) 2", 1.5", 1" top nozzles, 2" center bottom outlet, on legs, Serial No. E363-1061, National Board No. 19571.
Material: 316L Stainless Steel
Capacity: 30 Gal
