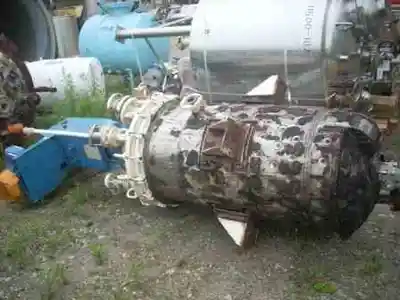

Used approximately Alloy Fab 100 gallon 316 Stainless Steel dimple jacketed reactor. Internal rated 50 PSI/ Full vacuum at 400 degrees F. Jacket rated 75 PSI @ 400 degrees F. Lightning Drive with mechanical seal, 5 HP, 3 phase, 60 cycle, 230/460 volt, 1750 rpm motor. Vessel is 24" diameter X 48" straight side. Bolted dished top. Dished bottom head. Top openings: 8" agitator opening, (1) 4" opening for sight glass, (1) 3" nozzle, (1) 3" opening for sight glass, (1) 2.5" opening, (1) 2" opening. (1) 1" opening. 2" center bottom outlet. NB 1982. SN 2924. Built 1986.
Material: 316 Stainless Steel
Capacity: 100 Gal
