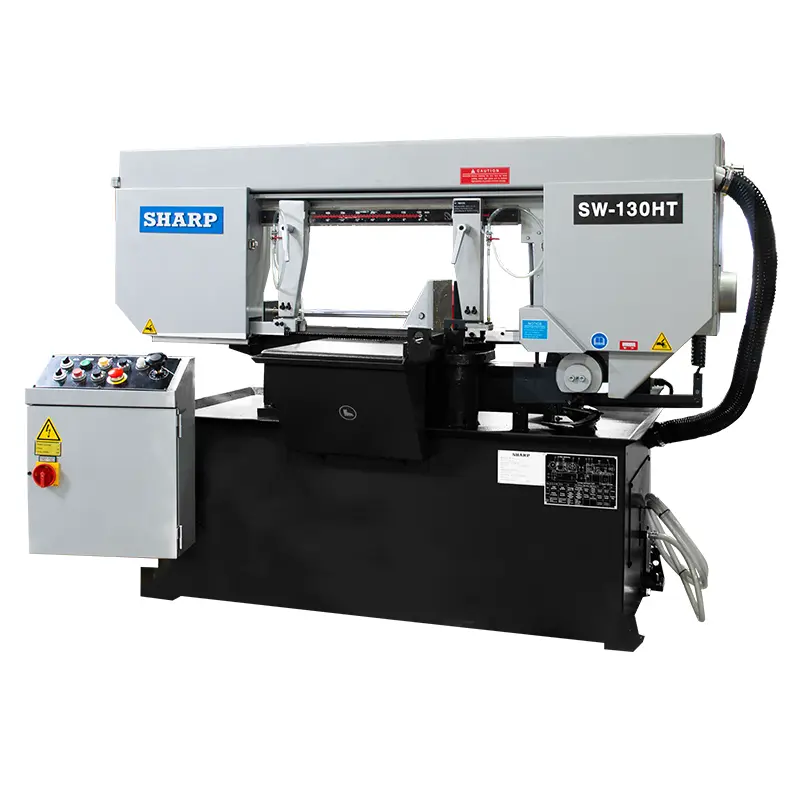

This is a semi automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.
- 13” round, 11” x 11” square, 10.6” x 18” rectangular cutting capacity (90°)
- 11.4” round, 10.5” x 10.5” square, 8.7” x 8.7” rectangular cutting capacity (45°)
- 8.7” round, 8.7” x 8.7” square, 8.7” x 8.8” rectangular cutting capacity (30°)
- 3 HP motor, 1,848 lbs
- Coolant system
- Auto saw arm return to preset height at end of cut to facilitate next cut.
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Synchronized Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
MAXIMUM CUTTING CAPICITY
90° ANGLE 45° ANGLE 30° ANGLE
Round 13 11.4 8.7
(330 mm) (300 mm) (220 mm)
Square 11 10.5 8.7
(280 mm) (240 mm) (220 mm)
Rectangle (H x W) 10.6 x 18 8.7 x 8.7 8.7 x 8.8
(440 x 280 mm) (300 x 240 mm) (220 x 240 mm)
OR
19.6 x 5.5 in.
(500 x 140 mm)
SAW BLADE
Speed 98~328 fpm
(30~100 m/min)
Size 1" x .035 x 163"
(4,140 x27 x 0.9 mm)
Tension Manual
MOTOR OUTPUT
Saw Blade 3 HP
(2.2 kW)
Hydraulic 1/2 HP
(0.37 kW)
Coolant 1/8 HP
(0.09 kW)
GENERAL
Table Height 32.3 in.
(820mm)
Net Weight SW-130HTM: 1,320 lb
(600 kg)
SW-130HTSA: 1,408 lb
(640 kg)
Gross Weight SW-130HTM: 1,760 lb
(800 kg)
SW-130HTSA: 1,848 lb
(840 kg)
Floor Space
(L x W x H) 87.44 x 43.38 x 57.8 in.
(2,221 x 1,102 x 1,469 mm)
