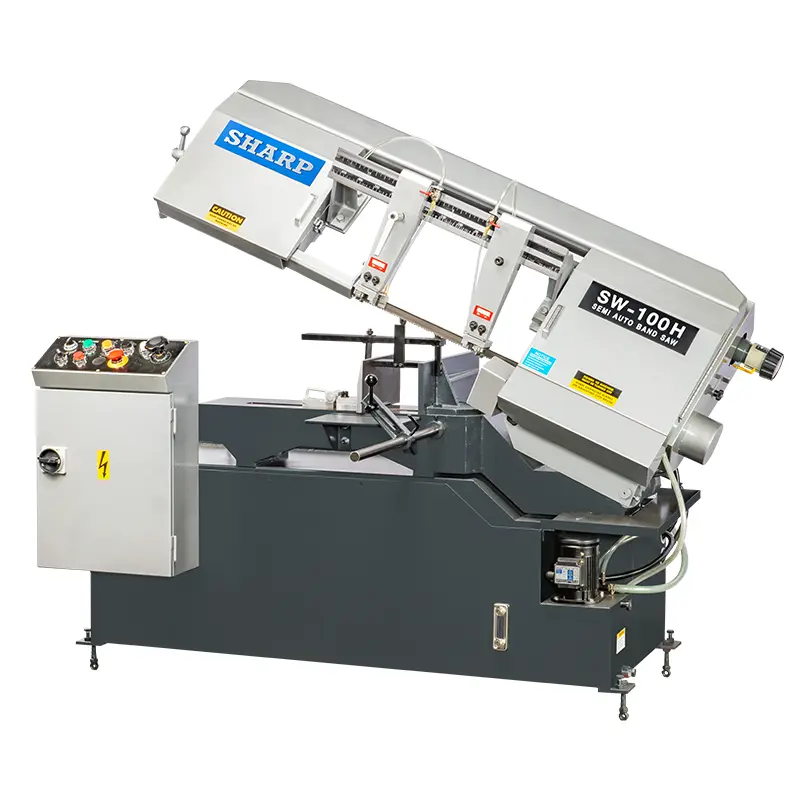

NEW SHARP SW-100H

This is a semi automatic saw with manual vise clamping and mechanical length stop.

- 10” round, 9” square, 9” x 11.8” rectangular cutting capacity
- 2 HP motor, 1276 lbs
- Coolant system
- Auto saw arm return at end of cut
- 4 step blade speeds with worm gear speed reducer
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment

MAXIMUM CUTTING CAPICITY   INCH
Round                      10
Square                     9
Rectangle (H x W)          9 x 11.8

SAW BLADE
Speed                      50HZ: (62, 102, 157, 256 ft/min)
                           60HZ: (75, 121, 190, 305 ft/min)
Size                       1" x .035 x 132"

MOTOR OUTPUT
Saw Blade                  2 HP
Hydraulic                  0.25 HP
Coolant                    0.125 HP

GENERAL
Workable Height            25 in.
Gross Weight               1276 lbs
Floor Space (L x W x H)    73 x 35.4 x 41 in.
