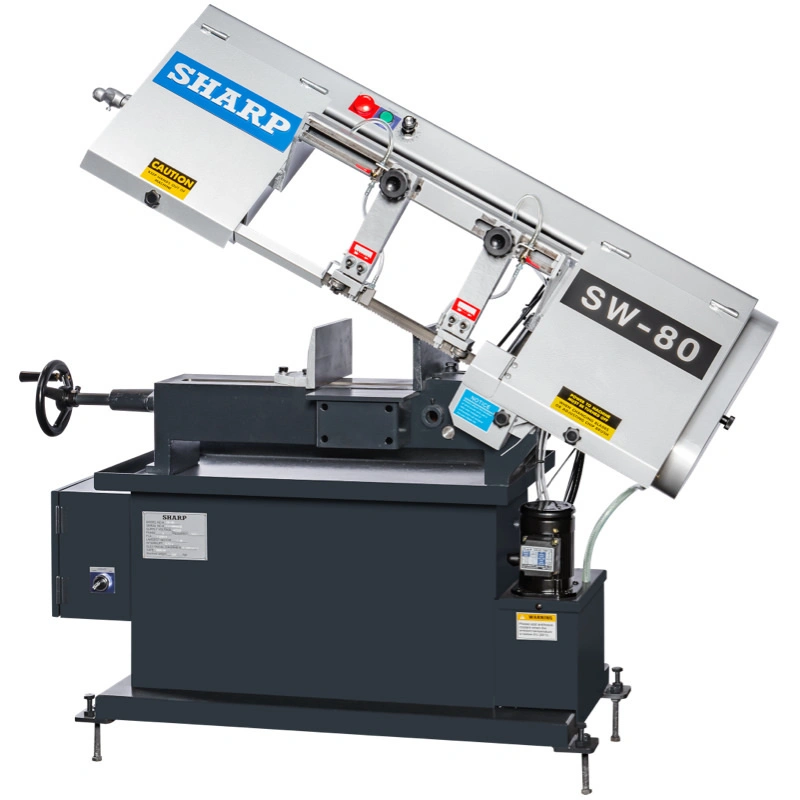

Simple, easy to use manual saw with 8” capacity for round stock, vise can swivel 45°, manual vise clamping, mechanical length stop.
- 8” round, 7” square, 7” x 11.4” rectangular cutting capacity(90°)
- 5” round, 6” square capacity (45°)
- 1 HP motor, 660 lbs
- Coolant system
- Auto saw arm return at end of cut
- 4 step blade speeds with worm gear speed reducer
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment
MAXIMUM CUTTING CAPICITY 90° ANGLE 45° ANGLE
Round 8 8 in.
(200mm) (200mm)
Square 7 6 in.
(180mm) (152mm)
Rectangle (H x W) 7 x 11.4 9 x 6 in.
(180 x 290mm) (228 x 152 mm)
SAW BLADE 90° ANGLE/ 45° ANGLE
Speed 60HZ: 59, 96, 155 , 260 fpm
(18, 29, 47, 79 m/min)
50HZ: 49, 83, 129, 217 fpm
(15, 24, 39, 66 m/min)
Size 1" x .035 x 107"
(2720 x27 x 0.9 mm)
Tension Manual
MOTOR OUTPUT 90° ANGLE/ 45° ANGLE
Saw Blade 1 HP
(0.75 kW)
Coolant 1/8 HP
(0.1 kW)
GENERAL 90° ANGLE/ 45° ANGLE
Table Height 25 in.
(640 mm)
Vise Control Manual
Net Weight 484 lbs
(220 kgs)
Gross Weight 528 lbs
(240 kgs)
Floor Space (L x W x H) 56 x 24.5 x 45
(1450 x 625 x 1145 mm)
