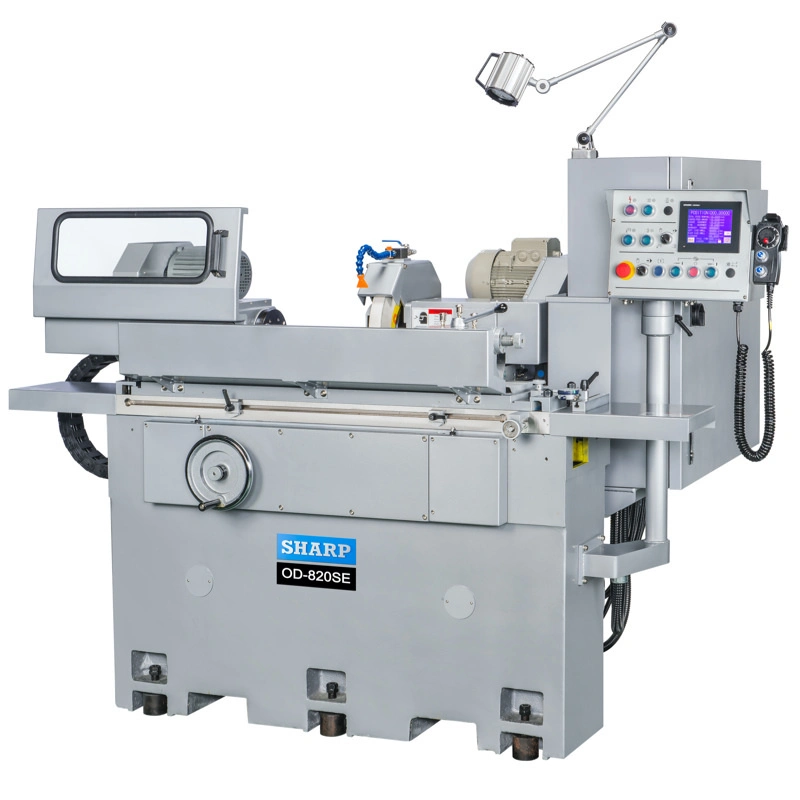

In this model of cylindrical grinder, the wheel head infeed is driven by AC digital servo motor which controls the precise distance the wheel head moves digitally. This results in more precise repetitive OD grinding and ease of operation.
- NC wheel head infeed with servo drive and ballscrew
- Touch screen operation panel with conversational type data input
- 8″ max diameter, 20″ length
- 3 HP motor
- Auto table feed
- 14″ x 1.5″ x 5″ wheel
- Manual wheel head infeed
- Work head spindle runout 0.000050″ TIR
- Spindle, wheel head & work head have variable speed drive
- Table can swivel for taper grinding
| Swing | 8.7" | 220.98 mm |
| Centers | 19.7" | 500.38 mm |
| Power | 3 hp | 2.2 kW |
| Workhead Power | 0.5 hp | 0.4 kW |
| Workhead Speed | 350 RPM | 350 RPM |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Max Weight Between Centers | 176 lb | 79.8 kg |
| Weight | 4,070 lbs. | 4,070 lbs. |
