450 gal bendel 304 stainless steel pressure vessel

Overview
Manufacturer:
BENDEL
Model:
NA
Stock #:
15939
Description

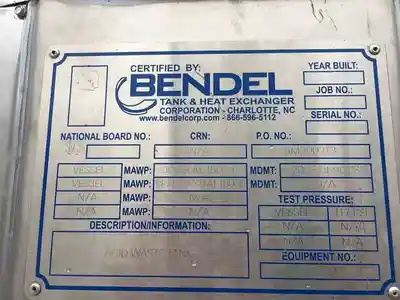

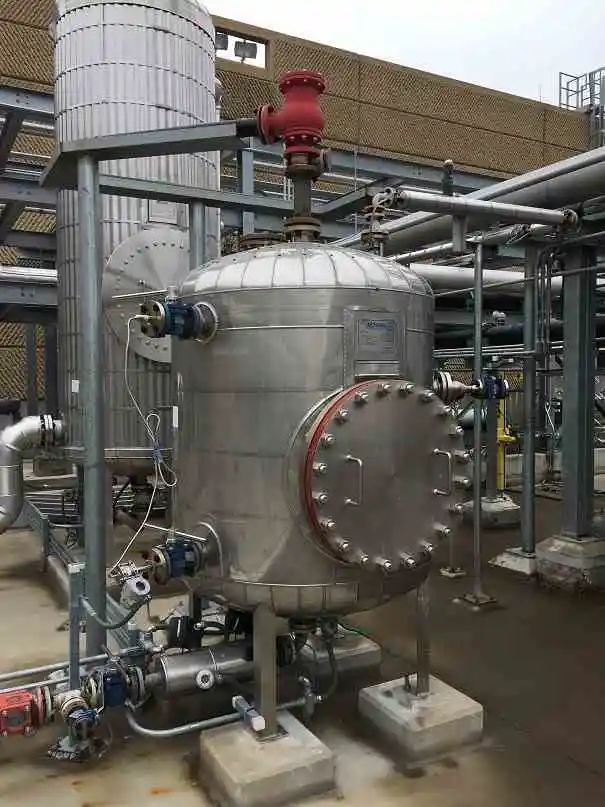

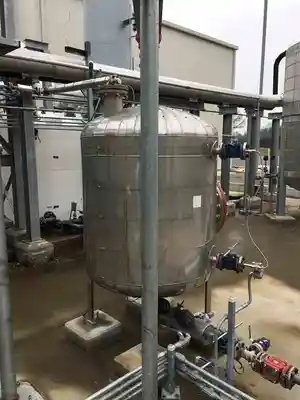

Unused Bendel 450 gallon vertical 304 stainless steel pressure tank. 4' diameter X 4' high straight side. Internal rated 90 PSI @ -20 to 150 F. Welded dished heads. NB# 1122, S/N 14706-1/1. Shell thickness: 0.25", Head thickness 0.25". Top fittings: (1) 2" flanged fitting, (1) 3" flanged fitting, and (1) 6" flanged fitting. 2" flanged center bottom outlet. (2) 2" side top and bottom for level gauge. (1) 3" side top inlet, and (1) 24" side bottom manway. Mounted on (4) I-beam legs giving 11" clearance from bottom outlet to floor. Insulated and covered with aluminum sheathing. Interior is coated with 6 mils of Ruby Red Teflon PFA. Built 2015. Weight 1900 lbs.

Specifications

Material: 304 Stainless Steel
Capacity: 450 Gal
