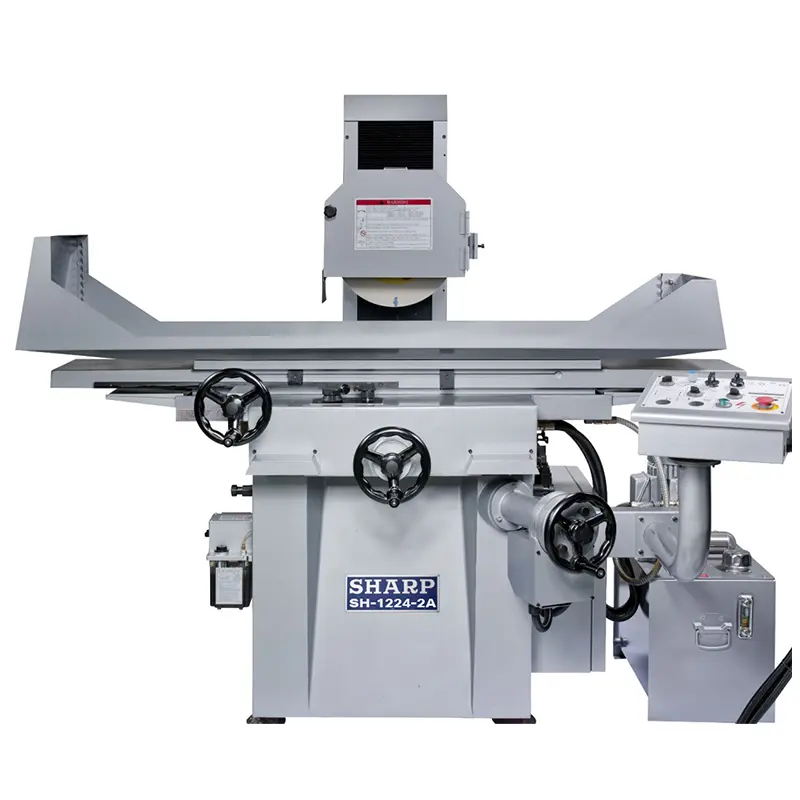

NEW SHARP SH-1224-2A
Overview
The model has automatic longitudinal and cross feed. It offers intermittent and continuous cross feed. The table and saddle both has double V ways. The NC spindle downfeed system is optional.
- 2-way auto (longitudinal and cross)
- Optional NC downfeed with ballscrew and servo feed
- 3 HP motor
- Spindle speed 1,720 rpm
- Extra wide bed
- Double longitudinal “V” ways and cross “V” ways
- Hydraulic table (w/ over travel protection) with pre-set functions
- Auto crossfeed (intermittent and continuous mode)
- Slide ways are hand scraped and TURCITE coated
Specs
CAPACITY
Max Distance : Table to Spindle Center 20 in.
TABLE
Table Size 12 x 24 in.
Longitudinal Travel 27.6 in.
Cross Travel 14 in.
LONGITUDINAL FEED OF TABLE
Hand Feed Per Revolution 0.1 in.
Hydraulic Feed 6.6-82 ipm
CROSS FEED OF SADDLE
Hand Feed Per Revolution 0.1 in.
Hand Wheel Graduation 0.0005 in
Intermittent Feed 0.0039-0.39 in./feed
Continuous Traverse Feed 39.37 in./min
VERTICAL FEED OF WHEEL
Hand Feed Per Revolution 0.05 in.
Hand Wheel Graduation 0.0001 in.
NC Down Feed 18.9 ipm
MOTORS
Spindle 3 HP
GENERAL
Floor Area (W x H x L) 6.4 x 6.13 x 5.91 ft.
Approximate Weight 4,000 lbs.
Power Consumption (220V) 5.4 KVA/25 amps
Power Consumption (440V) 5.4 KVA/12.5 amps
