USED BROWN, BOVERI & CIE NA

Overview
Manufacturer:
BROWN, BOVERI & CIE
Model:
NA
Stock #:
12123
Description

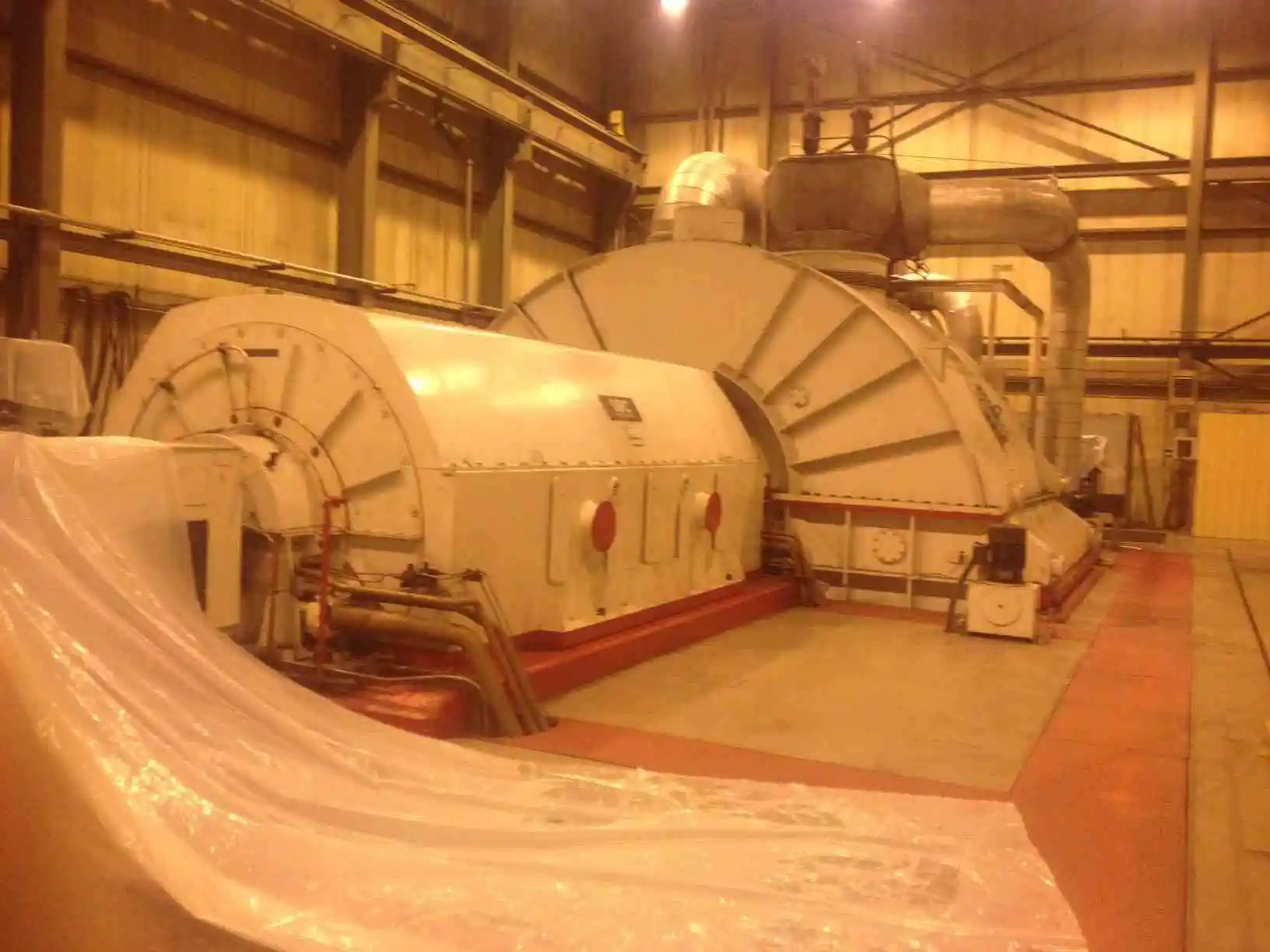

113 MW (113,000 KW) Brown, Boveri & Cie. (BBC) Steam Turbine Generator. Type DK-722-2180. 3 stages: 1st adm. steam pressure 715PSIA @ 780F. 2nd adm. steam pressure 465PSIA @ 690F. 3rd adm. steam pressure 125PSIA @ 430F. Turning Gear motor speed 1800 rpm. Turbine speed 42 rpm. 105,000 sq ft Bechtel Construction Shell and Tube Surface Condenser with water box. Shell Carbon Steel. Tubes Inhibited Admiralty Bronze. Genset: Brown, Boveri& Cie Type (Air-Cooled) WZ18L-064LLT. Capacity 114,000 KVA. 2 poles @ 13.8Kv each. power factor 0.9. 4769 A. 3600 RPM. Exciter: Brushless. Brown, Boveri & Cie Type WBT74/508/30.

Specifications

Material: Unknown
Capacity: 113000 KW
