USED JH DAY MBX700

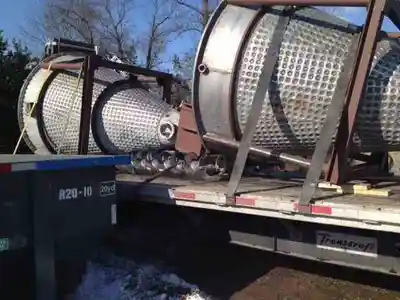

USED 70 CUBIC FT JH DAY MODEL MBX 700 NAUTA VACUUM DRYER-MIXER. STAINLESS STEEL CONSTRUCTION, (NOTE: Missing the 40 HP MAIN DRIVE), 2 HP DRIVE FOR ORBITING OF SCREW. TOP IS 76" DIAMETER, WHICH TAPERS DOWN TO A 12" CONE BOTTOM. FLAT BOLTED TOP. TOP FITTINGS; (3) 6", (4) 2", AND A 12" X 24" RECTANGULAR MANWAY. 12" DIAMETER SCREW. SIDE BOTTOM DISCHARGE WITH (1) 4", (1) 8" SIDE BOTTOM OULETS. INTERNALS ARE HIGHLY POLISHED FINISH. WITH STAINLESS STEEL DIMPLED JACKET ON THE SHELL, JACKET IS ASME CODE STAMPED FOR 125 PSI @ 353 DEG F, INTERNAL RATED FULL VACUUM. MOUNTED ON STRUCTURAL FRAMEWORK.

Material: Unknown
Capacity: 70 Cu Ft
