USED PFAUDLER A

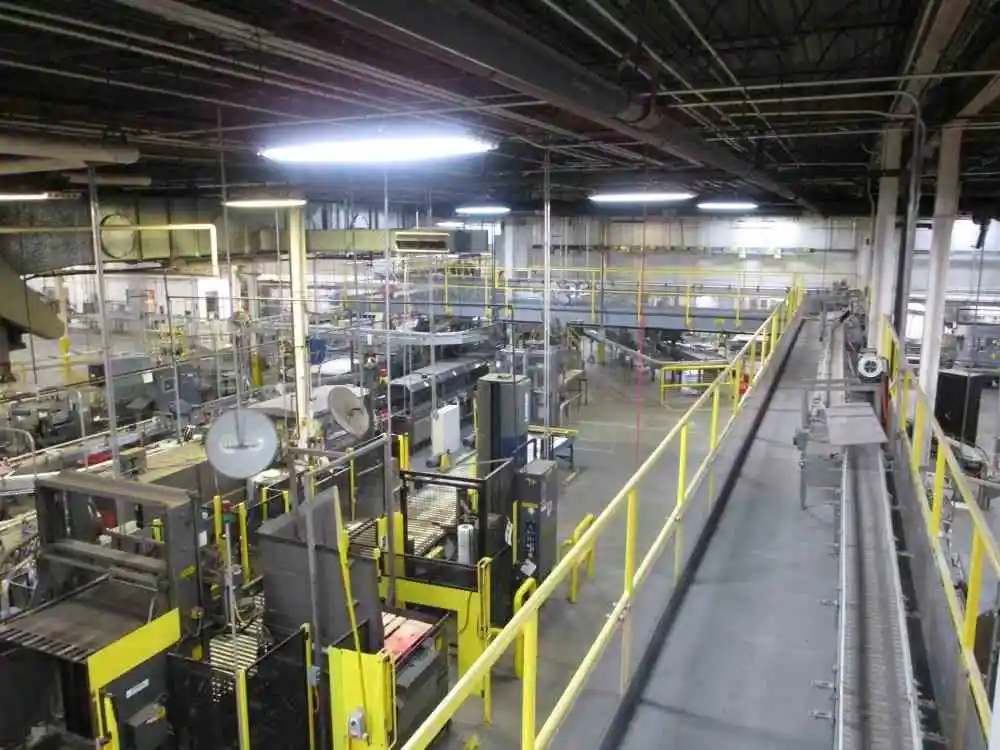

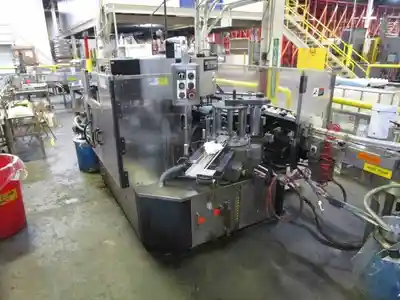

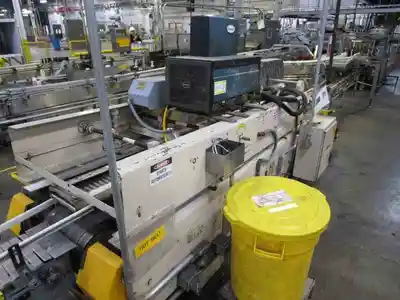

Used Pfaudler Complete Hot Fill Jar Filling Line. Last running cheese products at speeds over 300 CPM at 205 deg f. Line consists of a Seco model 400-2D bulk bottle unscrambler with slip sheet removal for short squat as well as an ABC uncaser used on 5oz glass tapered jars, Bevco glass cleaner, transfer conveyor into a Pfaudler 2021 rotary piston filler with 16 oz pistons, into an Anchor Hocking Steam Lug capper with Mepaco bulk cleated belt incline conveyor/cap feeder. Bottles were transferred into dual Elliott Model 6X-40 cooling tunnels with Vilter Ammonia heat exchangers,. Nercon bi directional accumulation table at discharge of the cooling tunnels conveyed bottles into a Paxton Air knife to blow off containers into a Safeline R508 Xray system with reject. Bottles were accumulated on a Nercon accumulation table and transferred to a Krones Starmatic front and back glue labeler and exit into a Video Jet Excel ink jet coder. Finished jars would go into a Miller Hydro Drop Packer with Elliot HMT Mini top sealer with Nordson hot melt or diverted to an Arpac TS2312-RCl Tray Packer with integrated Arpac model 60-28 shrink bundler. Finished trays or cases were transferred to a Weber 5200 print and apply labeler, then into a Columbia FL500 automatic case palletizer, with pallet feed and slip sheet dispenser in Lantech Q1000 automatic stretch wrapper. Line includes Nercon interconnecting conveyors and accumulation tables overall 76"W x 40"H x 118"L. 72"Belt. Equipment is still in operation until Q1 of 2023.
