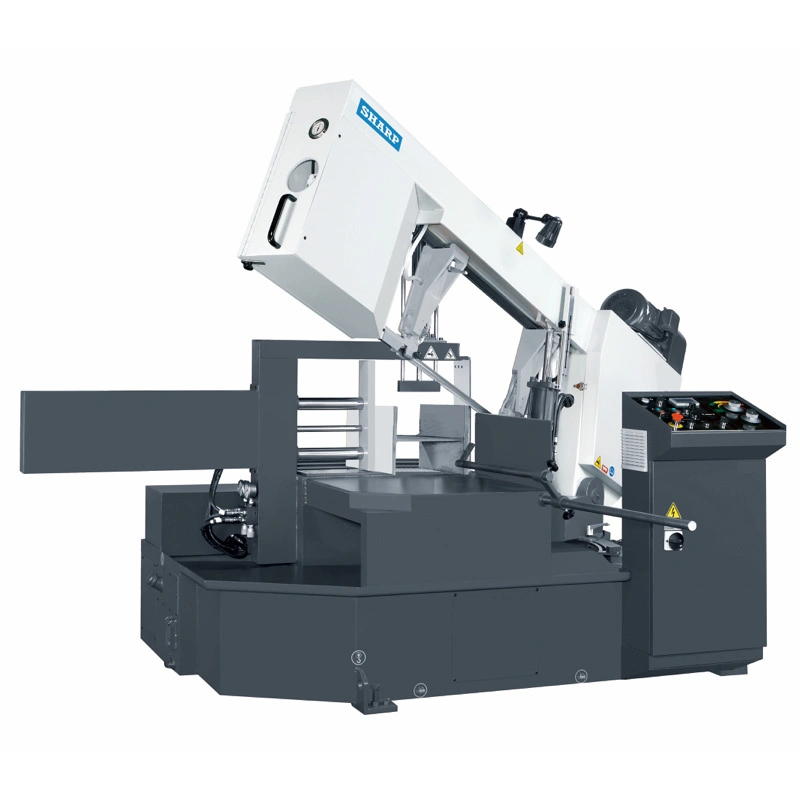

NEW SHARP SW-165HT

This is a semi automatic miter saw with saw frame that can swivel 0° to 60° for cutting work pieces. Angle change is facilitated by pivot system for accurate angle cuts. It is equipped with full stroke hydraulic vise clamping and easy to operate control panel.

- 5” round, 15” x 25.5” rectangular cutting capacity (90°)
- 7” x 9.8” rectangular (60°)
- 7” round, 15.7” x 15.7” square (45°)
- 8” round (30°)
- 5 HP motor, 3,300 lbs
- Coolant system
- Auto saw arm return to preset height at end of cut to facilitate next cut.
- 4 step blade speeds with worm gear speed reducer operated with a toggle clamp device
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Synchronized Blade brush to remove chips from blade gullet
- Adjuster stock stop
- Manual blade tension adjustment

MITER                         INCH
Miter Capacity                 60° Maximum

MAXIMUM CUTTING CAPICITY INCH
Round                         16.5
                        15.75
                        9.8
Rectangle                 14.9 x 25.5
                        15.75 x 15.75
                        15.75 x 9.8

BLADE
Inverter Control
- with LED Readout         66-330 fpm
Size                         1 1/4 x .042 x 209"
Tension Hydraulic
Cleaning                 Powered wire brush
Guides              Carbide with pre-alignment roller guides

MOTOR OUTPUT
Saw Blade                 5 HP
Hydraulic                 1 HP
Coolant                         0.12 HP

GENERAL
Weight                         3,307 lbs.
Workbed Height                 29.52 in.
Floor Space (L x W x H)         90.55 x 114.17 x 98.42 in.
