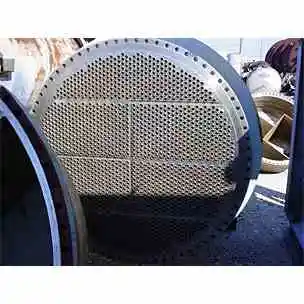

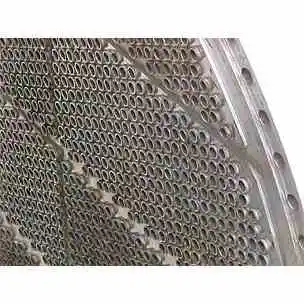

7596 sq ft struthers wells stainless steel shell & tube heat exchanger

7596 Sq Ft (Mfd by Struthers Wells) horizontal shell & tube heat exchanger, CS shell rated 167 PSI @ 350 degrees F. (1759 Tube holes) 3/4" 304-SS tubes rated 222 PSI @ 275 degrees F., 22' long. Shell dia: 4'. Shell nozzles: (2) 18", Tube nozzles: (2) 10". 304L-SS Heads. Passes: Shell (1), Tubes (6). No of Baffles: 16, Baffle spacing: 28. Type: CEM, w/ (2) steam chest & expansion joint. NB: 7751. Previous Use: Absorber Water Chiller

Material: Carbon Steel
Capacity: 7596 Sq Ft
