USED PFAUDLER 3.4-12L-BVO

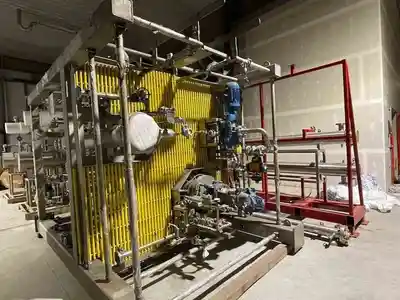

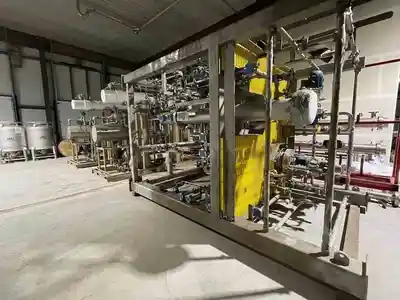

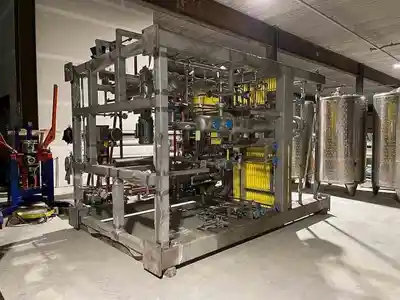

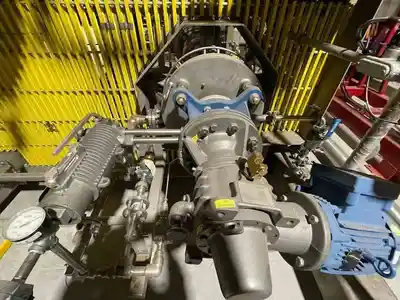

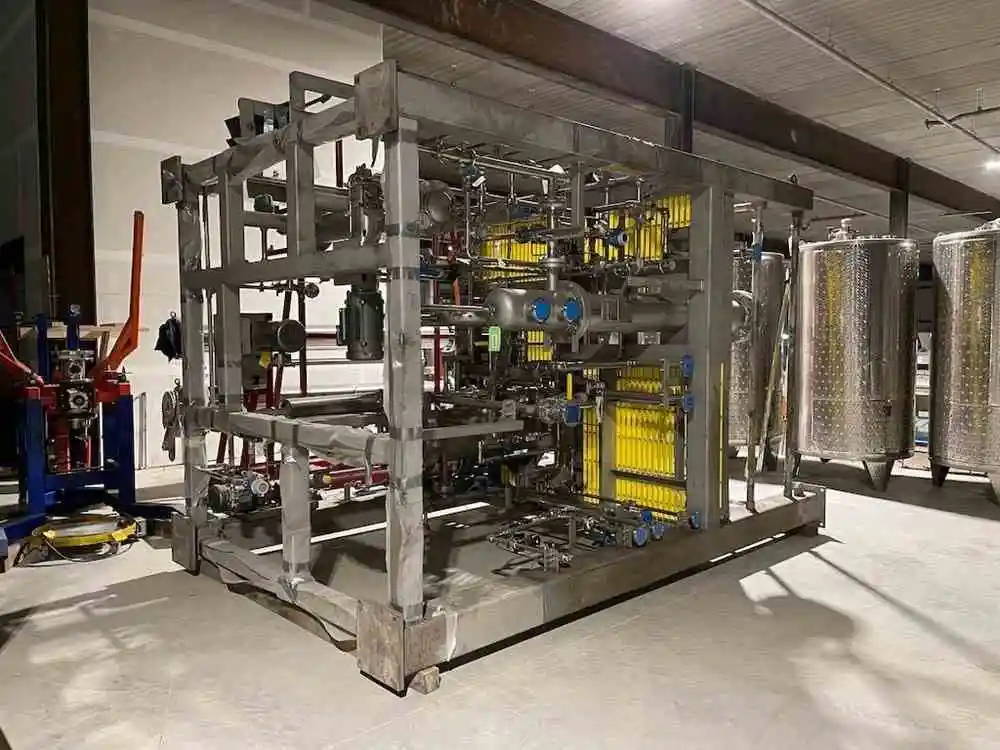

Unused 13.4 Square Foot surface area Stainless Steel wiped film evaporator system. Manufactured by Pfaudler. Two-stage design with external condenser. EV-1: Wiped Film Evaporator Model 13.4-12L-BVO 13.4.sq. ft. (1.2 m2) of heated surface designed for external condenser, louvered style entrainment separator with centrifugal, carbon graphite wiper blades, standard vacuum design, 316 SS construction on process side and carbon steel construction on the utility side, complete with drive and double mechanical lubricated seal. Designed and built to ASME Code - Internal rated 14.9 psig/FV at -20° F to 450° F. CN-11, External Condenser all 316 SS construction, BEM TEMA design, ASME Code Rated, CRN Registration With liquid ring vacuum pump and receiver. Built 2018.
