USED DRYING SOLUTIONS INC. NA

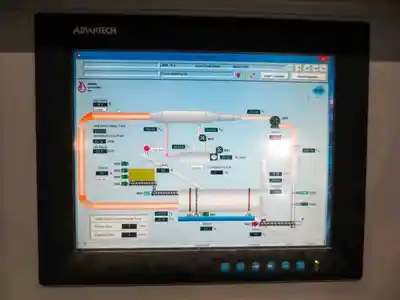

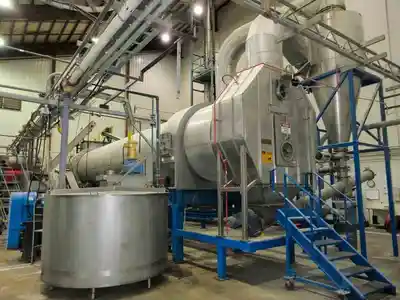

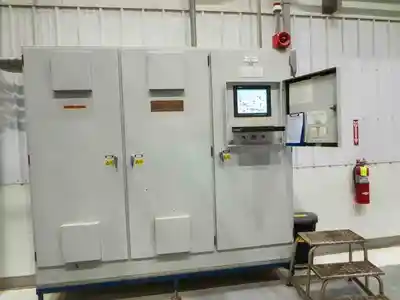

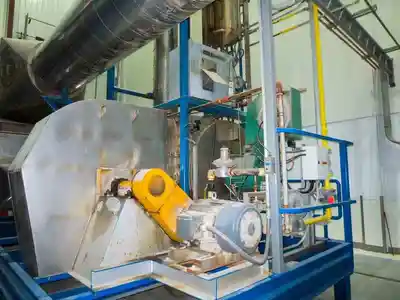

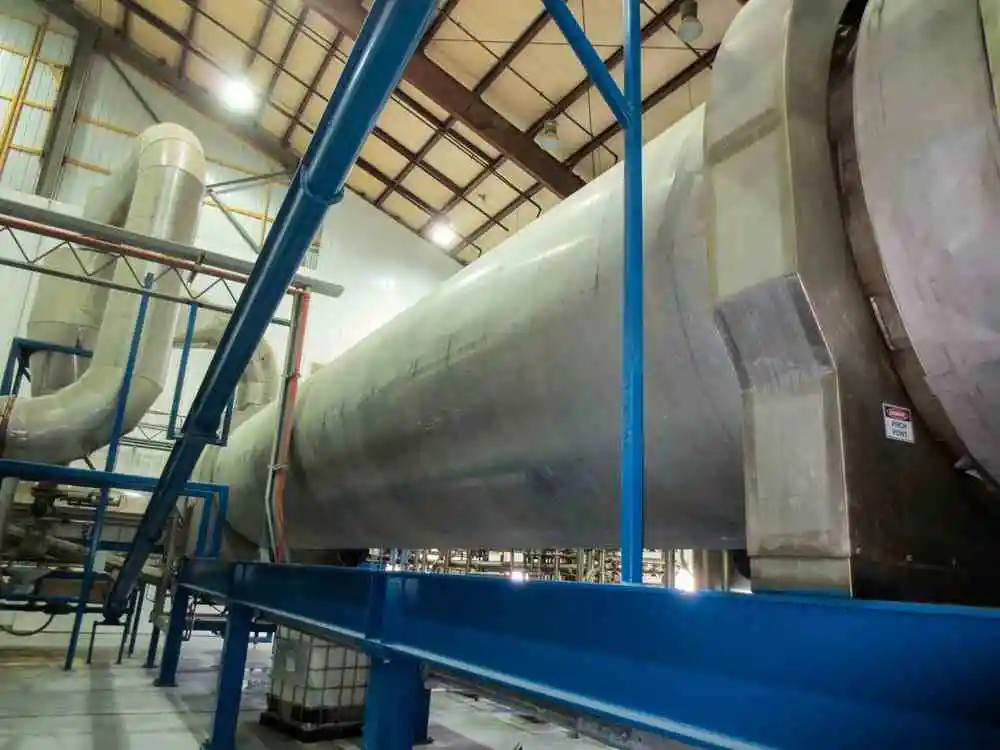

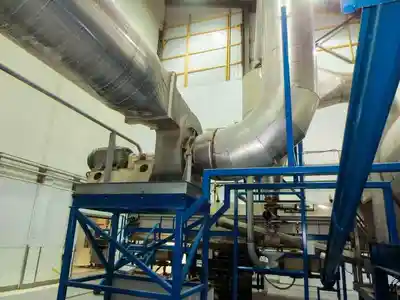

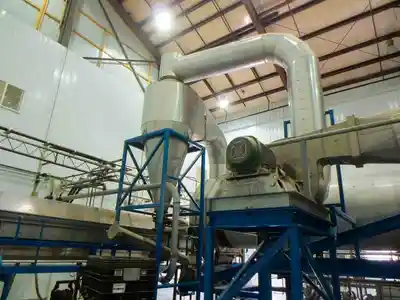

Used 70" Diameter 304L Stainless Steel Rotary Steam Dryer. Manufactured by Drying Solutions Inc. Drum: 580"OAL. Rated at 1500 lbs/hr capacity with co-current single-pass superheated steam. Conveying air feed 1973 acfm @ 266F - 288F. (Max inlet temp 680F). Natural gas fired burner with controls and fire-eye, Blower, belt drive. Rated at 7.3 MMBTU/hr. Cyclone and vertical condenser. Drag conveyer and 3 screw conveyors. Electrical 200 amp service 460v. Starters and VFD's are located in the control cabinet. (4) VFDs. 60HP blower, 60HP conveying fan, 40 HP burner, 40HP drum. All controls including PLC and touch screen HMI built into panel. Built 2009. Last use soybean meal.

Material: 304L Stainless Steel
Capacity: 70 " Dia
