USED KWS MANUFACTURING COMPANY LTD. 14DIAX18-OLG

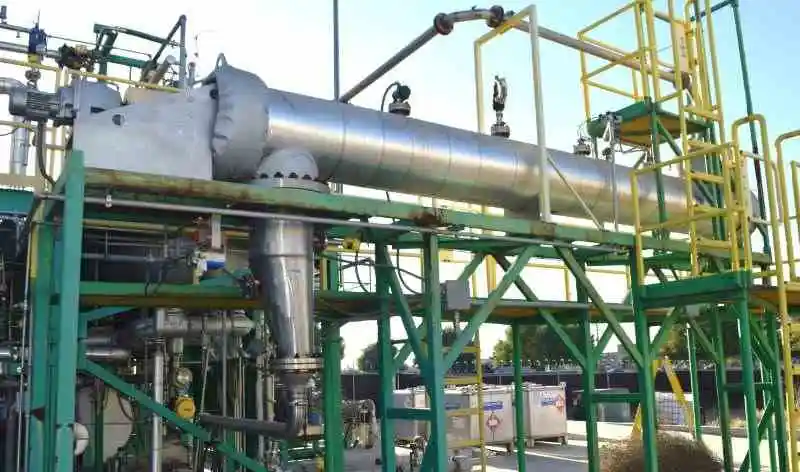

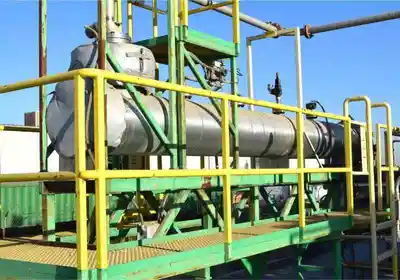

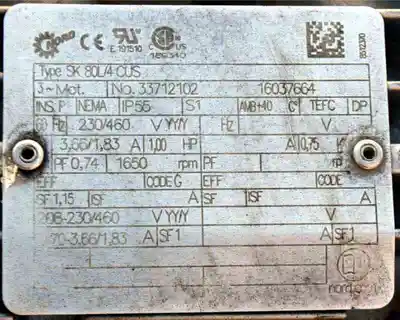

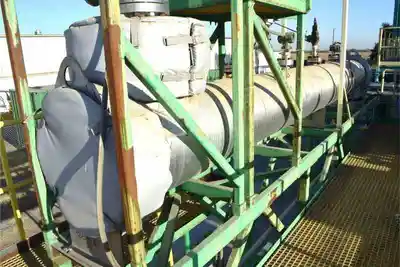

Used 14" Dia KWS Manufacturing Enclosed Tube Screw Conveyor, Model 14DIAX18-OLG, 304 Stainless Steel, Horizontal. 14" Diameter x 216” long x approximate 3" pitch screw, approximate 8.1 screw rpm. Designed to convey 11 cubic feet per hour of 60 pounds per cubic foot material. Jacketed trough rated 247 psi at -20 to 392 degrees F. Driven by a 1hp, 3/60/230/460 volt, 1650 rpm gear motor, ratio 204.42 to 1. Mounted on a saddles. Serial# 0085552, built 2012.

Material: 304 Stainless Steel
Capacity: 14 " Wide
