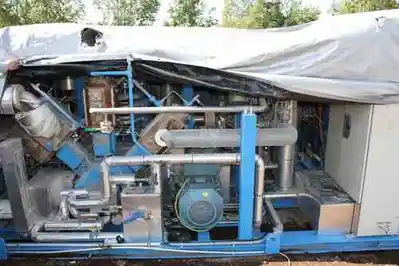

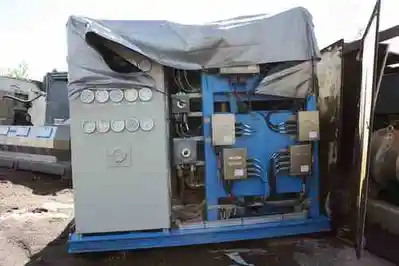

USED SIAD MACCHINE IMPIANTI TS3/220-A4

Used synthesis gas (syngas) compressor. Manufactured by Siad Macchine Impianti (Italy), type TS3/220-A4, suitability to explosive atmosphere II2G. Gas to be compressed has suction condition of 70 KPa a at 50 °C, and delivery condition of 3,200 KPa a at 30 °C. It has 4 compression stages. Flow rate of 1st/2nd stage is 93 Kg/hr; 3rd/4th stage 82 Kg/hr. Compressor motor speed 727 RPM, shaft horsepower 24 KW, installed power 30 KW. Operating pressure: 70 KPa a at suction, 192 KPa a at 1st stage, 172.5 KPa a at 2nd stage, 1466.5 KPa a at 3rd stage, 3220 KPa a at 4th stage. Built 2009.

Material: Unknown
Capacity: 655 CFM
