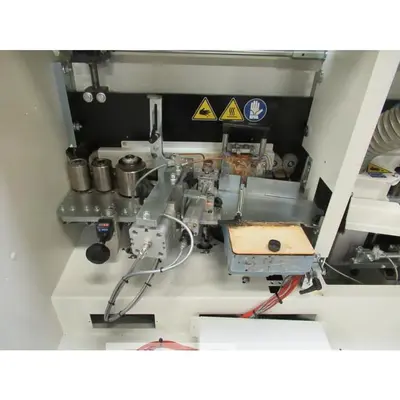

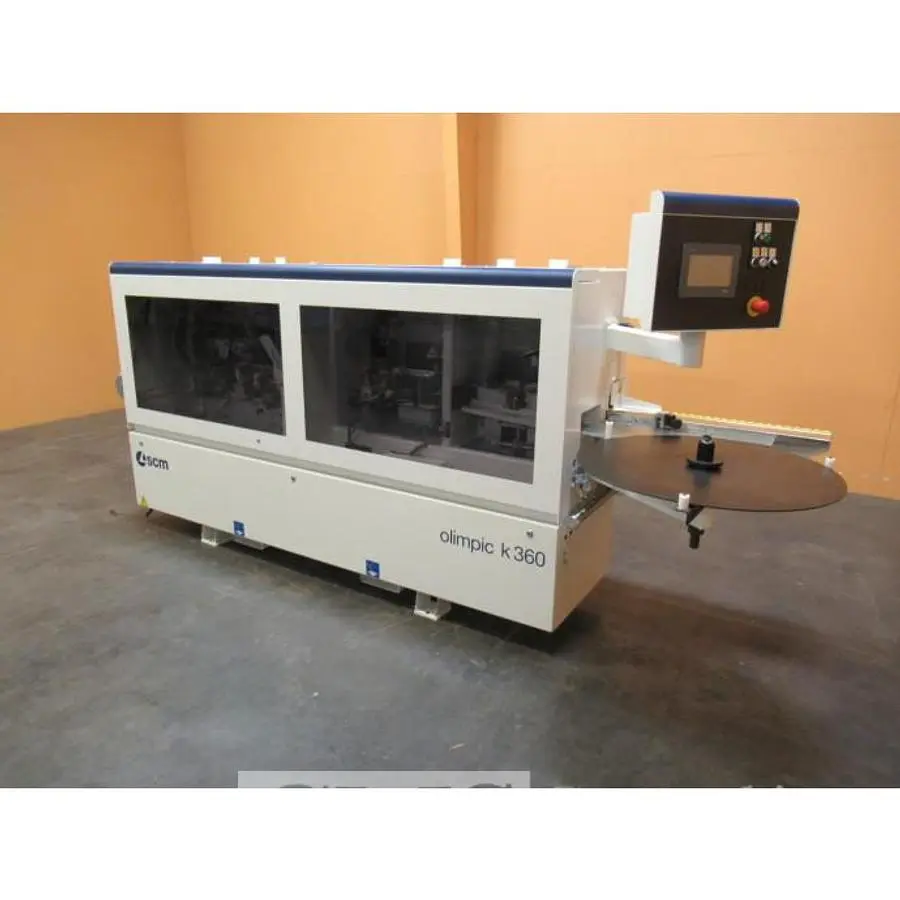

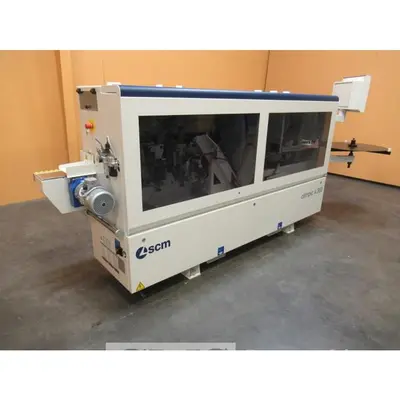

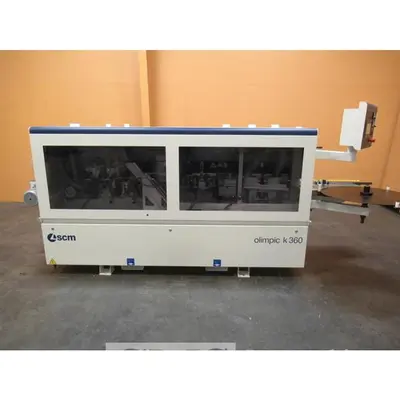

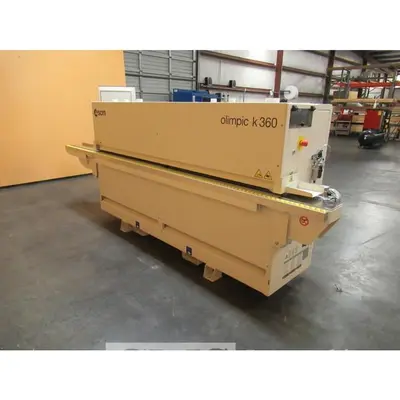

USED 2022 SCM OLIMPIC K360 EDGEBANDER WITH PRE-MILLING

0.4 to 6 mm Edgebanding thickness capacity
3 mm Guillotine capacity
3/8" to 2-1/2" Panel thickness capacity
5-1/2" Minimum panel length
2-3/8" Minumum Panel width
20" Minimum distance between panels
Feed speed: 36 FPM

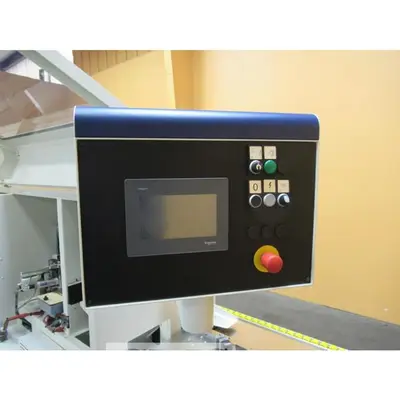

"Touch 7" Controller with 7" touchscreen capable of storing up to 60 programs
Quick change/disconnect glue pot
Automatic strip feed magazine
3-Roll pressure section (1 large driven roller, 2 idle rollers)

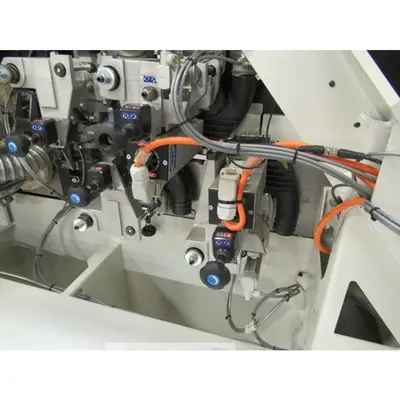

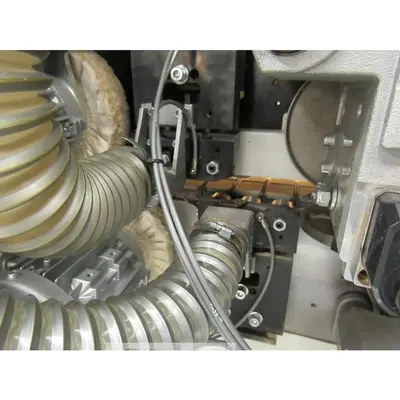

Pre-milling station with (2) 2 hp high frequency motors with jumping action controlled through the PLC
(2) 0.25 HP motors for end trim with pneumatic tilt

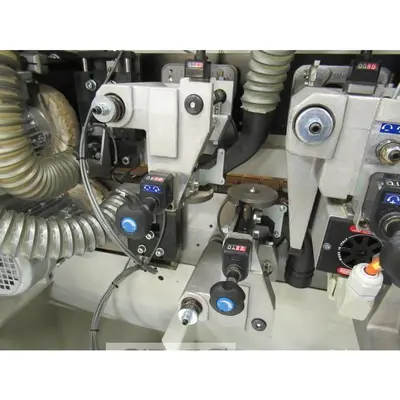

(2) 0.7 HP motors for top and bottom trim with 3-position pneumatics to go from thin PVC, to 3mm, to solid wood; all through the controller
Profile scraping station with pneumatic positioning
Glue scraping station with pneumatic positioning

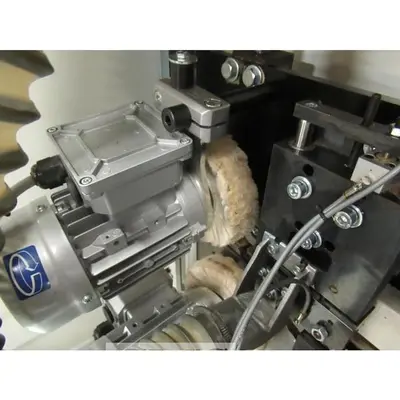

(2) 0.25 HP top and bottom buffing, tiltable 0 to 15 deg.

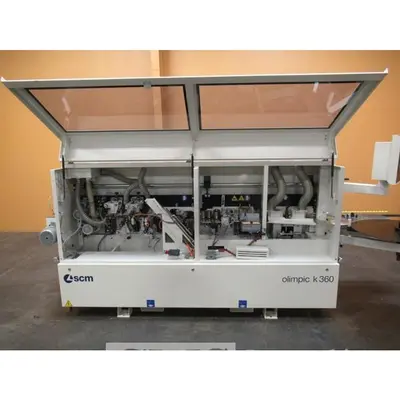

Acoustical safety enclosure
Air requirements: 90 PSI

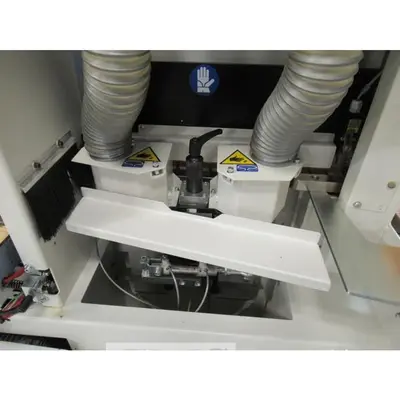

Dust extraction: (2) 3” ports for premilling station, (2) 2” ports for the top and bottom trim station and (1) 3” ports for the 3 mm collection bin for extraction (recommend dust collector with 3000 cfm rating)

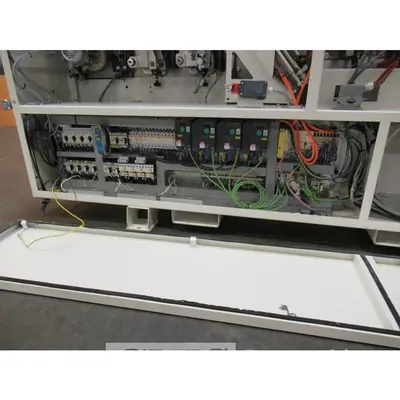

Electrical requirements: 44 amps on 230 volt 3 phase
Machine weight: 3,200 lbs.
