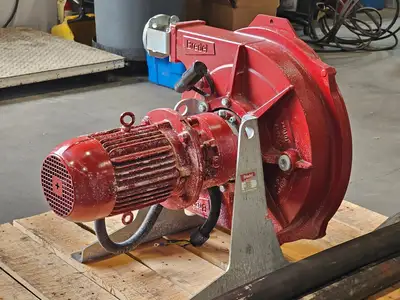

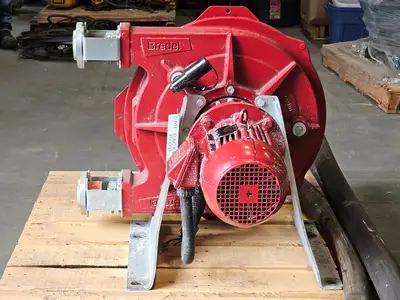

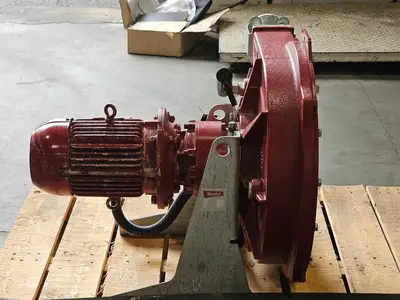

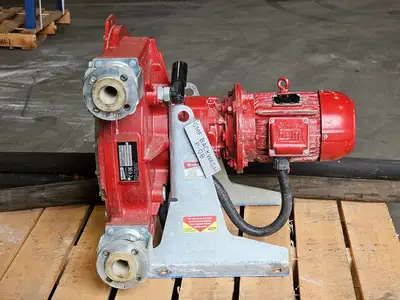

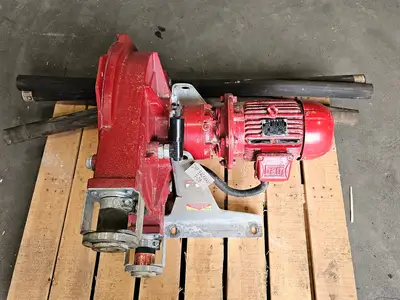

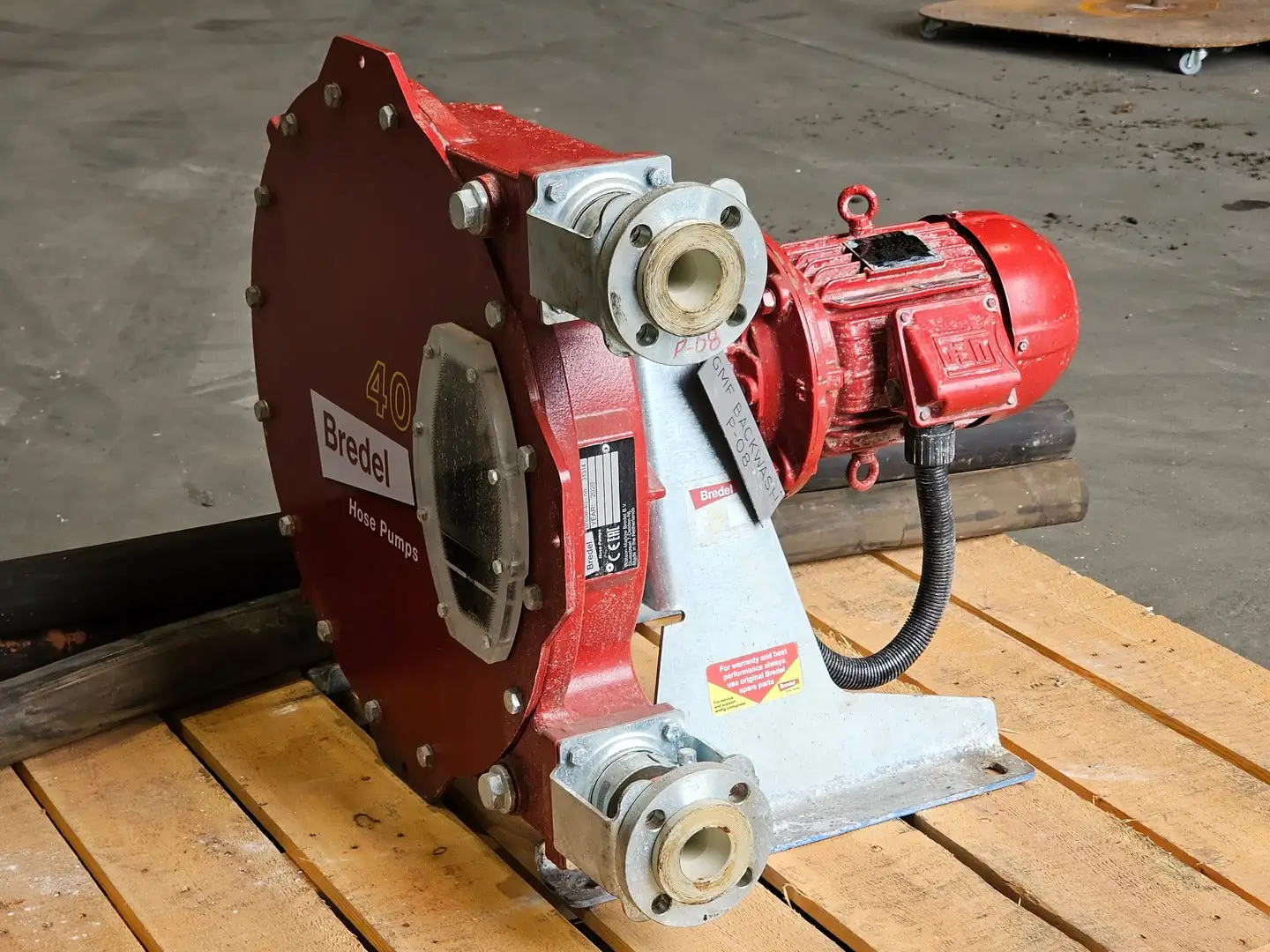

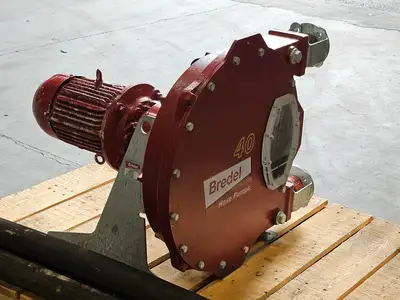

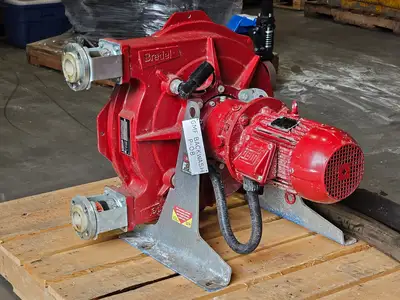

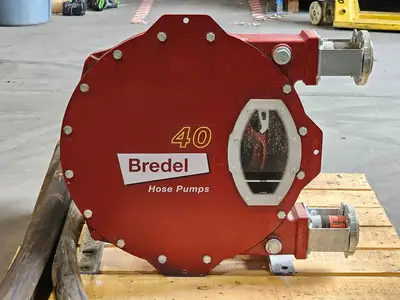

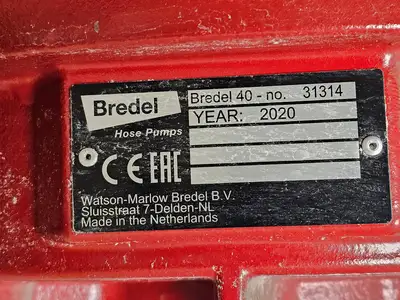

USED 2020 BREDEL 40

Horsepower: 3 hp
GPM: 26.3
Pump Material: Cast Iron
PSI: 232 psi
Seal Type: Neoprene, Nitrile
RPM: 75 rpm
Voltage: 460 volts
Phase: 3-phase

Max. Flow Rate Continuous: 5985 L/h (26.3 US GPM)
Max. Flow Rate Intermittent: 9576 L/h (42.1 US GPM)
Volume Per Revolution: 1.33 L
Max. Continuous Operating Speed: 75 rpm
Max. Intermittent Operating Speed: 120 rpm
Max. Inlet Pressure: 2.5 bar abs (38 psi abs)
Max. Suction Capability: 9.5 mWC (374 inWC)
Suction Capability (80% Flow Rate): 9 mWC (354 inWC)
Operating Temperature: -20 C to 45 C
Fluid Temperature: -20 C to 80 C
Min. Starting Torque: 320 N m
Weight: 180 kg (397 lbs)
Hose Lubricant Required: 5 L

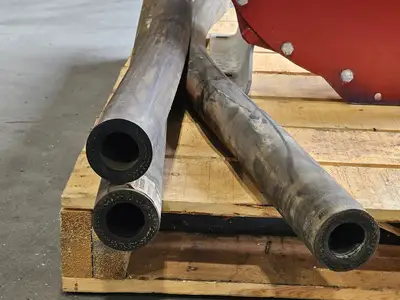

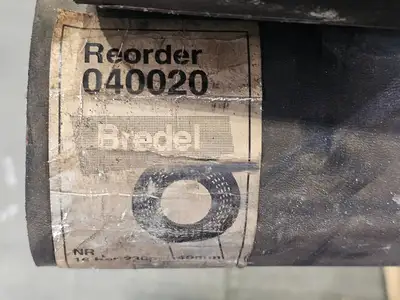

Compatible Hose Materials: CSM, EPDM, F-NBR, NBR, NBR for food, NR-Metering, NR-Transfer
Compatible Tube Materials: Bioprene
Flange Assembly Type: ANSI, DIN, JIS

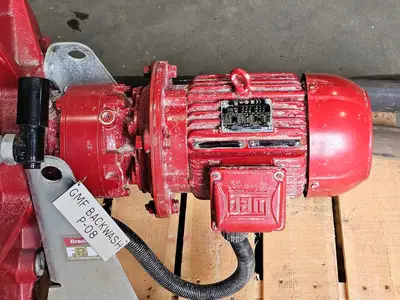

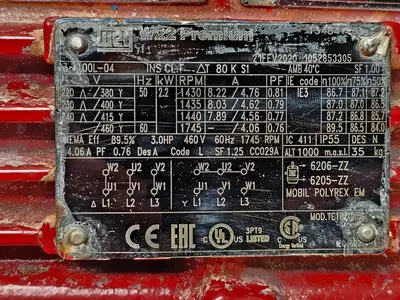

Motor Speed: 1750 rpm
Motor Current: 4.06 A
