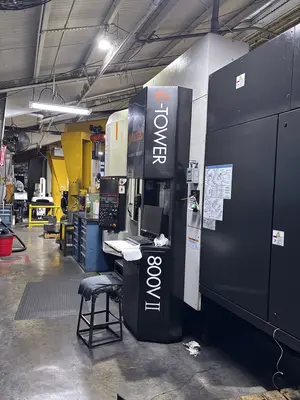

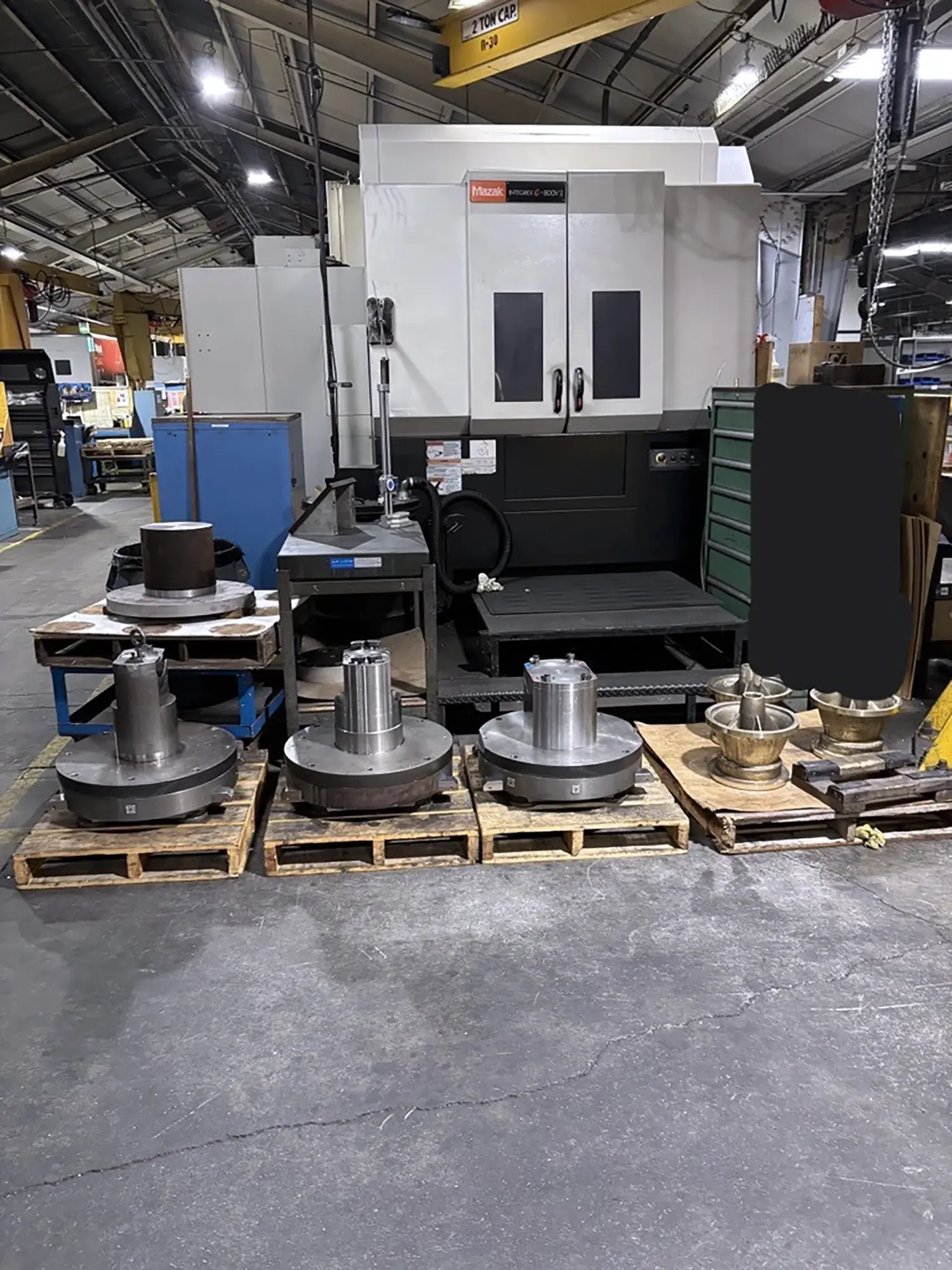

USED 2008 MAZAK INTEGREX E-800V/5 II
Overview
Used Mazak Integrex e-800V/5 II (2008) 5-axis CNC multitasking machine with Mazatrol Matrix control. Combines vertical turning and simultaneous 5-axis milling for heavy, complex components in aerospace, energy, oil and gas, and mold and die manufacturing. Achieve precision, reduced setups, and efficient DONE-IN-ONE production
Specs
CNC Control Unit: Mazatrol MATRIX
Chip Conveyor
Twin Pallet
Full Simultaneous 5 axis Machining
2 Chucks
B Axis
C Axis
X-Axis Travel: 43.31 inches
Y-Axis Travel: 31.50 inches
Z-Axis Travel: 35.43 inches
B-Axis (Universal Head): -30° to +120°
C-Axis (Table Rotation): 360° continuous rotation
Rapid Feed rates (X/Y/Z): 1,968 inches/min
Maximum Workpiece Size: Ø 28.74 inches diameter × 39.37 inches height
Maximum Workpiece Weight: 1,940 lbs (varies between 1,500 lbs and 1,940 lbs depending on configuration)
Table/Pallet Diameter: 24.02 inches
Pallet Changing System: Twin pallet
Milling Spindle Speed: 12,000 RPM
Milling Spindle Power: 30 HP
Turning / Table Speed: 1,000 RPM
Turning / Table Power: 40 HP
Spindle Taper: BT40 / CAPTO C
Automatic tool changer (ATC): 80 or 120 positions (Chain type)
Equipped With
CNC Control Unit: Mazatrol MATRIX
Chip Conveyor
Twin Pallet
Full Simultaneous 5 axis Machining
2 Chucks
B Axis
C Axis
