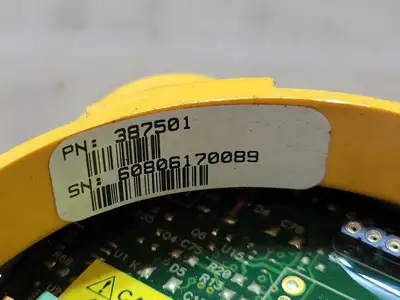

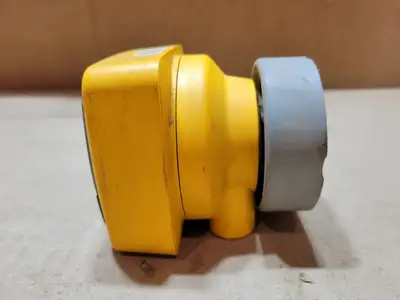

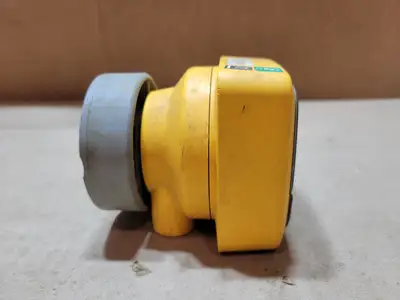

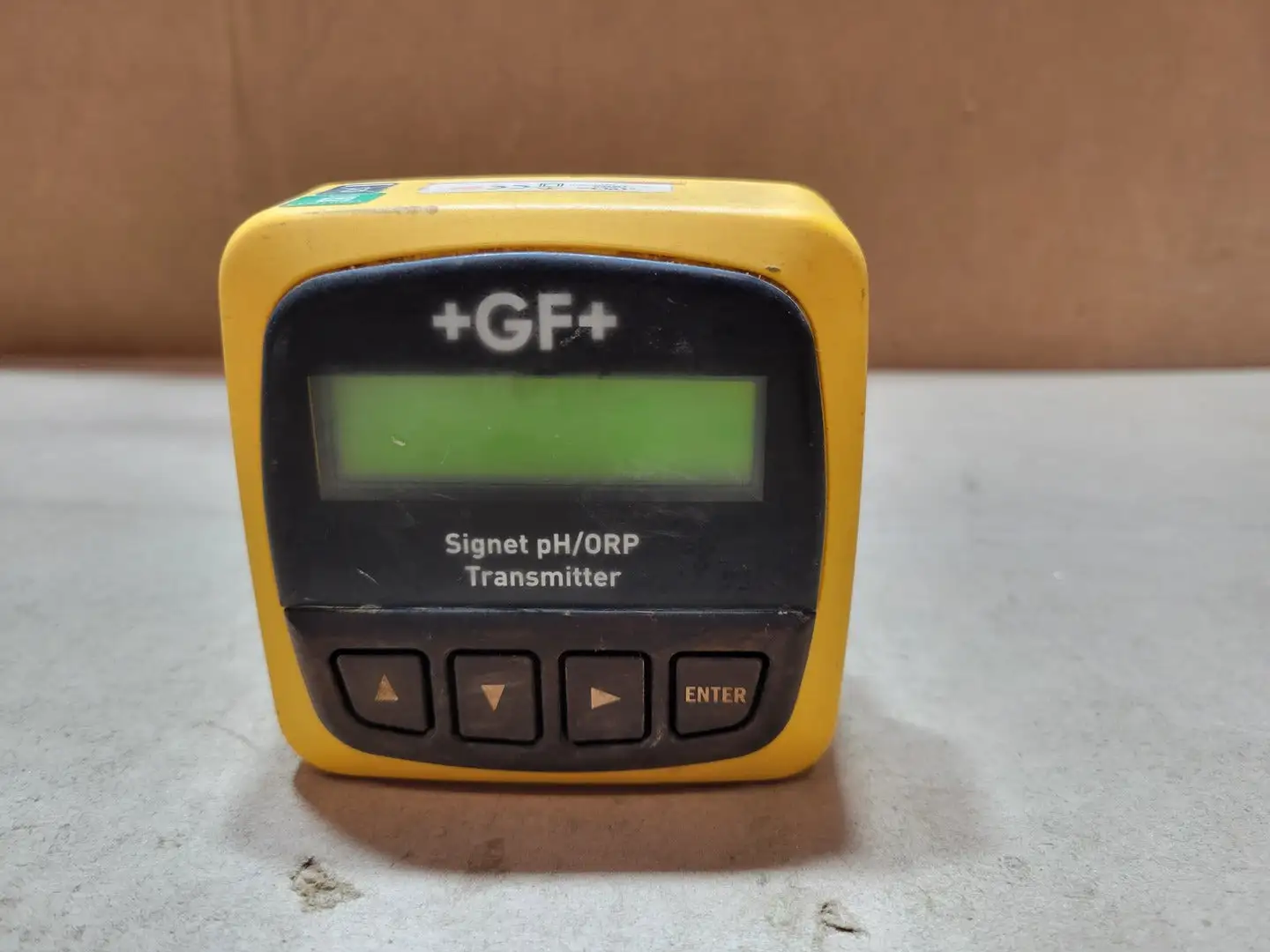

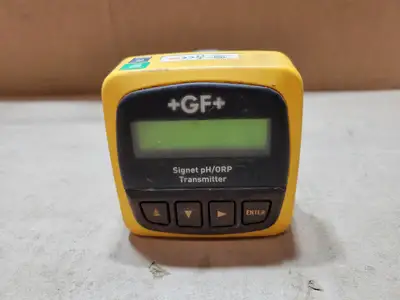

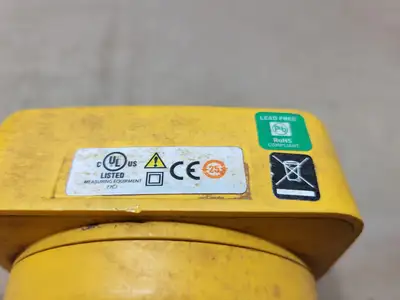

USED GEORG FISCHER 387501

Series: 8750 ProcessPro
Product Type: Digital pH/ORP Transmitter
Mounting Configuration: Field Mount
Sensor Inputs: 1
Compatible Sensors: GF Signet pH/ORP Electrodes with Compatible Preamplifier
pH Measurement Range: 0.00-14.00 pH
ORP Measurement Range: -1000 to +2000 mV
Measurement Accuracy: +/-0.03 pH / +/-2 mV ORP
Output Signal: 4-20 mA, Isolated
Additional Output: 1 Open-Collector Output
Power Supply: 12-24 VDC +/-5%, Regulated
Maximum Supply Current: 21 mA

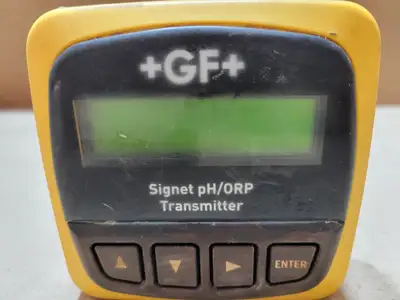

Display: 2 x 16 Character Alphanumeric LCD
Display Update Rate: 1 Second
User Interface: 4-Button Silicone Rubber Keypad
Current Output Accuracy: +/-0.03 mA at 25°C, 24 VDC
Current Output Update Rate: 0.5 Seconds
Operating Temperature: -10°C to +70°C (14°F to 158°F)
Storage Temperature: -15°C to +80°C (5°F to 176°F)
Relative Humidity: 0-95%, Non-Condensing
Enclosure Rating: NEMA 4X / IP65 Front
Housing Material: PBT
Display Window: Polyurethane-Coated Polycarbonate

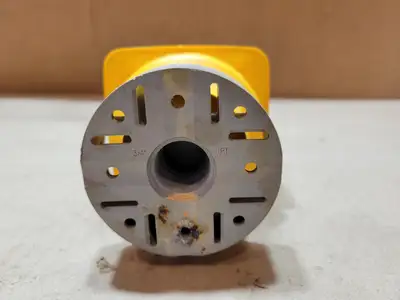

Mounting Connection: 3/4" NPT

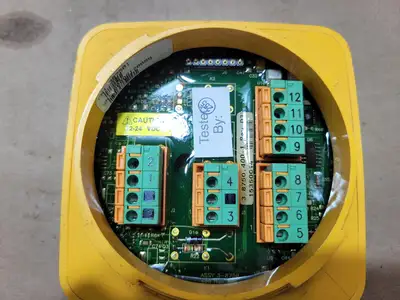

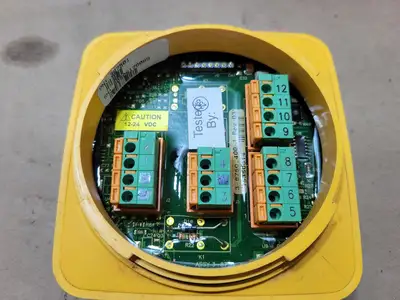

Electrical Connections: Removable Terminal Blocks
