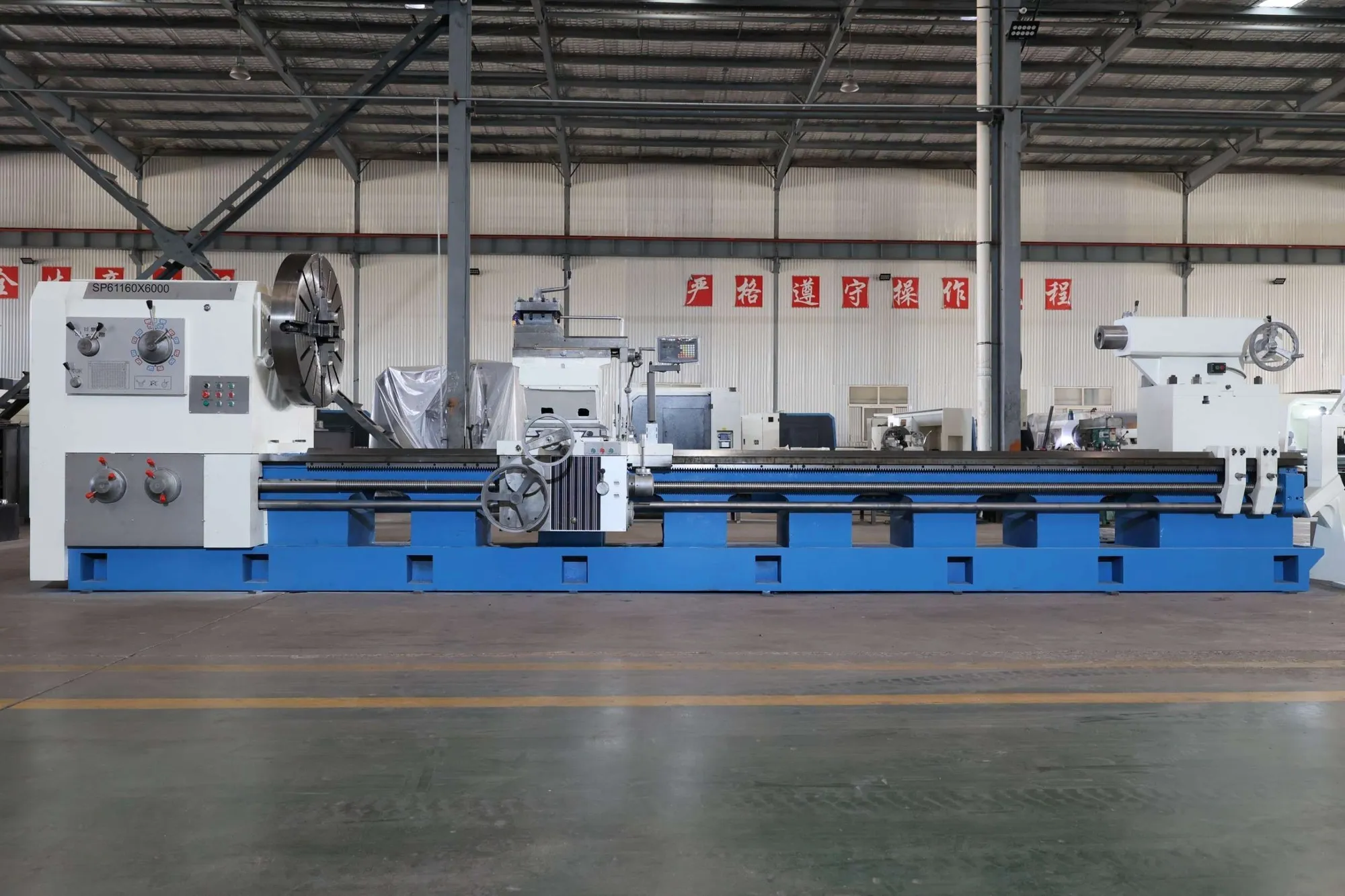

NEW ESP-MACHTURN SP61160 X 6000
Overview
Heavy Duty1600 swing machine This series of machine tools is suitable for paper, textile, rubber, energy and other industries. It is suitable for the processing requirements of large and very large cylinder, disc and rubber roller tired parts, and can also turn a variety of threads to meet the process requirements of drilling and boring, and has a good performance to price ratio compared with similar functional heavy products.
Center distance to suit purchasers requirements.
Specs
Max.swing over bed:1600mm
Max.swing over cross slide:1200mm
Max.length of work-piece:6 meters
Guideway width:755mm
Max. load capacity:6T
Spindle center height:800mm
Spindle bore:140mm
Spindle nose:A2-15
Spindle taper hole:Metric 150/1:20
Mode of spindle speed:3 gears, infinitely variable speed within gears
Range of spindle speed:Low: 10-50r/min Medium: 50-115r/min High:
115-300r/min
Power of spindle motor:22KW
Z axis feed grade /range:32/0.1-1.5mm/r
X axis feed grade /range:32/0.05-0.75mm/r
Carriage raid traverse speed:3740mm/min
Cross slid raid traverse speed:1870mm/min
Metric thread grade/range:23/1-15mm
Inch thread grade/range:22/28-2mm
Traverse of cross slide:820mm
Max. Traverse of turret:300mm
Tailstock quill Diameter:160mm
Tailstock quill Travel:300mm
Tailstock quill Taper:MT6
No.of turret tool stations:4-station tool holder
Chuck:K72-1250mm four-jaw chuck
Overall dimensions(L×W×H):9100×2300×2200mm
Machine weight:17.7T
Equipped With
Voltage:415V,50HZ,3 PHASE +Transformer or Client requirements.
1.2 steady rest (1 large).-Steady rest-Clamping range 70-470mm & Large steady rest-Clamping range 400-700mm
2.DRO for 2 axis
1000mm 4 jaw Chuck
Power Tailstock positioning.
