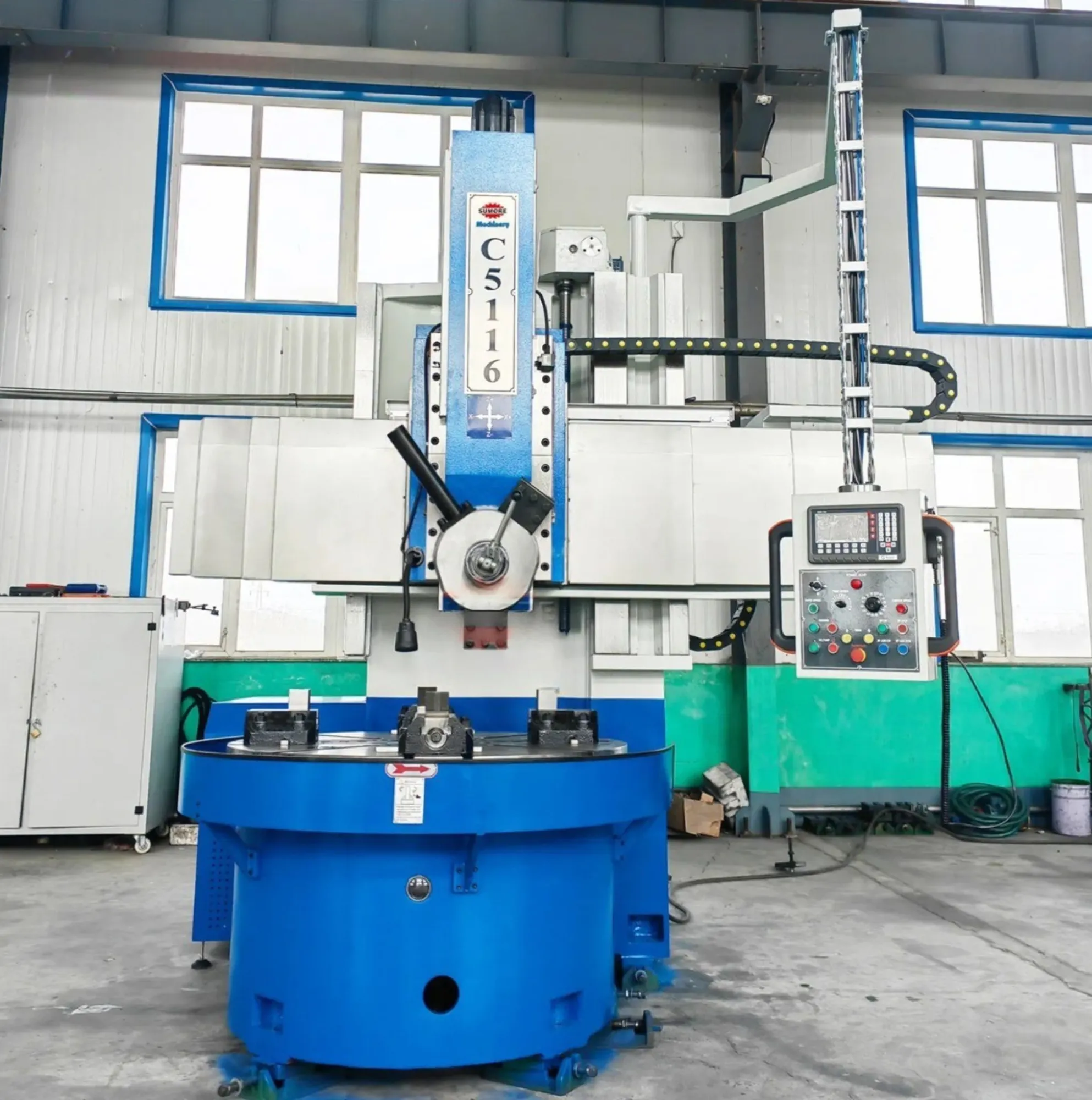

SP5116 single column vertical lathe, configuration of advanced & reliable mechanical & electrical components, structural performance is outstanding, strong and rigid.
Well built machine tool for heavy duty machining, worktable can carry 5t load, stable, high efficiency, safe, reliable.
Including Jaws, DRO
DVT system control
Fitted with 5-station tool turret
4-range infinitely variable speed; main motor AC30KW with
inverter
Beam protection guard
| Table Dia | 1,400 mm | 55.118" |
| Swing | 1,600 mm | 62.992" |
| Swing Options | Contact us for options. | Contact us for options. |
| Work Ht-U/R | 1,200 mm | 47.244" |
| Work Height Options | 1000/1200/1400/1600mm | 1000/1200/1400/1600mm |
| Power | 30 kW | 40.2 hp |
| RPM | 160 RPM | 160 RPM |
| Dimensions | 3000x2800x3300 mm | 3000x2800x3300 mm |
| Weight | 13 T | 13 T |
Maximum cutting diameter:1600 mm
Worktable diameter:1400mm
Maximum workpiece height:1200mm
Maximum workpiece weight: 5 t
Worktable speed range:5-160 r/min
Worktable speed series:16 levels
Worktable maximum torque1:25Kn/m
Tool rest feed series class:Stepless
Maximum cutting force of vertical tool rest:22 KN
Slider Horizontal stroke:915mm
Vertical stroke:800mm
Side tool rest horizontal stroke:620mm
Side tool rest vertical stroke:650mm
Crossbeam stroke:850mm
Tool rest feed range:0.1-500mm/min
Tool rest fast moving speed:2000mm/min
Crossbeam lifting speed:440mm/min
Tool bar cross-section size (length x width):30x40mm
Main motor power:30kW
Machine tool dimensions:3000x2800x3300mm
It is most likely machine will have to be delivered to our facility for assembly. Price to be negotiated.
Machine tool weight (approx.):13T
Jaws
DRO
