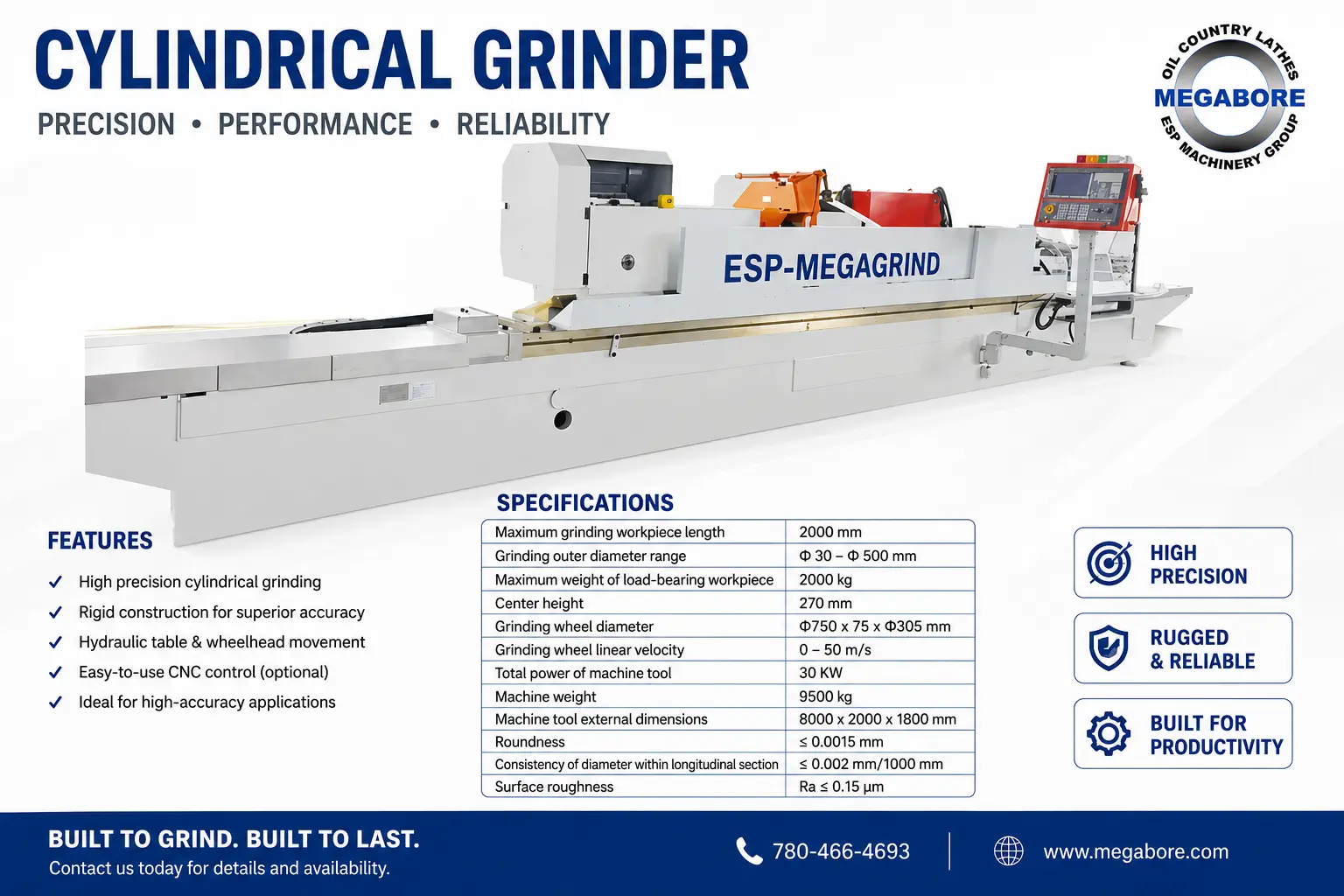

NEW ESP-Megagrind CNC MK1350 500x2000 CNC
Overview
Description
CNC Cylindrical Grinder Machine MK1350 High Precision Universal
Automatic Metal Grinding Machine 2000mm SP1350 With
FANUC CNC System with Manual Guide I function
The ESP-Megagrind CNC A well designed CNC controlled cylindrical grinder equipped with automatic feed of grinding wheel, it can perform coarse, fine, and spark free grinding, and can grind shaft rollers with arc and cone surfaces. Equipped with automatic dressing and compensation of grinding wheels, as well as safety interlock self-protection function with automatic cyclic action.
Specifications
| Swing | 500 mm | 19.685" |
|---|---|---|
| Centers | 3000 and 4000 | 78.74" |
| Plain or Angle Head | Plain | Plain |
| Grinding Wheel Dia. | 750 mm | 29.528" |
| Wheel Power | 40 hp | 29.8 kW |
| Plunge | No | No |
| Gauging | Yes | Yes |
| Dresser | Yes | Yes |
| Control | CNC (Fanuc 0i-TC CNC Control (incl. manual guide i)) | CNC (Fanuc 0i-TC CNC Control (incl. manual guide i)) |
| Dimensions | See Specs | See Specs |
| Weight | 9500kg 12500kg 15500kg | 9500kg 12500kg 15500kg |
Maximum grinding workpiece length: 2000mm (3000mm and 4000mm BC Available).
Grinding outer diameter range:Ф 30-Ф 500mm
Maximum weight of load-bearing workpiece:2000kg
Center height:270mm
Grinding wheel diameter:Ф750 x 75 x Ф305mm
Grinding wheel linear velocity:0-50m/s
Total power of machine tool:30 KW
Machine weight:9500kg
Machine tool external dimensions:8000*2000*1800 mm
Roundness:≤0.0015mm
Consistency of diameter within longitudinal section:≤
0.002mm/1000mm
Surface roughness:Ra≤0. 15μm
