USED EMCO MAXXTURN 45
Specs

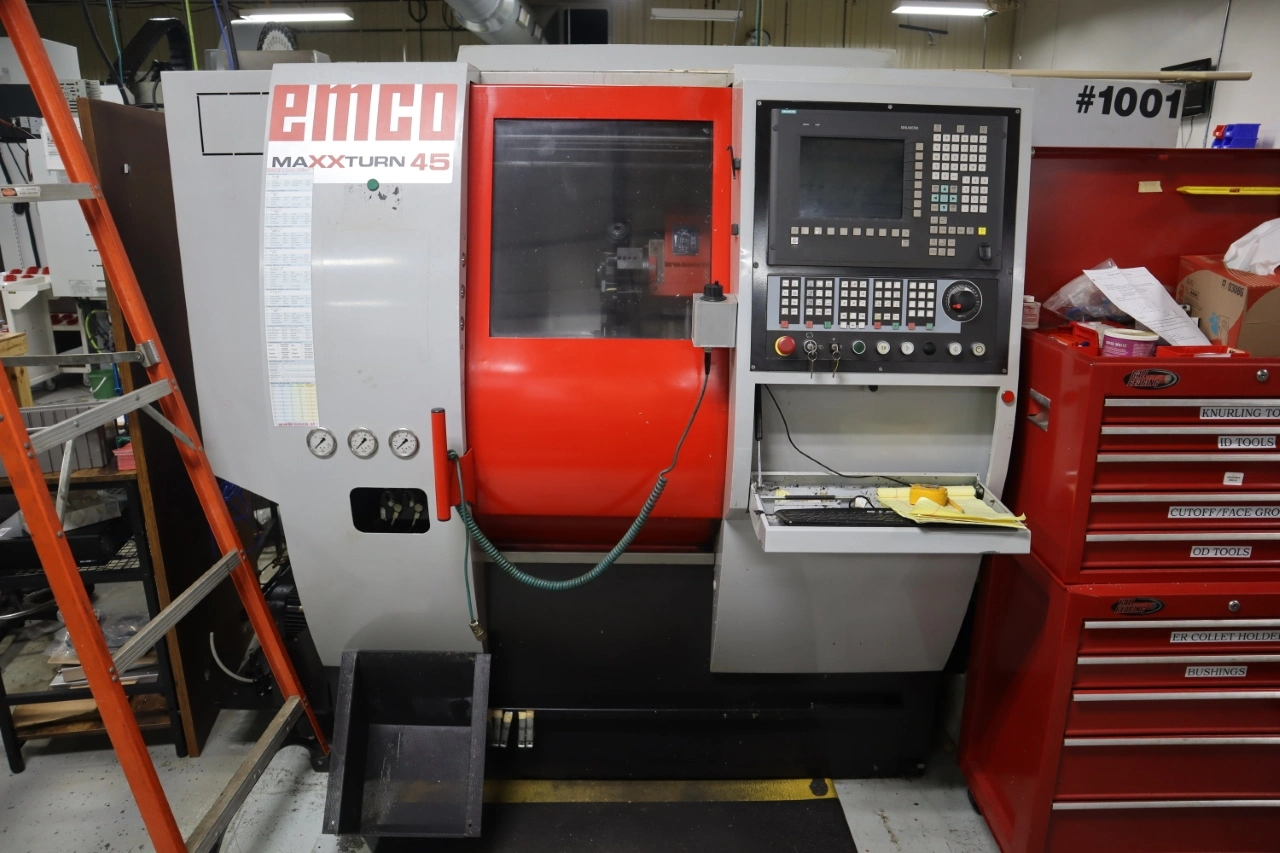

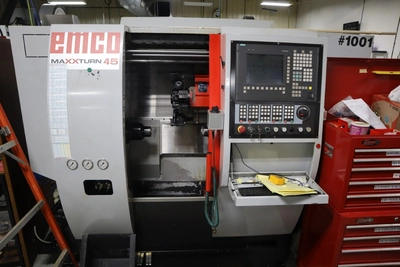

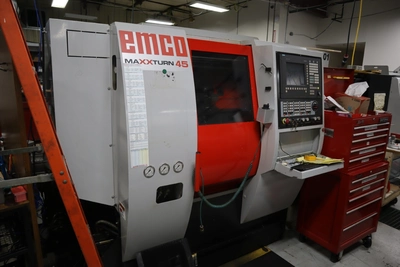

Lot 165: EMCO MaxxTurn 45 CNC Turninig Center, Main and Sub-Spindle, 12 Station Turret with Live Milling & Y-Axis, Chip Conveyor, LM 800 Bar Feed
Main Unit Approx Weight: 8800.00 lbs
Main Unit Dimensions (in inches): Length: 110.00" Width: 69.00" Height: 79.00"
Components:

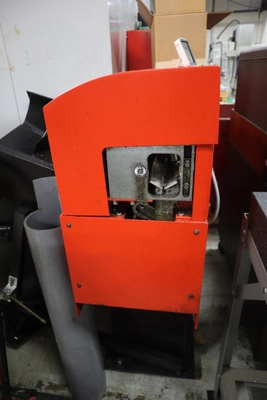

Bar Feed: Length: 47.00" Width: 18.00" Height: 53.00"

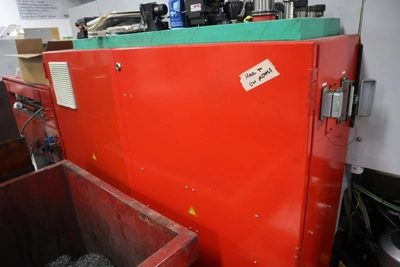

Chip Conveyor: Length: 142.00" Width: 18.00" Height: 66.00"

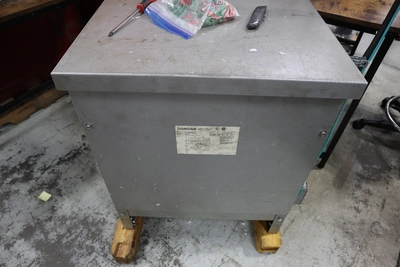

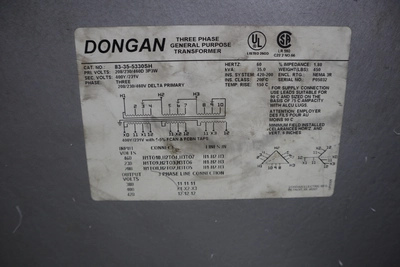

Transformer: Length: 25.00" Width: 21.00" Height: 29.00"

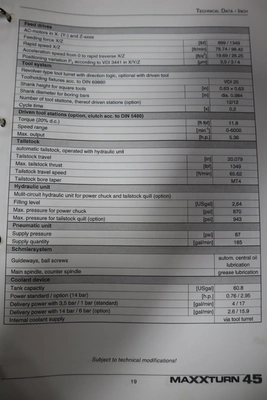

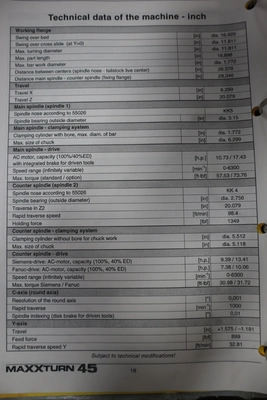

Specs:

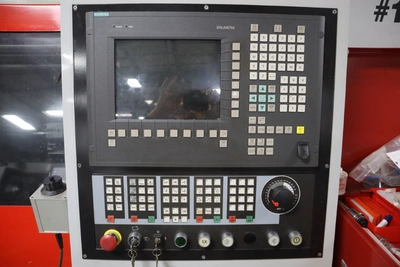

Control: Siemns Sinumerik CNC Control
Swing Over Bed: 16.9"
Swing Over Saddle: 11.81"
Max Turning Diameter: 11.81"
Max Turning Length: 18.89"
Max Bar Diameter: 1.77"
Spindle Speeds: 0-6300 RPM
Spindle Nose: KK5

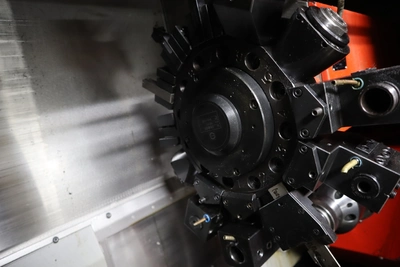

Turret Capacity: 12 Stations (All Live)
Turret Travles, (X/Z): 6.3" / 20.07"
Turret Travel (Y-Axis): + 1.575" / - 1.181"
Live Tool Speed: 0-6000 RPM
Tailstock Quill Taper: MT4
Tailstock Quill Travel: 20.07"
Rotary Tool Drive: 5.36 HP
Seller Company: Medfab Precision Solutions
Seller Contact: Jesse Dilley Phone: (952) 469-5095
Location Contact: Jesse Dilley Phone: (952) 469-5095
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Tuesday, November 17, 2026 and Friday, December 4, 2026
Equipped With

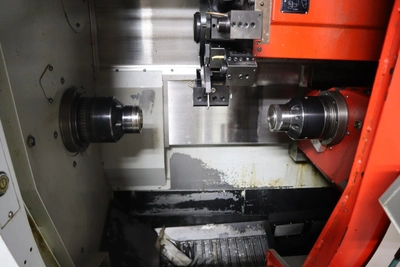

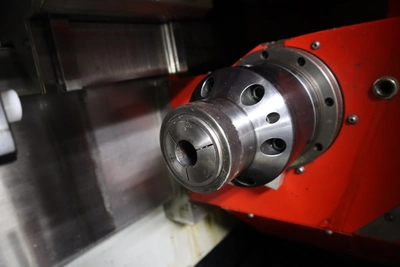

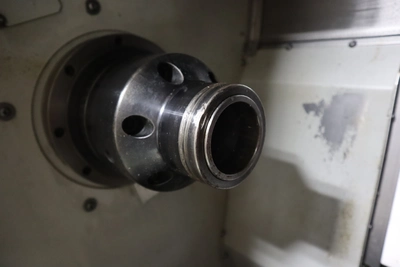

Siemens Sinumerik CNC Control, 12 Station Turret with Live Milling and Y-Axis, Main Spindle 6300 RPM, Sub-Spindle 0-6300 RPM, Collet Chucks, C-axis on Main and Sub, LM 800 Bar Feed, Coolant Pump and Tank, Assorted Live Tooling and Static Tool Holders, Manuals, Keys, Parameters, Machine Pads, Transformer
