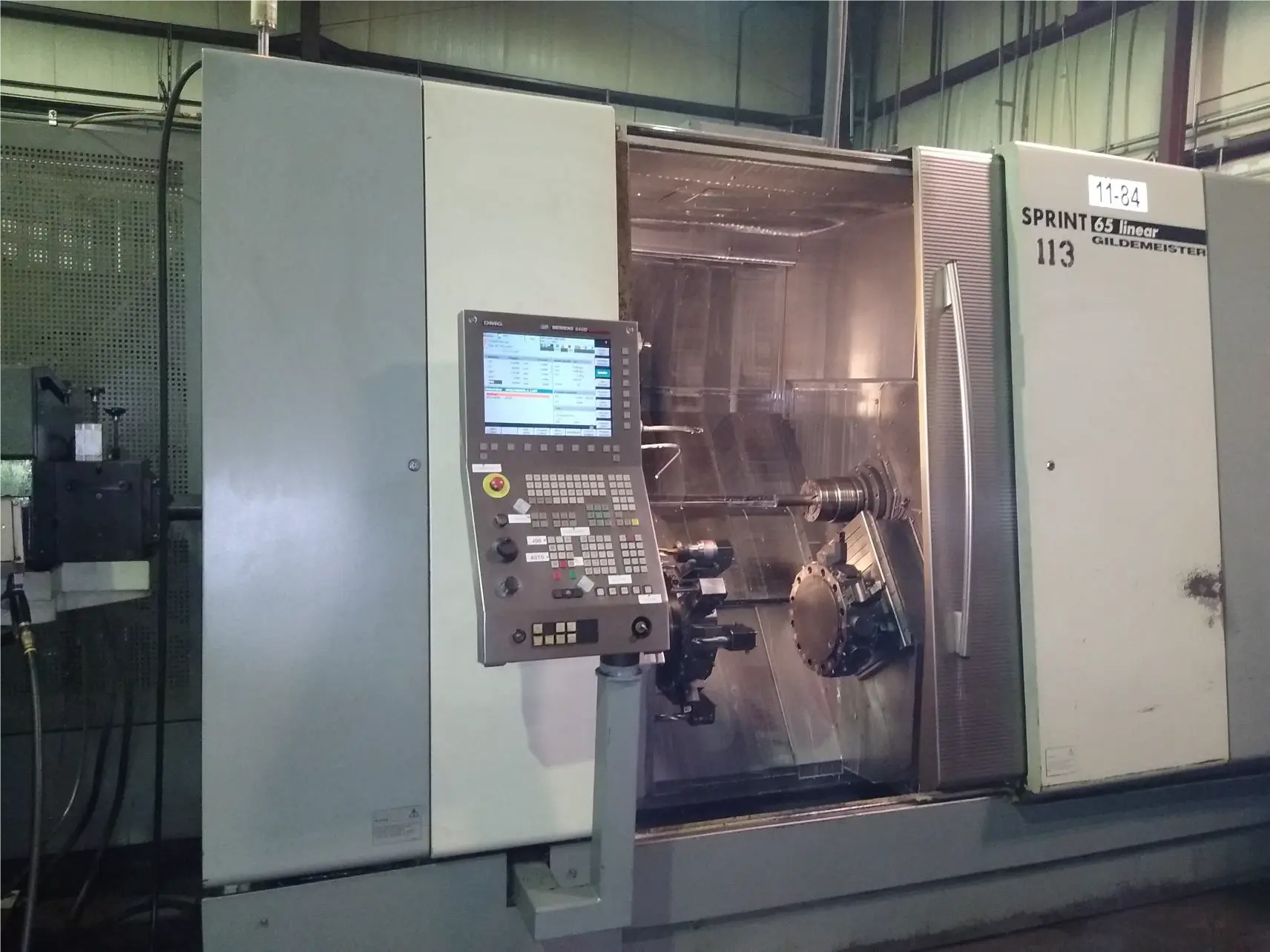

USED 2006 GILDEMEISTER SPRINT 65 LINEAR
Overview
Twin Spindle, Upper Turret, (2) Lower Turret, Siemens 840D, Chip Conveyor with Integrated High pressure Coolant, (2) Machines Available
Specs
Gildemeister 65 Linear Multi Axis CNC Lathe (2006)
Carriage 1:Longitudinal travel (Z-axis) 220 mm
Transversal strocke (X axis) 165 mm
Carriage 2:Longitudinal travel (X-axis) 125 mm
cross travel (Z-axis) 165 mm
Y axis 80(+50/-30) mm
Turret slide: number 3
C-Axis for Main and Counter Spindle
Y-Axis for Slide 3
Bar Capacity- 65mm
Saco MPT65/140 Collet for Axial movement
Main Spindle 5000 RPM
12 Rotating Tools each Station
Max Tool Speed 4000 RPM
VDI 30 Tool System
Hydraulic High Pressure and Filtering System
Swarf Conveyor
Workpiece Unloading
Equipped With
DMG Siemens 840D, Twin Spindle, Upper Turret, (2) Lower Turret, FMB Turbo 5-65 Barfeed, Chip Conveyor with Integrated High pressure Coolant
(2) Machines Available
