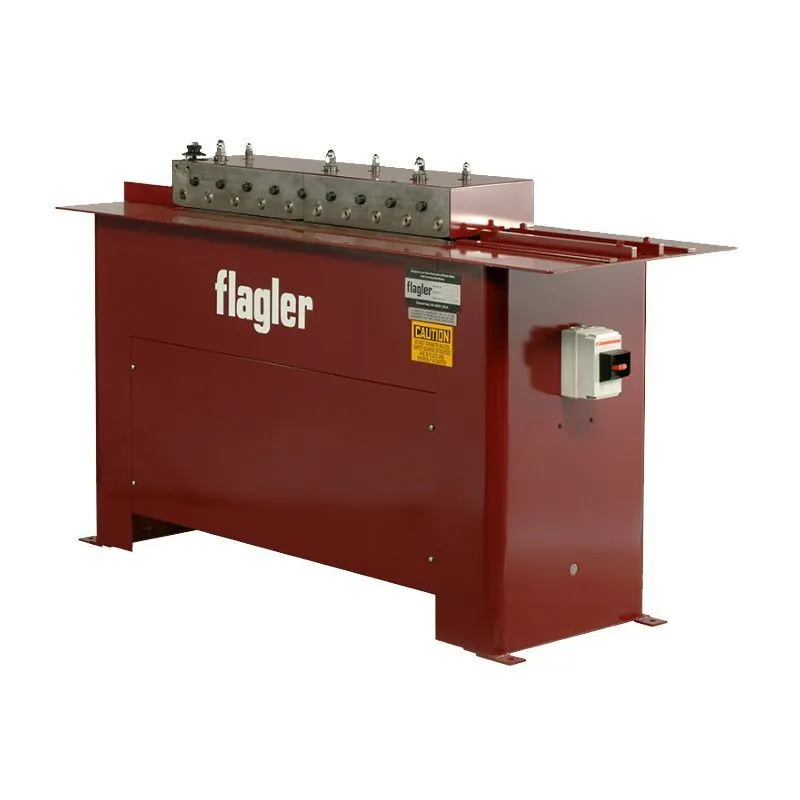

The Flagler 20 gauge high speed button lock has a 5 HP, 230/3/60/1800 RPM motor. Equipped with built-in Male and Female Button Lock Rolls. Manufactured in Michigan, USA.
| Capacity | 20 ga | 20 ga |
| Number of Stations | 10 | 10 |
| Depth of Pocket | 9/16 in. | 9/16 in. |
| Gear Ratio | 1 to 1 | 1 to 1 |
| Power | 5 hp | 3.7 kW |
| Electical | 230v, 3-Phase/60, 1800 RPM | 230v, 3-Phase/60, 1800 RPM |
| Feeding Speed | 100 fpm | 100 fpm |
| Drive | Double Matched V-Belt | Double Matched V-Belt |
| Feed table height | 35-1/8 in. | 35-1/8 in. |
| Shaft Diameter | 1.75" | 44.45 mm |
| Base | Arc Welded Steel Heavy Top Plate | Arc Welded Steel Heavy Top Plate |
| Dimensions | 69 L x 24 W x 42 H in. | 69 L x 24 W x 42 H in. |
| Weight | 1,000 lbs. | 1,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
