NEW 2006 MARVEL 2125A-PC3S-60

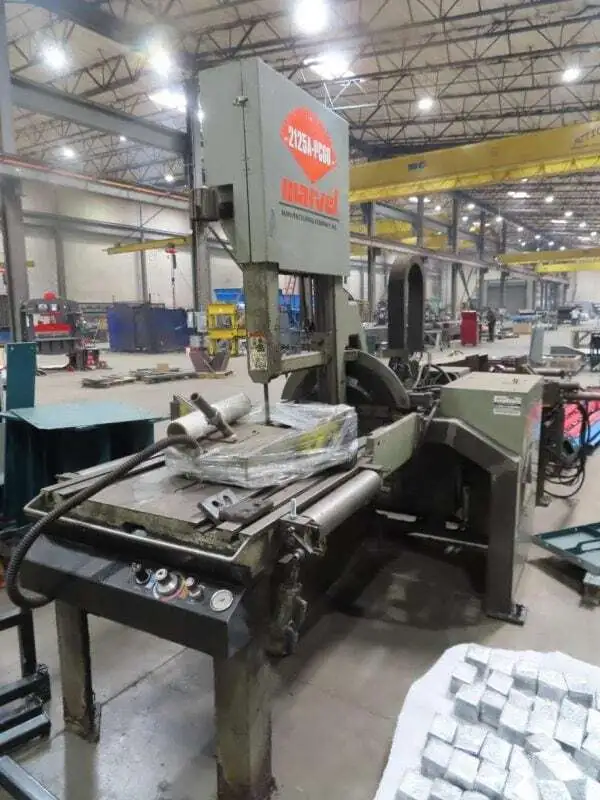

2006 MARVEL AUTOMATIC VERTICAL TILT-FRAME BANDSAW Model 2125A-PC3S-60
The MARVEL AUTOMATIC VERTICAL TILT-FRAME BANDSAW Model 2125A-PC3S-60 is a high-capacity, automatic band saw with a tilting column for miter cutting. It features a PC3 Programmable Control., a 20" x 25" cutting capacity, and a 210" blade. The saw is equipped with a hydraulically controlled blade tension system, an automatic bar feed with a 48" stroke, and a tilting column that can miter cut up to 60 degrees left and right.

Specifications:

– PCII Micro-Process Control
– Operator Push Button Panel
– Rectangular Cutting Capacities: – @ 90°: 20″ x 25″
– @ 45°: 20″ x 17″
– @ 60°: 20″ x 11.25″
– Round Cutting Capacities: – @ 90°: 20″
– @ 45 Degree: 17″
– @ 60 Degree: 11.25″
– Blade Size: 1.25” x 0.042” x 17’-6”
– Blade Speed: 30 – 650 FPM
– Feed Force: 0 – 350 lbs.
– Band Wheel: 23.00” Ø
– Table Load Capacity: 8,000 lbs.
– Max. Vise Opening: 20.25”
– Coolant System:
– Capacity: 60 Gallons
– Motor: 0.25 HP
– Hydraulic System:
– Capacity: 10 Gallons
– Drive Motor: 3 HP
– Pump Capacity: 7.8 GPM
– Work Height: 38.00”
– Feed Table:
– Load Capacity: 14,000 lbs.
– Shuttle Stroke: 24.00”
– Column Tilt
– Single or Automatic Cycle
– Column Forward & Retract
– Extra Blades
– Spare Bearing Parts
Electrics: 460 Volt, 3 Phase, 60 Cycle, 19.2 FLA

– Extra Blades
– Spare Bearing Parts
