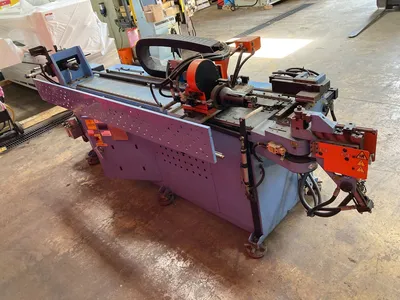

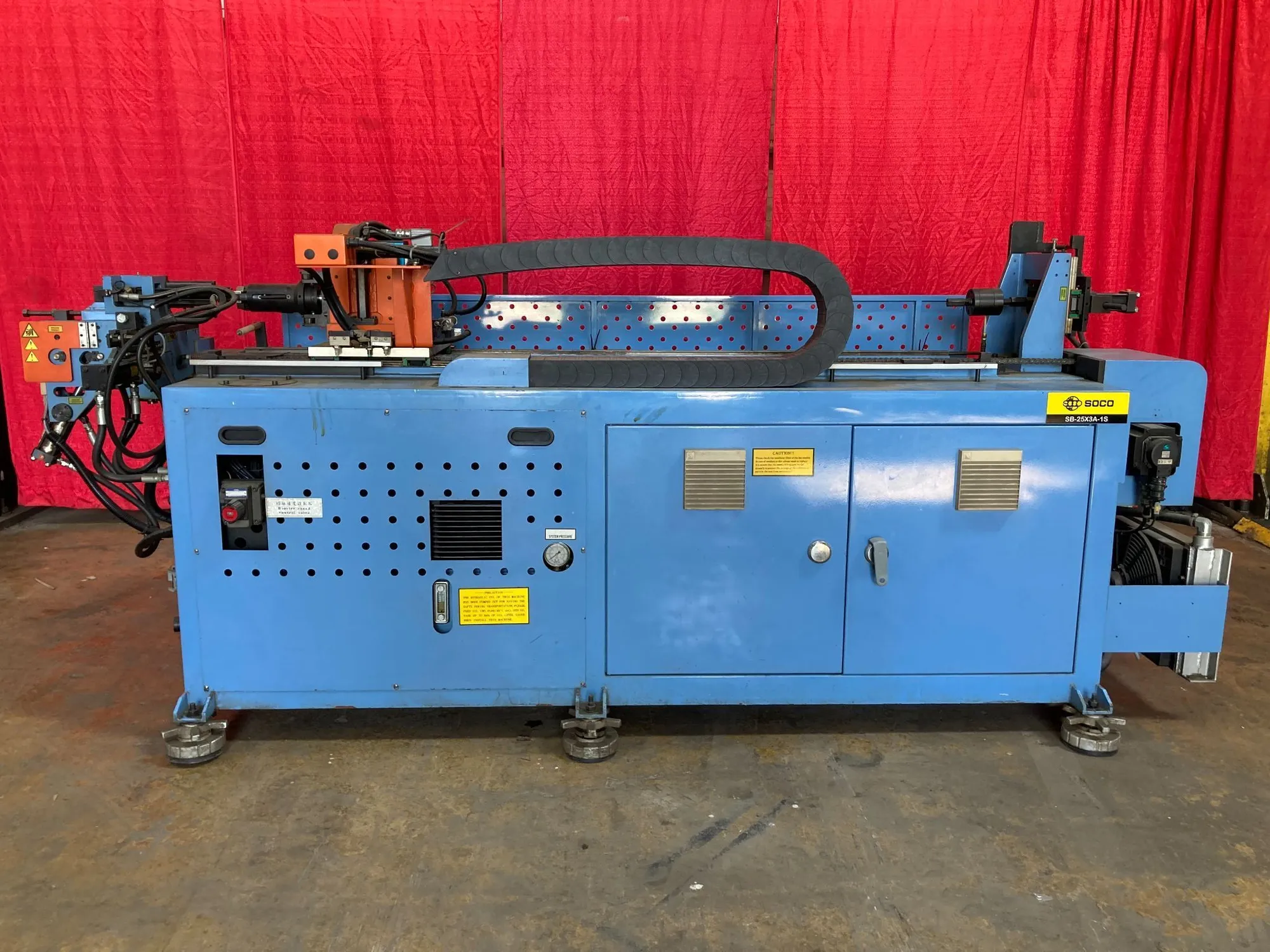

USED 2008 SOCO SB-25X3A-1S

FEATURES:
- 200 degree/sec Bending speed
- 300 degree/sec Plane Positioning speed
- 40 inch/sec Feeding Speed
- Mandrel Extraction System
- Mandrel Lubrication System
- Pressure Die Assist System

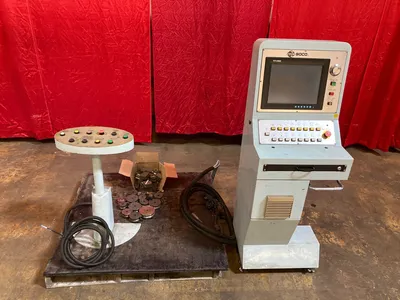

- Industrial PC with Touch Screen
- Mobile Push Button Operation Stand

ATTACHMENTS:
- Miscellaneous tooling

MODEL: SB-25X3A-1S
YEAR: 2008

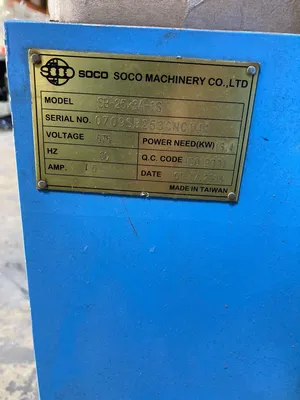

SERIAL#: 0709SB253CNC141
CAPACITY: 1.0" OD x 0.045" WALL (1.5D CLR)
MAX. TUBE O.D. MILD STEEL: 0.750" x .090" (1.5D CLR)
MAX. TUBE O.D. STAINLESS STEEL: 0.750" x .059" (1.5D CLR)
MAX. TUBE LENGTH WITH MANDREL: 94" over mandrel (70" Feed Stroke)
MAXIMUM BENDING RADIUS: 4”
MAXIMUM BENDING ANGLE: 190 DEGREES
MAIN MOTOR: 5 HP
WEIGHT: 3,550 LBS
DIMENSIONS (LxWxH): 127" x 42" x 56"
