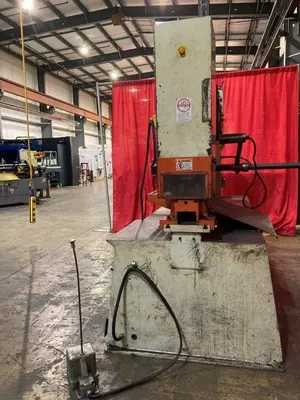

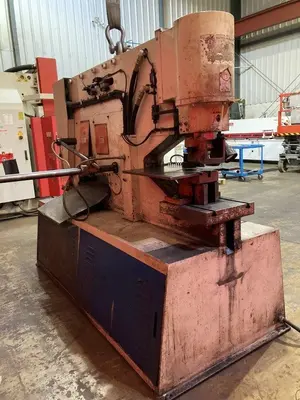

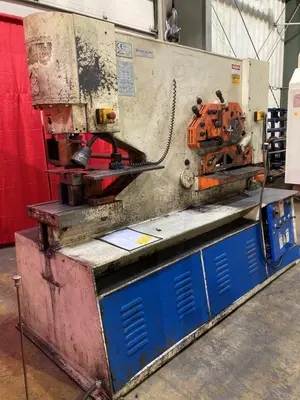

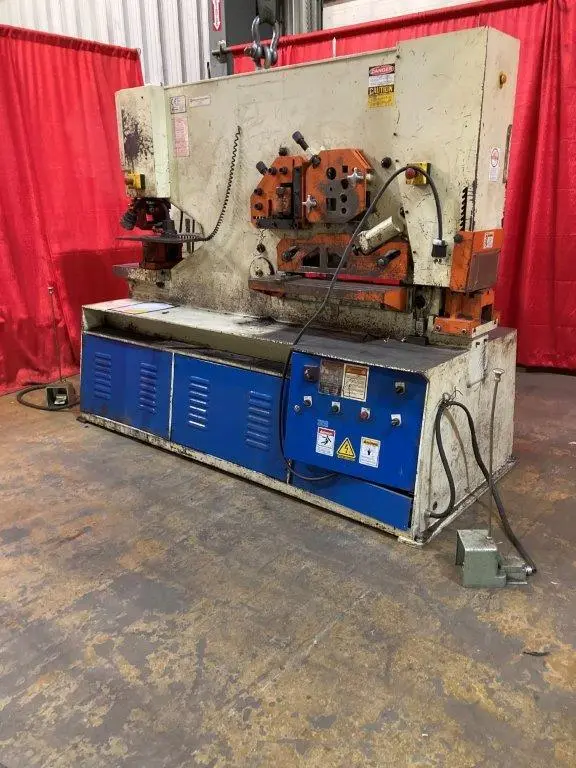

USED 2014 FABMASTER IW-135SD

FEATURES:

- Work light
- 2 Cylinder design
- Punch stripper
- Electric length gauge

SPECIFICATIONS:

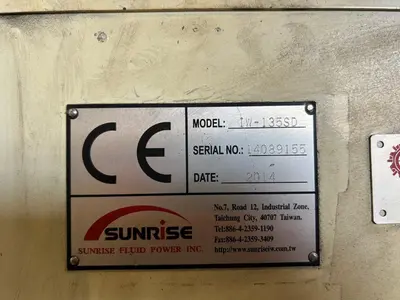

Model: IW-135SD-U
Serial: 14089155
Year of manufacture: 2014
Maximum punching pressure: 135 ton
Maximum capacity (dia. x thickness): 1-1/4”x1-1/16”, 2" x 11/16” (mild steel)
Throat: 20"
Maximum stroke length: 4”
Cycle/Min (3/4"): 28
Flat bar shear: 24”x11/16”(16" x 1")
Blade length: 24-3/8"

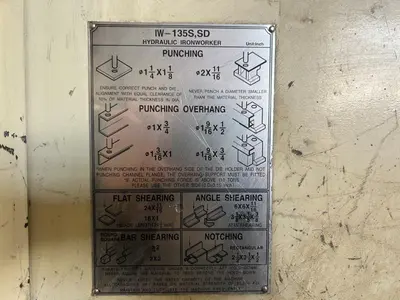

ANGLE SHEARING
At 90o shearing: 6" x 6" x 11/16"
At 45º shearing: 3-1/8”x3-1/8”x3/8”

BAR SHEARING
Round bar shear: 2"
Square bar shear: 2” x 2"

NOTCHING
Rectangular Notcher (w x d x t): 2" x 3-1/2" x 1/2”
Electrics : 15hp
Weight (net): 8,710 lbs
Dimensions: 98” x 35” w x 73” h
