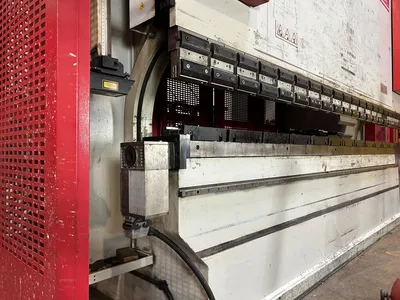

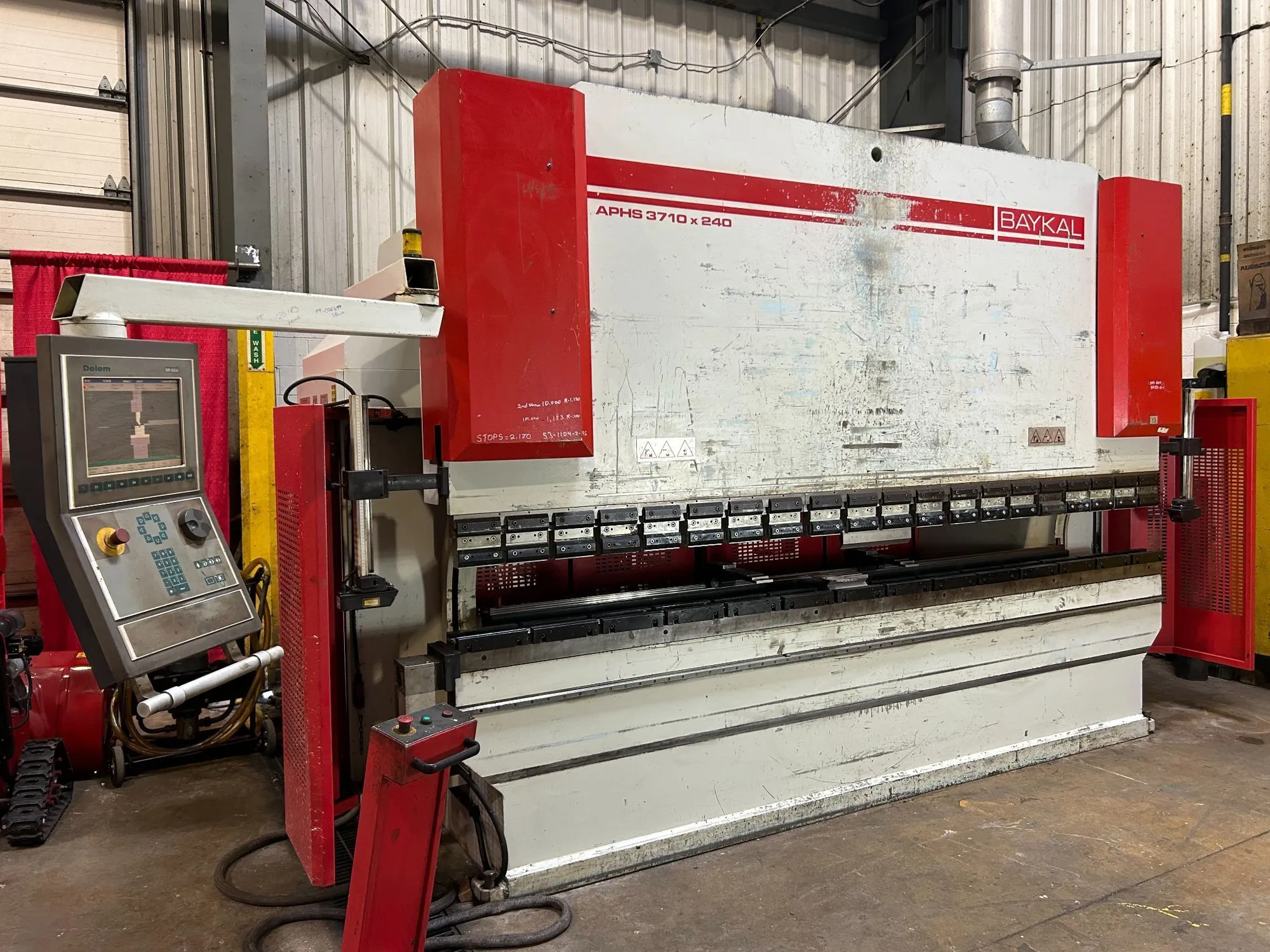

USED 2011 BAYKAL APHS-37240

FEATURES:
- Lazersafe safety beam
- Side guards
- Delem DA-66W Control
- 5 Axis CNC Machine (Y1, Y2, X, R) plus CNC Crowning
- 2 Front sheet support on linear rails
- Rear sliding safety interlock guard

SPECIFCATIONS:

Serial # : 17589
Bending Capacity Tons: 264
Overall Bend Length: 12’1”
Distance Between Side Housings: 10’7”
Open Height above bed: 20.8 inches
Stroke Length: 10.2 inches
Closed Height: 10.6 inches
Table Width: 3.5 inches
Speed:
Advance: 330 “/min
Pressing (Variable): 23.6 “/min
Return: 260 “/min
Throat Depth: 16.1 inches
Bed Height Above Floor: 34.6 inches
Bed Projection Below Floor: 0 inches
Motor HP: 30 HP
Oil Tank Capacity: 55 Gallons
Machine Height: 114 inches
Machine front to back dimension: 64 inches
Machine weight: 29,700 lbs.
Year: 2011
Machine left to right dimension: 184 inches
