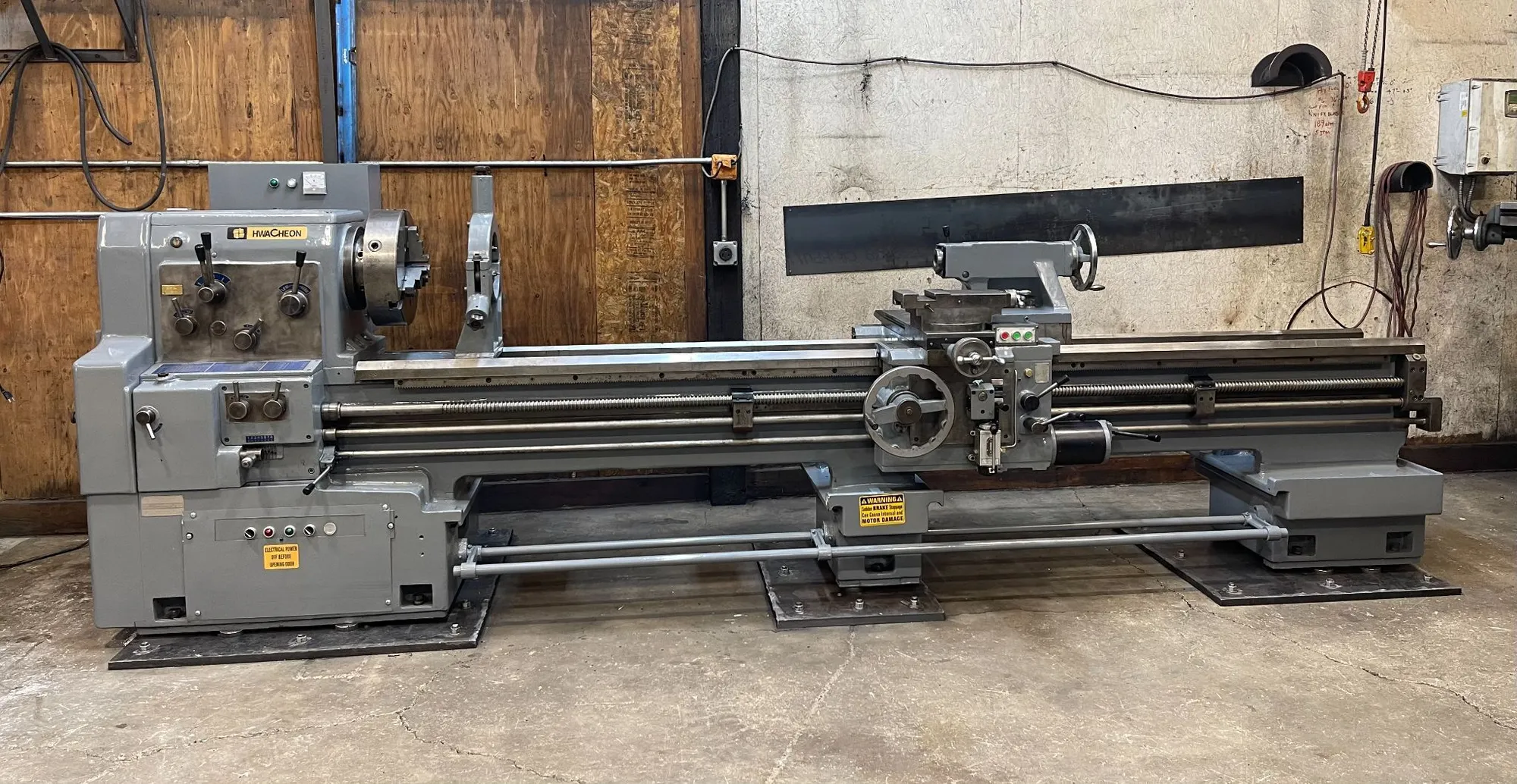

Whacheon Model WL-630x3000 24" x 120" Engine Lathe
| size | 24" x 120" | 24" x 120" |
| Swing | 24" | 609.6 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 3" | 76.2 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,205 RPM | 1,205 RPM |
| Swing Over Cross Slide | 16.25" | 412.75 mm |
| Dimensions | 180"x W-50"x H- 55" | 180"x W-50"x H- 55" |
| Weight | 9000 | 9000 |
Whacheon Model WL-630x3000 24" x 120" Engine Lathe
Model: WL-630x3000,
SWING
24 IN
CENTERS
120
MOTOR
15HP 220--440 Volts 3 ph
SPINDLE: 3" Hole
SPEEDS:
(12) 27----1205 RPM
THREADS
Inch / metric
Inch Threads: 2-80 TPI
Metric Threads: 0.5-14mm Pitch
TAIL STOCK
#5 Morse taper
DIMENSIONS
floor space L-180"x W-50"x H- 55"
WEIGHT
9,000 LBS
Swing Over Cross Slide: 16.25"
Swing Over Gap: 33.25"
Cross Slide Travel: 14.16"
Width of Bed: 18.12"
Length of Bed: 171.25"
Tailstock Taper: MT #5
Taper of Spindle Bore: MT 7
Number of Spindle Speeds: 12
Electrics 220 V / 3 Phase 60 Cycle
5” Diameter Roller Bearing Capacity Steady Rest
Tailstock
Power Rapid Traverse
15" 4 Jaw Chuck
16" 3 Jaw Chuck ( with 2 piece top jaws )
