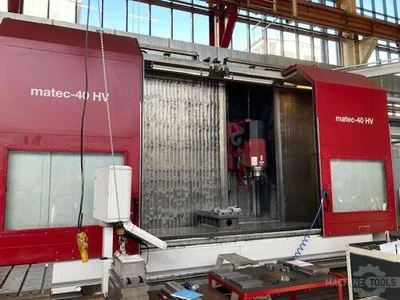

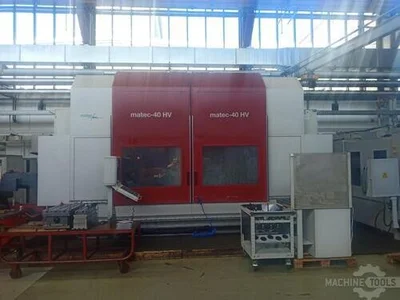

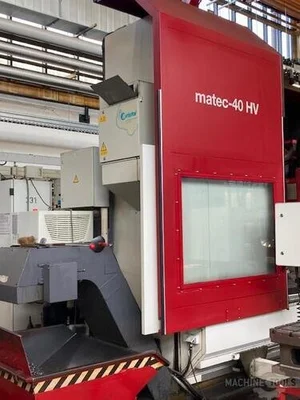

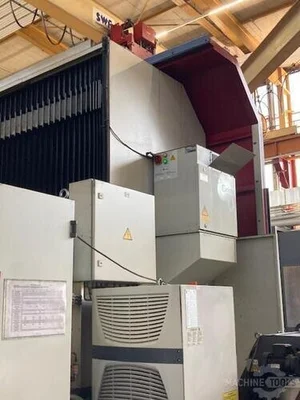

USED 2008 MATEC 40 HV

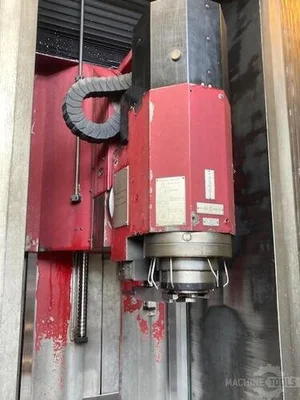

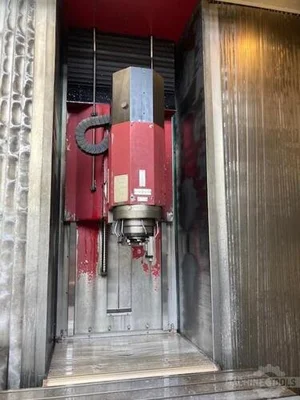

1 Axis CNC Swivel head, infinitely variable
Axis drive with ball screw drive
Roller linear guides in all axes
Direct path measuring systems
Full work area encosure with roof
Chip conveyor
Coolant unit
Measuring probe Renishaw RMP60

X - Travel: 3000 mm
Y - Travel: 800 mm
Z - Travel: 1100 mm
B - Axis: - 3 to + 105 °
Table Length: 3500 mm
Table Width: 835 mm
Table load: 3500
Feed rate X-Axis: 48000 mm/min.
Feed rate Y-Axis: 80000 mm/min.
Feed rate Z-Axis: 48000 mm/min.
Spindle Taper: 50 ISO/Bt/Mk
Power on spindle: 68 kW
Speeds / ranges: 8000 Rpm
ATC / revolver: 40
Coolant through spindle / Bar: 25
Number of controlled axis: 4
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6500 mm
Width: 3600 mm
Height: 3940 mm
Weight: 19000 kg
