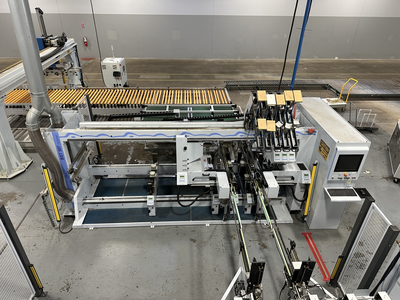

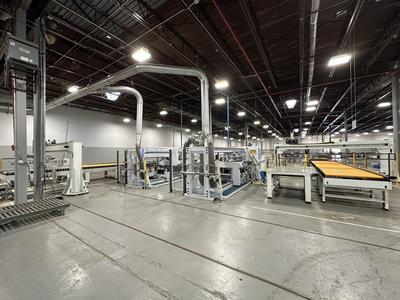

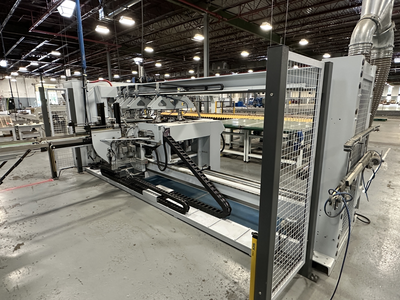

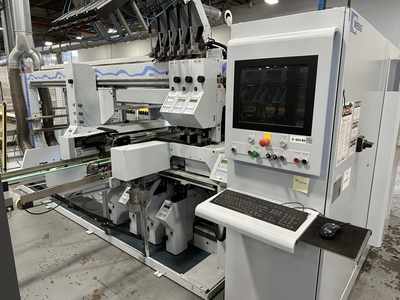

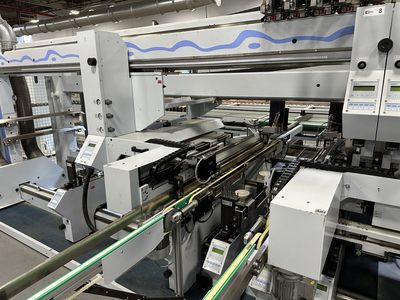

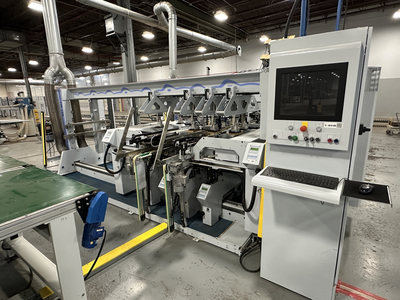

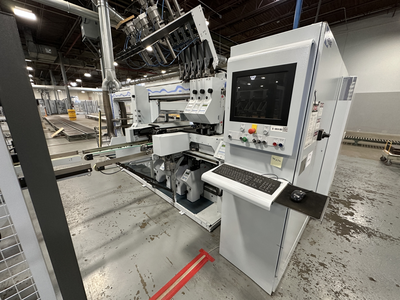

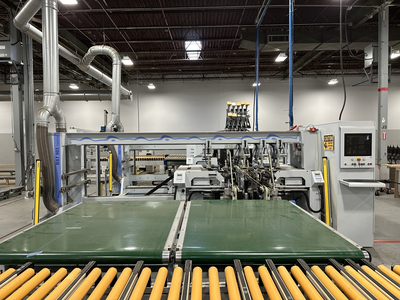

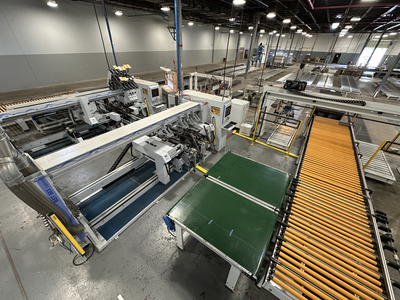

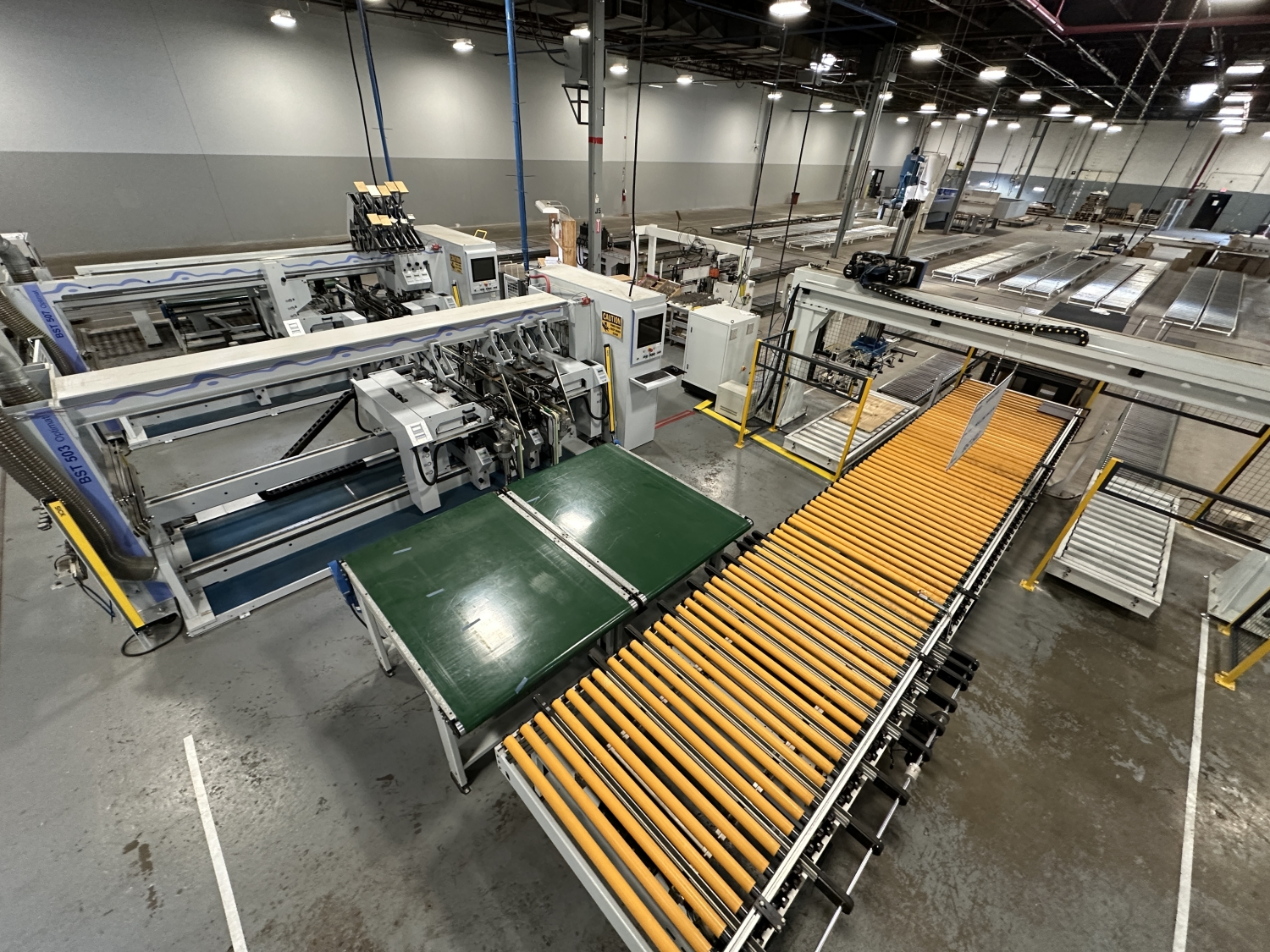

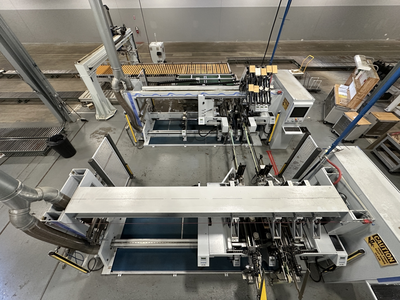

Weeke Models Optimat BST503 and BST507 CNC Through Feed Boring Line

Weeke Models Optimat BST503 and BST507 CNC Through Feed Boring Line

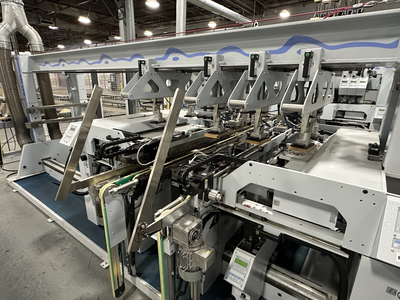

Optimal BST507 High Capacity Drilling Machine.
Min/Max Workpiece Dimension
- Length: 250mm/2500mm
- Width (Single): 80mm/1000mm
- Width (Line): 100mm/1000mm
- Thickness: 12mm/60mm
Center Distance Between Drilling Motors (Min/Max): 160mm/576mm
Support Center Distance: (Min)128mm
Configuration:
- 2 horizontal drilling supports (fixed and
movable side)
- with two drilling motors, driving
capacity 1.5 kW, 240/400 V, 50 Hz,
3000 1/min each,
- pneumatic central drilling feed with
infinitely adjustment of the drilling depth
4 horizontal drilling blocks with 11 drilling
spindles each

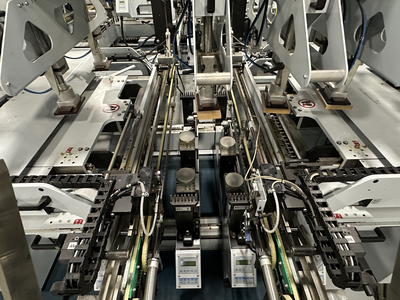

5 vertical bottom drilling supports
- mounted in the bottom machine frame
- each support with two drilling motors,
driving capacity 1.5 kW, 240/400 V, 50 Hz,
3000 1/min each
- digital display of position
manual adjustment X-direction
and of drilling motors (Y-direction)
- pneumatic drilling feed
- infinitely adjustment of the drilling depth - hydraulic damping for through drillings
- quick change system for drilling blocks
10 vertical drilling blocks with 11 drilling
spindles each
2 vertical top drilling supports
- mounted at the top machine frame each
support
- with two drilling motors driving capacity
1,5 kW, 240/400 V, 50 Hz, 3000 1/min each

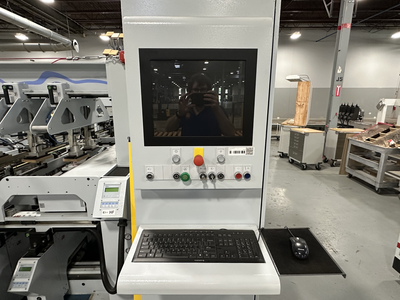

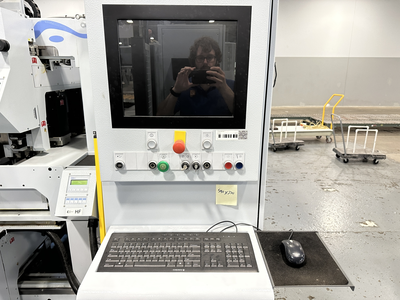

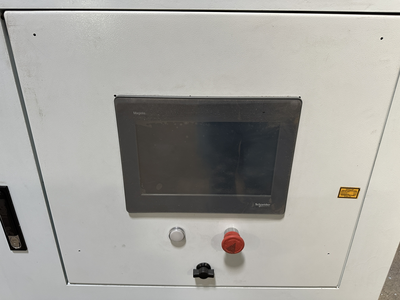

PowerControl System - Windows XP

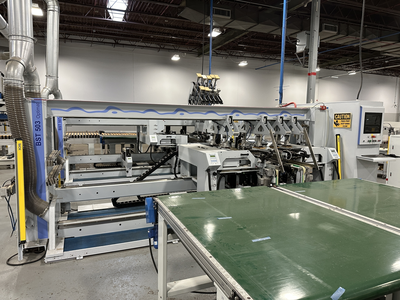

Optimat BST503 High Capacity Drilling Machine
Configuration:
2 horizontal drilling supports (fixed and movable side)
- with one fixed drilling motor, driving capacity 1.5 kW, 240/400 V, 50 Hz, 3000 1/min
- pneumatic central drilling feed with infinitely adjustment of the drilling depth
2 horizontal drilling blocks with 21 drilling spindles each
4 vertical bottom drilling supports
- mounted in the bottom machine frame
- each support with two drilling motors, driving capacity 1.5 kW, 240/400 V, 50 Hz, 3000 1/min each
- digital display of position manual adjustment X-direction
and of drilling motors (Y-direction)
- pneumatic drilling feed
- infinitely adjustment of the drilling depth - hydraulic damping for through drillings
- quick change system for drilling blocks
8 vertical drilling blocks with 11 drilling spindles each
4 clamping bridges (not tiltable)
- with two pneumatic clamping cylinders adjustable to the workpiece thickness
- clamping bridge longitudinally adjustable incl. pneumatic clamping
100 pick-ups for tools, shaft D = 10 mm,
L = 46 mm (horizontally and vertically)
1 preparation for the retrofitting of max.
3 vertical bottom supports and of the clamping System

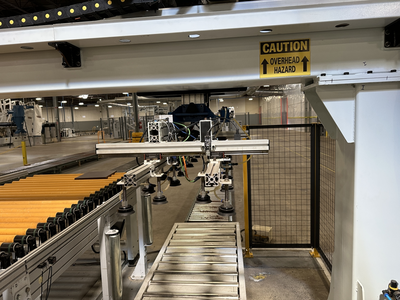

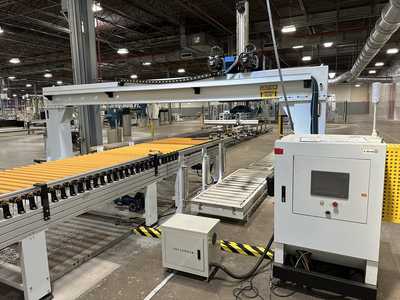

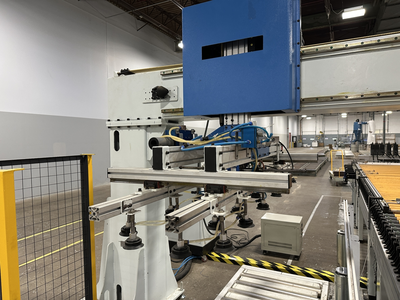

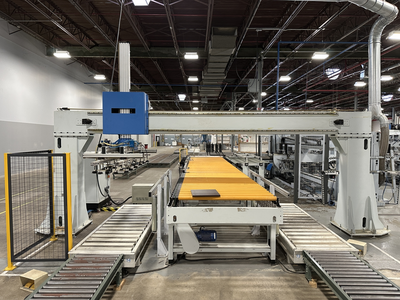

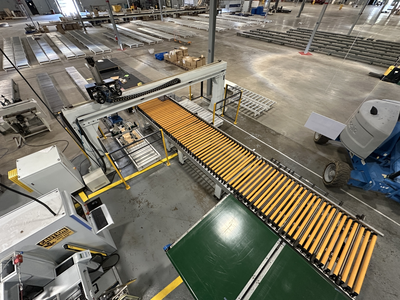

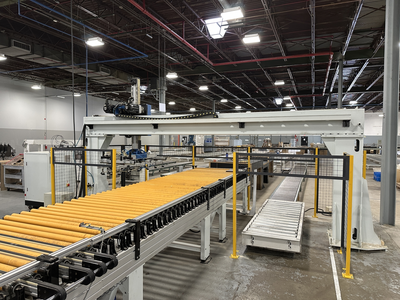

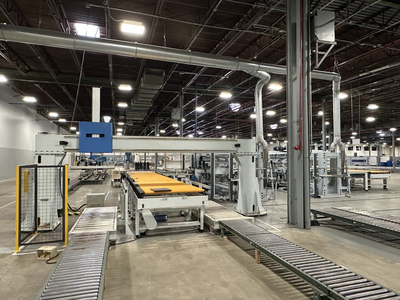

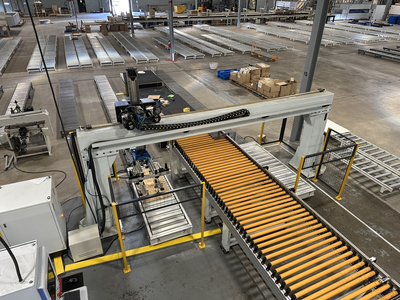

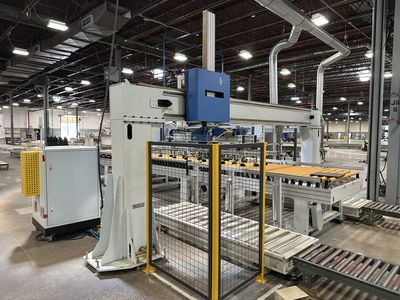

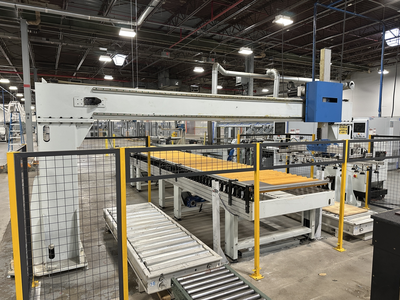

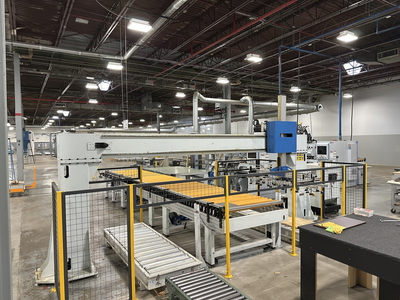

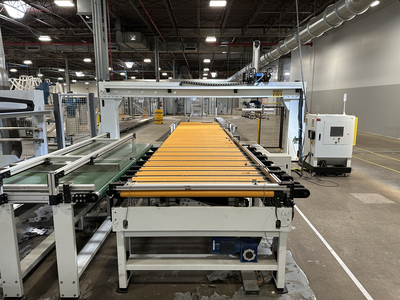

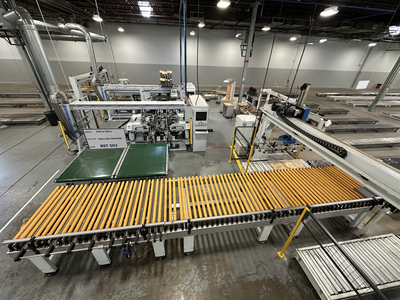

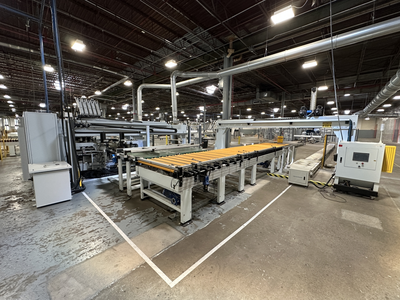

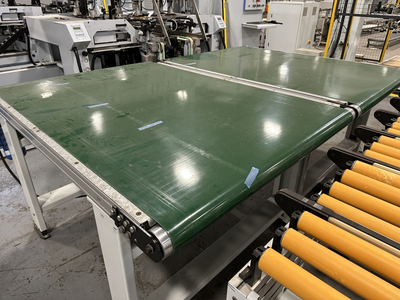

Includes Tiege Infeed Vacuum Loader and Tiege Outfeed Vacuum Stacker
2015 Machines, with Shockingly Low Hours.
Rigging, Loading, Delivery, etc. can be priced based on your needs. Please contact us to discuss.
