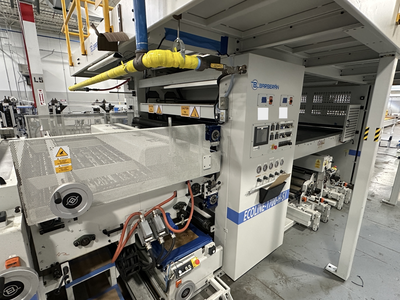

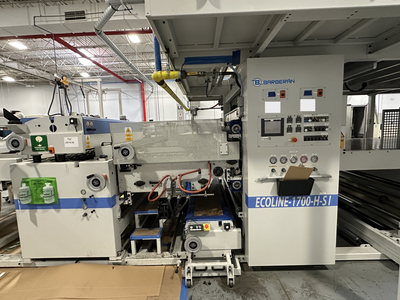

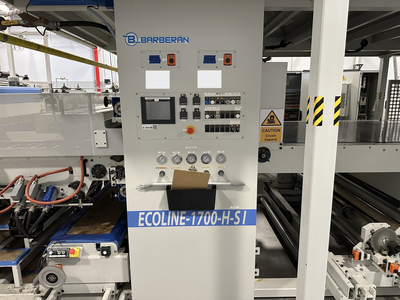

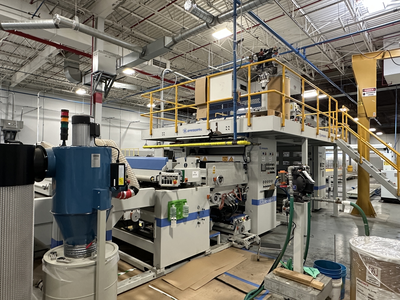

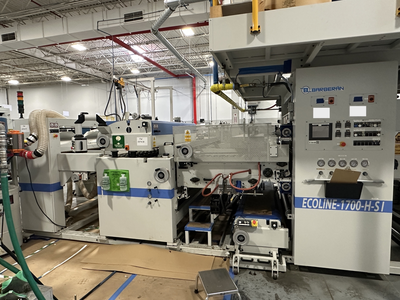

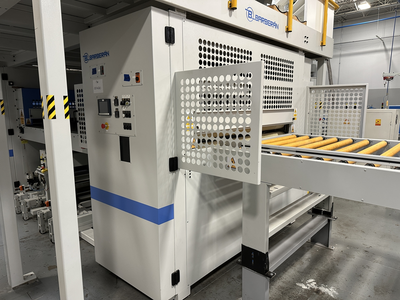

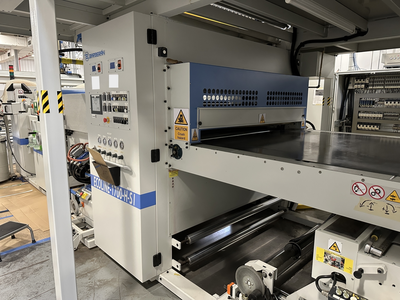

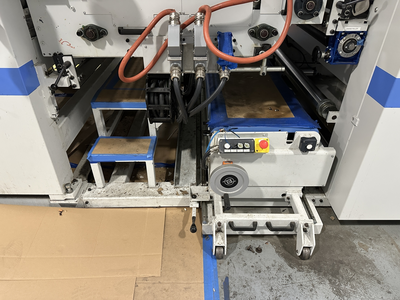

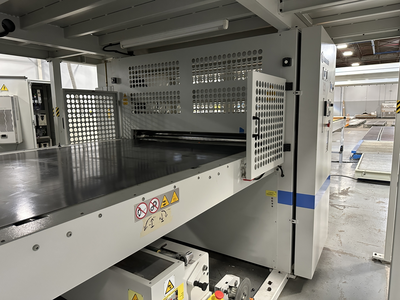

Barberan Ecoline-1700-H-SI Laminating System

Barberan Model Ecoline-1700-H-SI Laminating System
Material Capacity:
Min Work Piece Length: 1500mm
Max Work Piece Width: 1500mm
Min/Max Thickness: 3mm/50mm

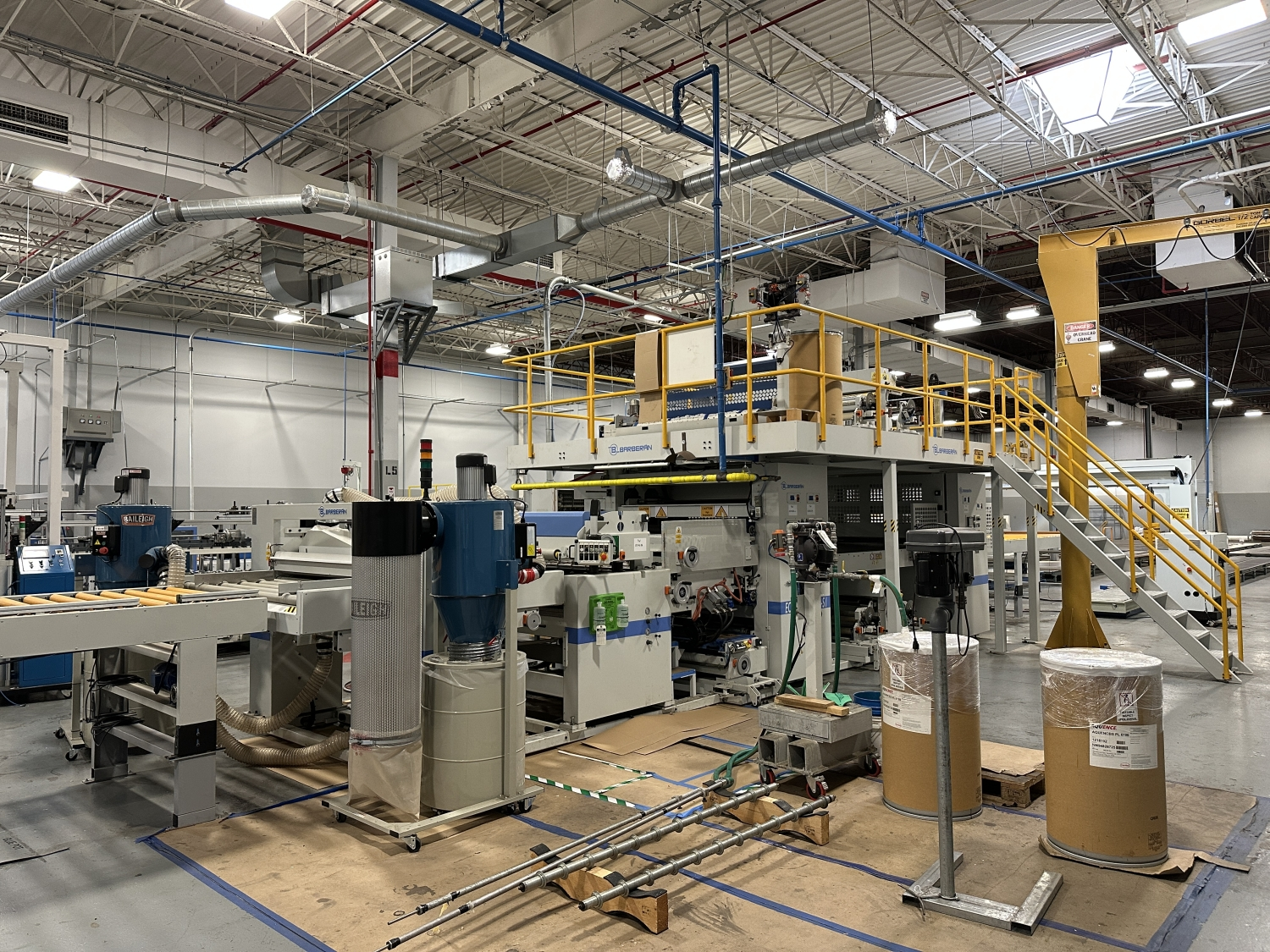

System Layout:

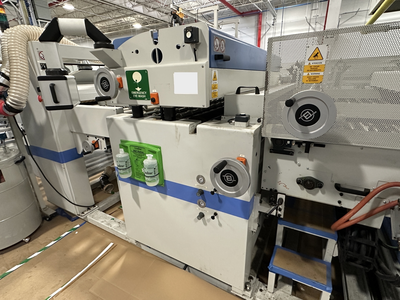

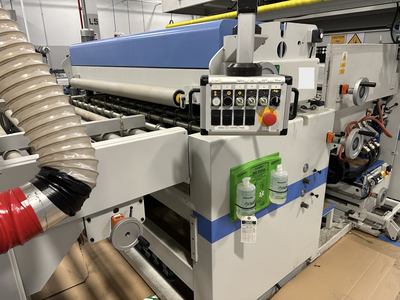

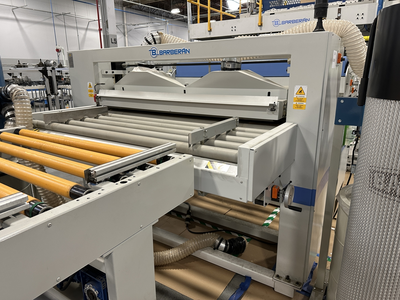

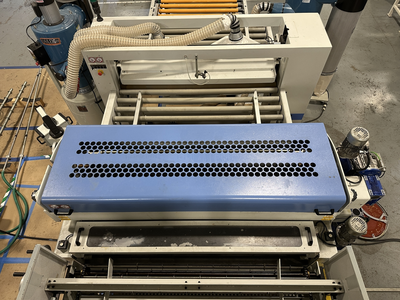

LP-ECO-1700 Panel Brush Machine
(2) 180mm (Dia.) Brush Heads Powered by 0.75kW Motors

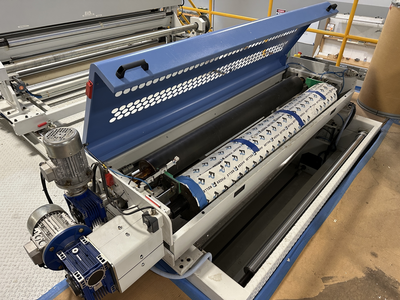

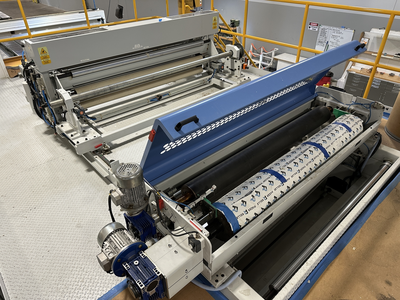

EN-R-4-1700 Panel Top & Bottom Glue Spreader
(2) 245mm (Dia.) Glue Applicator Rolls Powered by 0.75kW Motors
(2) 174mm (Dia.) Doctor Rolls Powered by 0.37kW Motors
IRC-SI-1700 Panel Top & Bottom Quartz Infrared Screen Set
30 Top & 30 Bottom Lamps - 0.4kW each - Total Power: 24kW

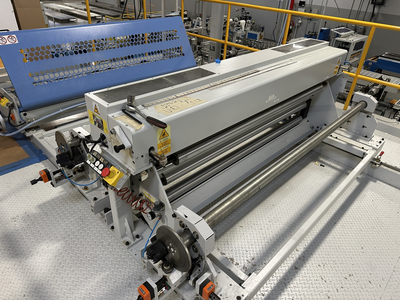

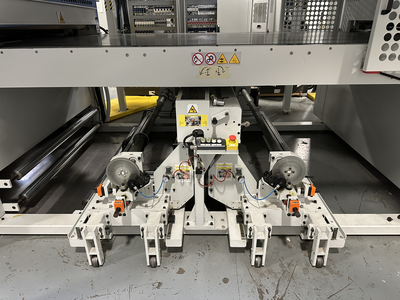

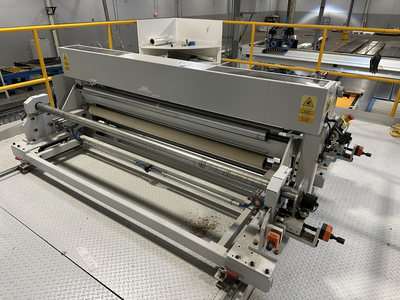

GDSI-1700 Foil Unwinding Station
Max Spool Diameter: 600mm
Max Spool Width: 1,580mm
GESI-1700 Top & Bottom Foil Glue Spreaders
(2) 245mm (Dia.) Glue Applicator Rolls Powered by 0.75kW Motors
(2) 174mm (Dia.) Doctor Rolls Powered by 0.37kW Motors
IRK-F-SI-1700 Foil Top & Bottom Glue Curing Screens
15 Top & 15 Bottom Lamps -1kW Each - Total Power: 30kW

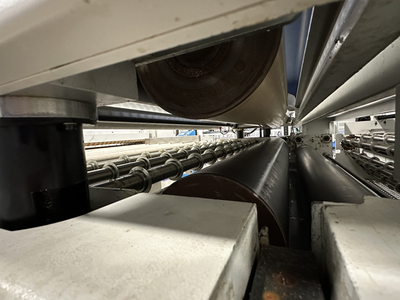

CAL-4-ECO-1700 Press Rolls
(4) 300mm (Dia.) Pressure Rolls - Max Force: 30kg/cm (426.7 PSI)
Pressure Rolls Motor - 3kW

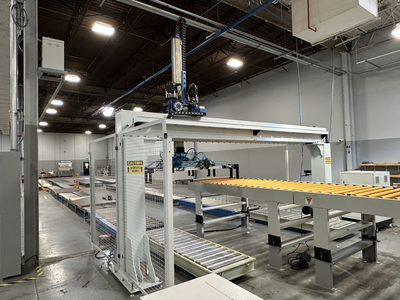

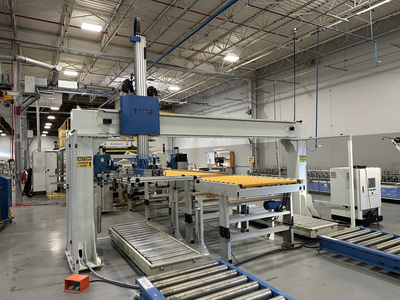

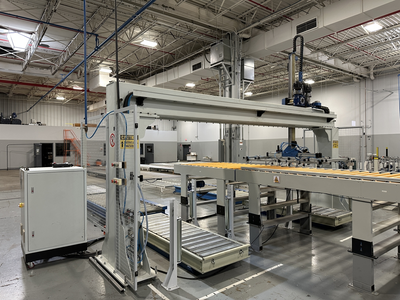

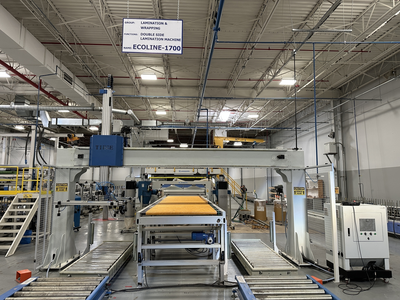

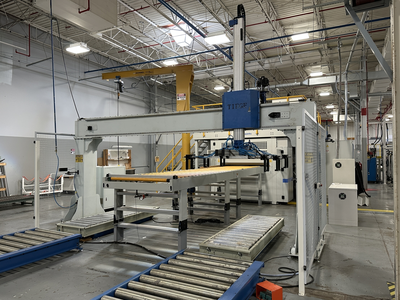

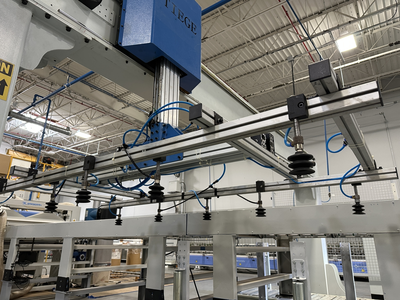

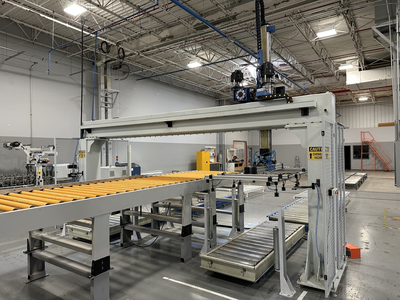

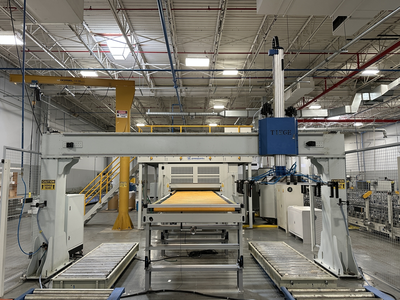

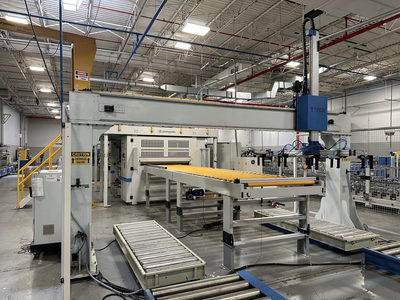

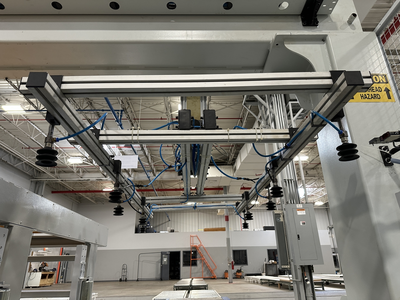

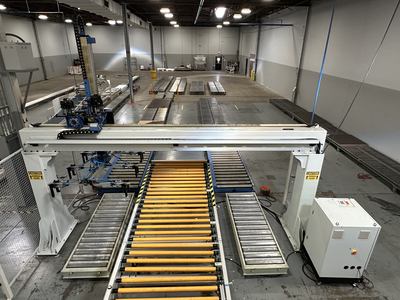

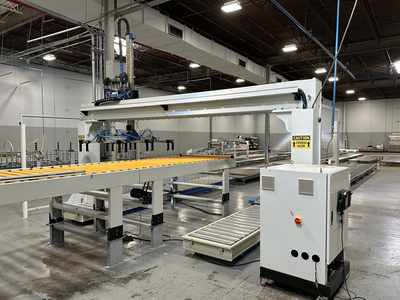

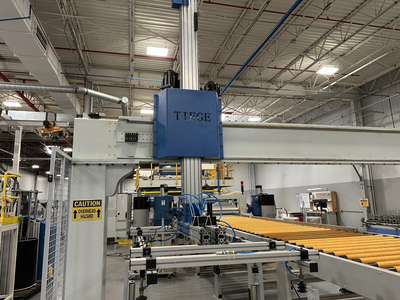

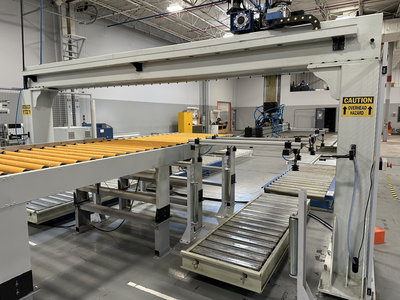

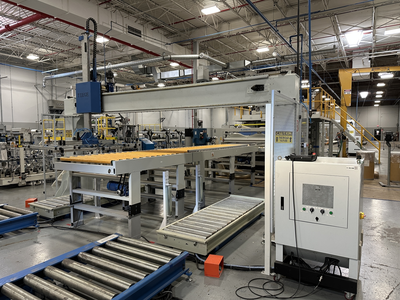

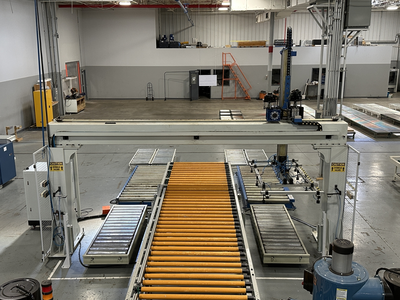

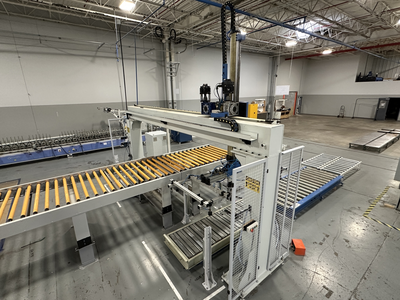

Includes Tiege Infeed Vacuum Loader & Tiege Outfeed Vacuum Stacker
Rigging, Loading, Delivery, etc. can be priced based on your needs. Please contact us to discuss.
