SPC9346 Mixer and Blender 50/10 hp Hockmeyer disperser, air over oil lift, dual shaft
Overview
Description

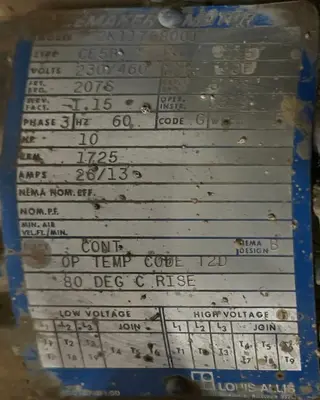

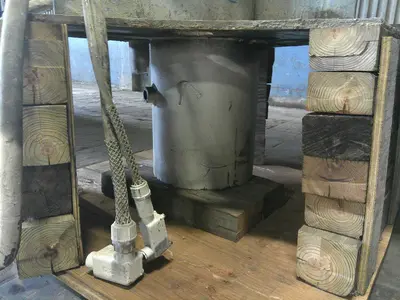

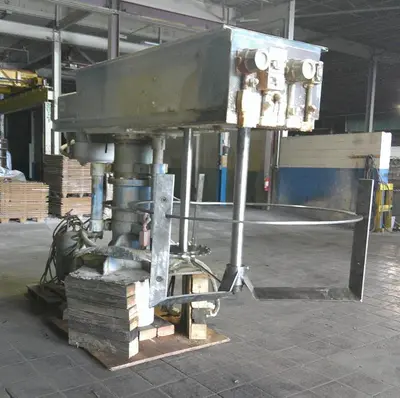

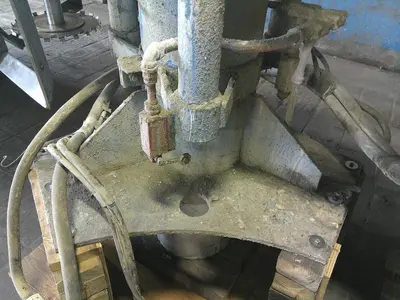

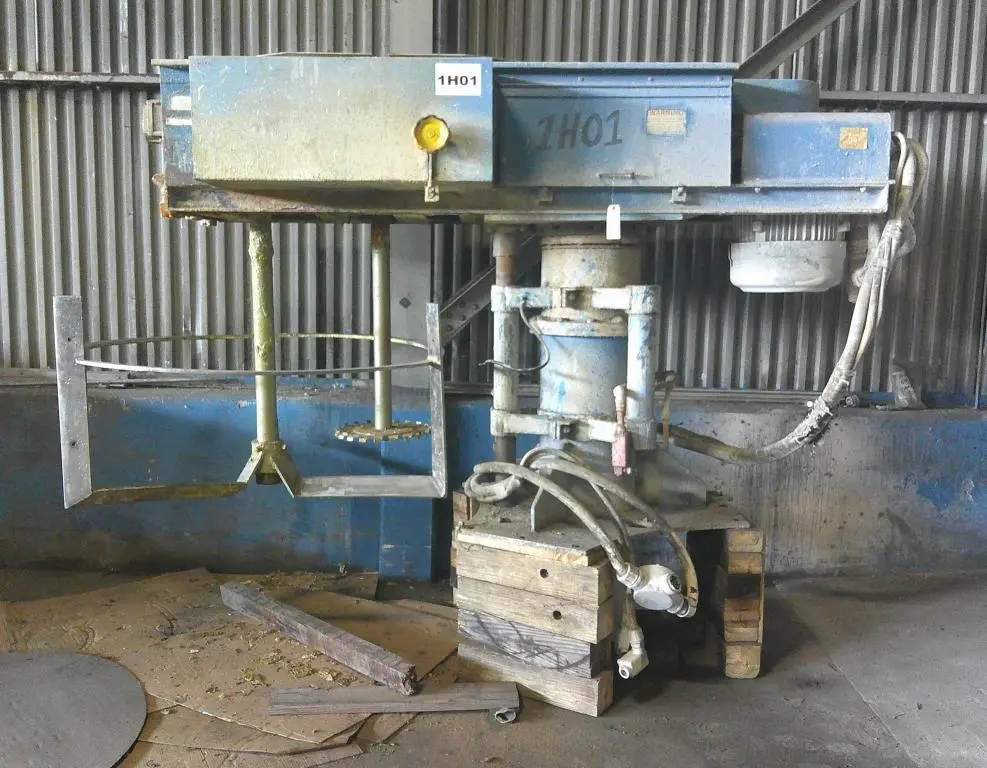

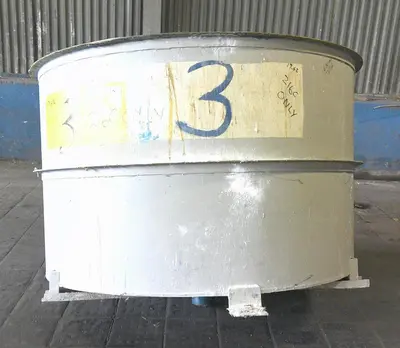

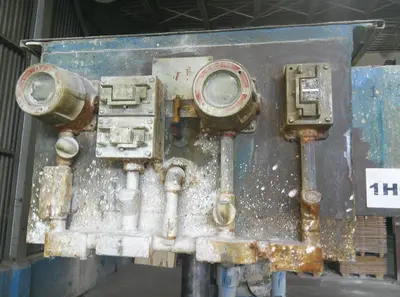

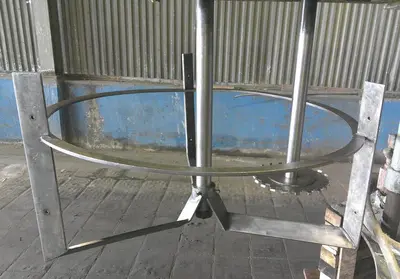

50 / 10 hp Hockmeyer model HH-L50-10 dual shaft disperser. Stainless steel contact parts. It has one 64" dia. 3 bladed anchor style sweep agitator for the side and bottom (3.25" dia. x 44" long shaft) and is driven by a 10 hp variable speed drive. It also has a 17" od high speed dispersion blade (2.9" dia. x 36" long shaft) that is driven by a 50 hp motor. Motors and controls are tagged for hazardous locations. Air over oil lift and includes the air/oil tank. 220 vac 3 ph electric power and air required. The overall dimensions of the disperser are 64" wide x 135" long x 86" tall. Please note: this mixer was designed for a relativly low ceiling height. It is designed so that 20" of the lift post sits through the floor or mezzanine. This unit comes with a 750 gallon open top carbon steel product mix tank that is 70" id x 45.5" tall straight side with a 6" center bottom drain.
