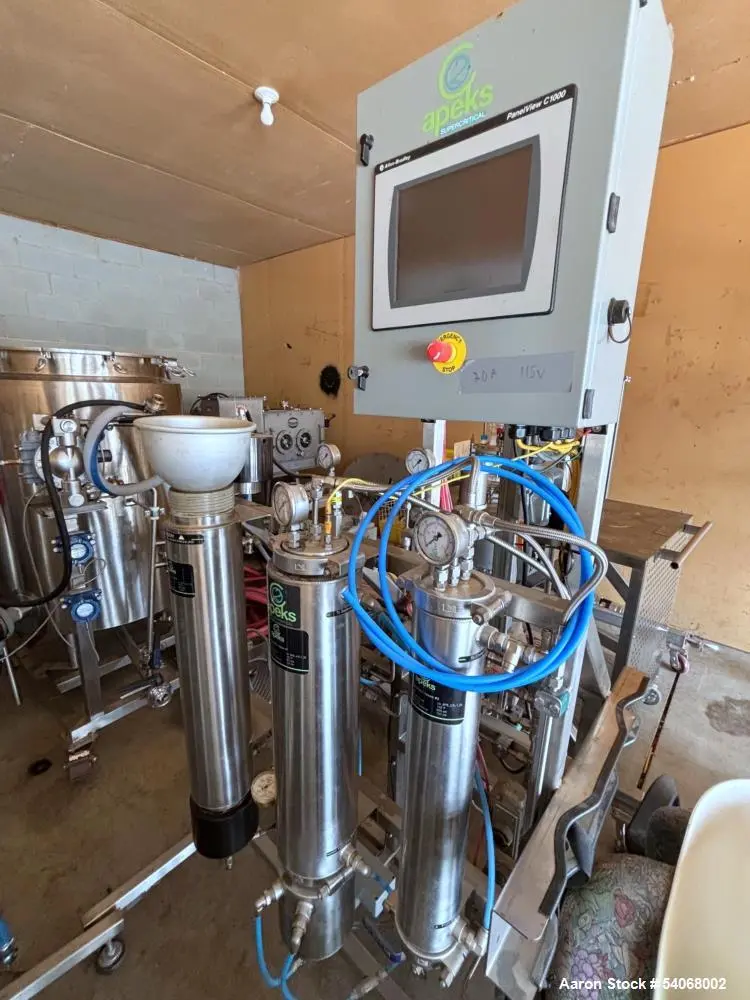

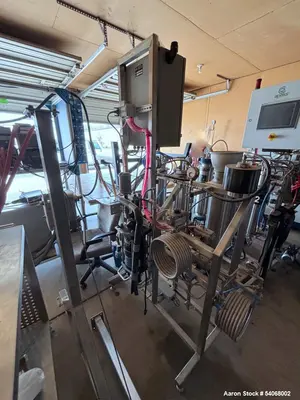

USED APEKS 5000-5L

🏭 Manufacturer Information
Brand: Apeks Supercritical
Model: 5000-5L
Type: Supercritical CO2 Extraction System
Condition: Used

📦 Product Description
The Used Apeks 5000-5L Supercritical CO2 Extraction System is a high-efficiency extraction unit built for processing up to 3 lbs of dry, milled material per batch, with an approximate throughput of 20 lbs/day. Engineered with 304 and 316 stainless steel construction, this system is built for durability and sanitary performance. Operating at 5,000 psi and rated for 160°F, it features Valveless Expansion Technology, a tube-in-tube heat exchanger, and recirculating chiller/heater for thermal stability and control. The system includes integral filters, internal thermometers, and safety features like spring-loaded relief valves and self-energized O-ring seals.

⚙️ Technical Specifications

System Capacity: 5 Liters

Material Capacity: ~3 lbs dry, milled material

Daily Throughput: ~20 lbs/day

Pressure Rating: 5,000 psi

Max Temperature: 160°F

Material: 304 & 316 Stainless Steel

Power Supply: 3-phase, 208/230/460 Volt

Included Components:

CO2 re-circulation pump

Air-driven gas booster

(2) Valveless expansion separators

Tube-in-tube heat exchanger

Recirculating chiller/heater

Threaded closures

Internal thermometers

Spring-loaded safety relief valves

Integral filters

🔧 Applications
Ideal for industries needing high-pressure botanical extraction using CO2, including:

Hemp & CBD oil extraction

Essential oil distillation

Terpene extraction

Pharmaceutical compound isolation

Food additive processing

Cannabis concentrate production

Nutraceutical ingredient extraction

Flavors & fragrance development

Cosmetic raw material extraction

Research & development laboratories

📌 What Products Would This Be Used For?

CBD oils and tinctures

THC concentrates and distillates

Terpene-rich extracts

Cannabis waxes and shatters

Herbal essential oils

Organic flavor additives

Botanical nutraceuticals

Plant-based skincare ingredients

Medicinal oil formulations

Food-grade aromatic extracts
