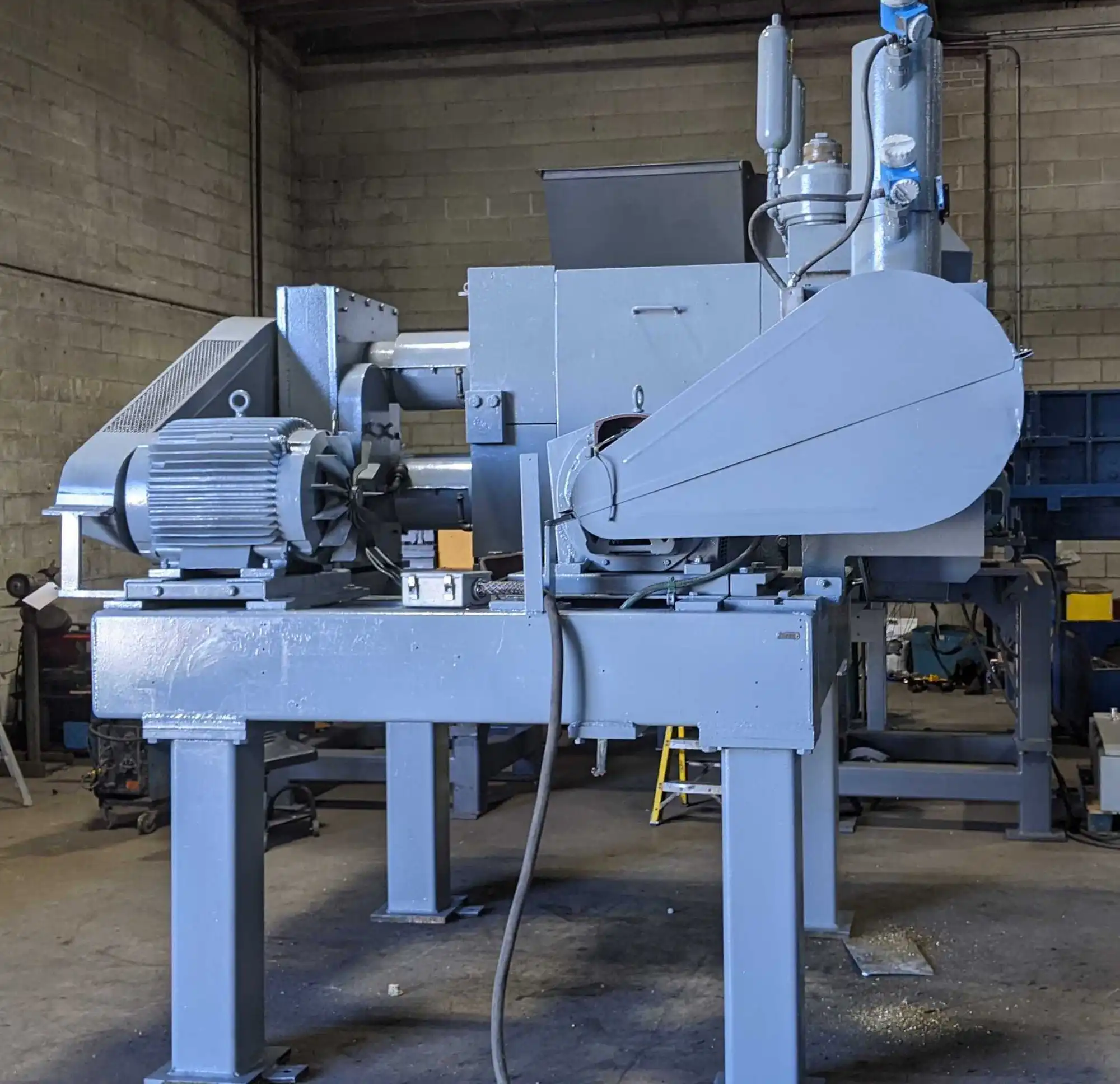

USED 1999 KR KOMAREK INC DH400
Overview
Description
DH400 Used Komarek Greaves Hydraulic Briquetter by KR KOMAREK INC, 1999 model specializing in pillow briquettes. Specifications include up to 10 tons/hour production, 400 mm roll diameter, and 40HP motor. Features automatic lubrication, water cooling, and PLC control.
Specifications
| Briquette Type | Pillow | Pillow |
|---|
- **General:**
- **Capacity:**
- Briquette Production Rate: Up to 10 tons per hour (depending on material)
- Briquette Size: Customizable (typically between 20mm to 50mm in diameter)
- **Pressing Mechanism:**
- Roll Diameter: 400 mm
- Roll Width: 100 mm
- Roll Speed: Adjustable, typically 5-15 RPM
- Pressing Force: Up to 50,000 kN
- **Power Requirements:**
- Main Motor: 40HP (depending on configuration)
- Voltage: 240/460v
- 5.31:1 Ratio - 220 RPM Input Speed
- **Material Handling:**
- Feed Hopper Volume: 1 m³
- Feeding System: OPTIONAL - Screw feeder or belt conveyor (customizable)
- Max Feed Size: 10 mm
- **Operational Features:**
- Control System: PLC controlled with HMI interface
- Lubrication System: Automatic central lubrication
- Cooling System: Water-cooled rolls
- Safety Features: Emergency stop, overload protection, safety guards
- **Dimensions and Weight:**
- Machine Dimensions (L x W x H): 3000 mm x 1500 mm x 2000 mm
- Weight: Approximately 12,000 kg
- **Optional Features:**
- Pre-Pressing System: For fine and cohesive materials
- Adjustable Roll Gap: For different briquette densities
- Wear-Resistant Rolls: For abrasive materials
- **Applications:**
- Coal and charcoal briquetting
- Metal powder briquetting
- Mineral briquetting
- Agricultural and forestry waste briquetting
