USED 2022 ACCU-CUT T-12

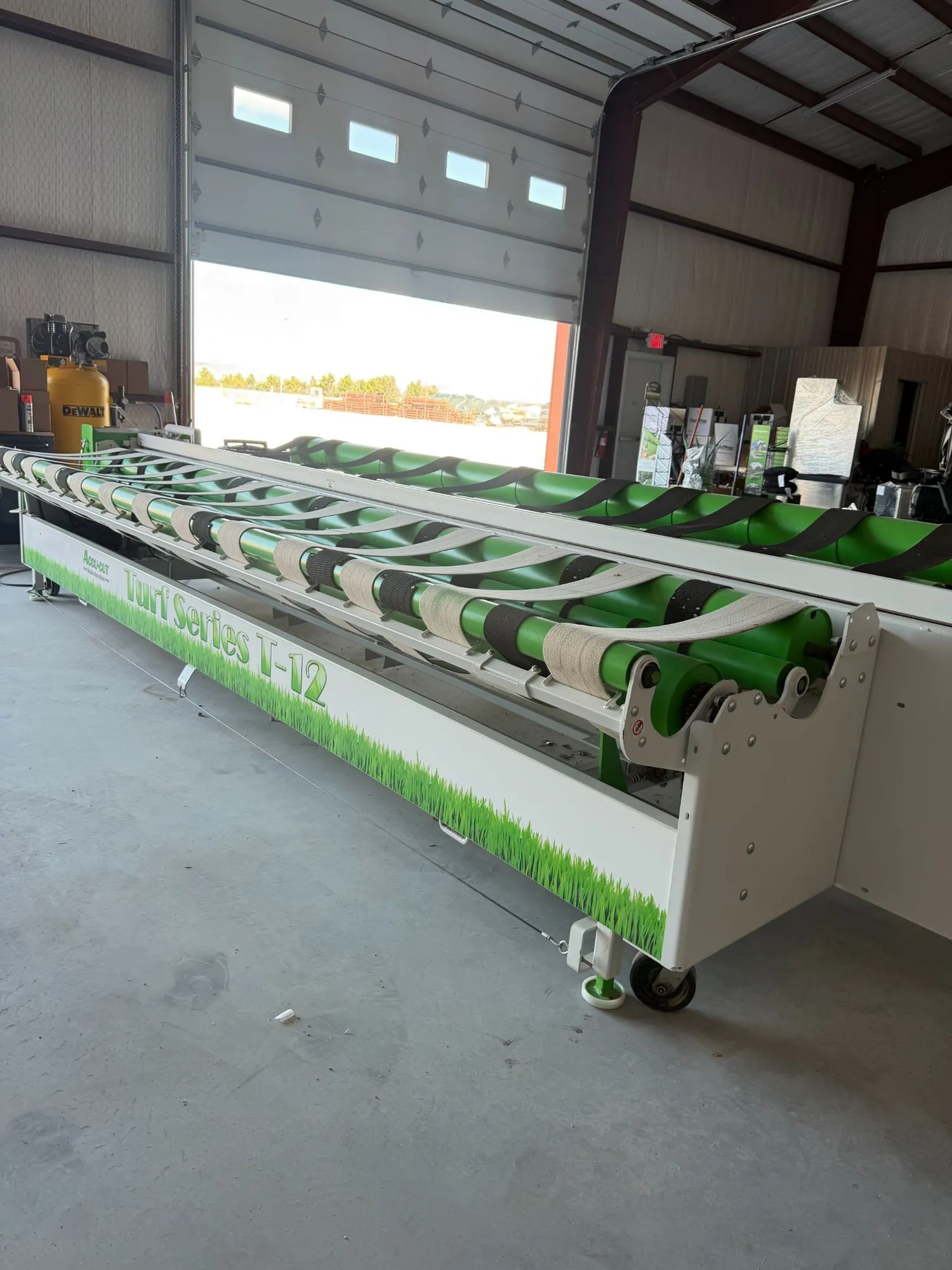

Accu-Cut T-12 Artificial Turf Cutting Machine (2021)

Physical & Mechanical Specifications

• Weight: 3,100 lbs
• Dimensions: 18' 6" L x 7' 9" W x 3' 10" H
• Maximum Material Width: 15 feet (handles salvage edge)
• Blade System: 4.5-inch circular beveled, self-sharpening cross-cut blade
• Portability: Built as a mobile unit with lifting brakes for ease of movement

Power & Utility Requirements

• Electrical: 220V, single-phase, 60Hz, 15 Amps
• Pneumatics: 120 PSI air pressure required
• Safety Certifications: Meets UL and CSA safety standards (CE available)

Operational Capabilities & Controls

• Speed: 10 programmable speed settings up to a top speed of 129 feet per minute
• Processing Time: Can complete a standard rolling, measuring, cutting, and wrapping cycle in approximately 2.25 to 3 minutes
• Programmable Counter: PLC control system with a touchscreen interface storing up to 9 preset cuts
• Alignment Sensors: Integrated photo-sensor "auto-adjusting eyes" to automatically prevent roll shifting and ensure straight roll-up
• Material Handling Cradles: Features switch-controlled expandable pneumatic "clam shell" cradles to manage large diameter rolls
• Discharge Mechanism: Air-powered dual-side dump cradles to pneumatically discharge finished rolls from either side
• Operator Ergonomics: Surrounded by a wrap-around foot cable control allowing operation from any side during plastic wrapping
