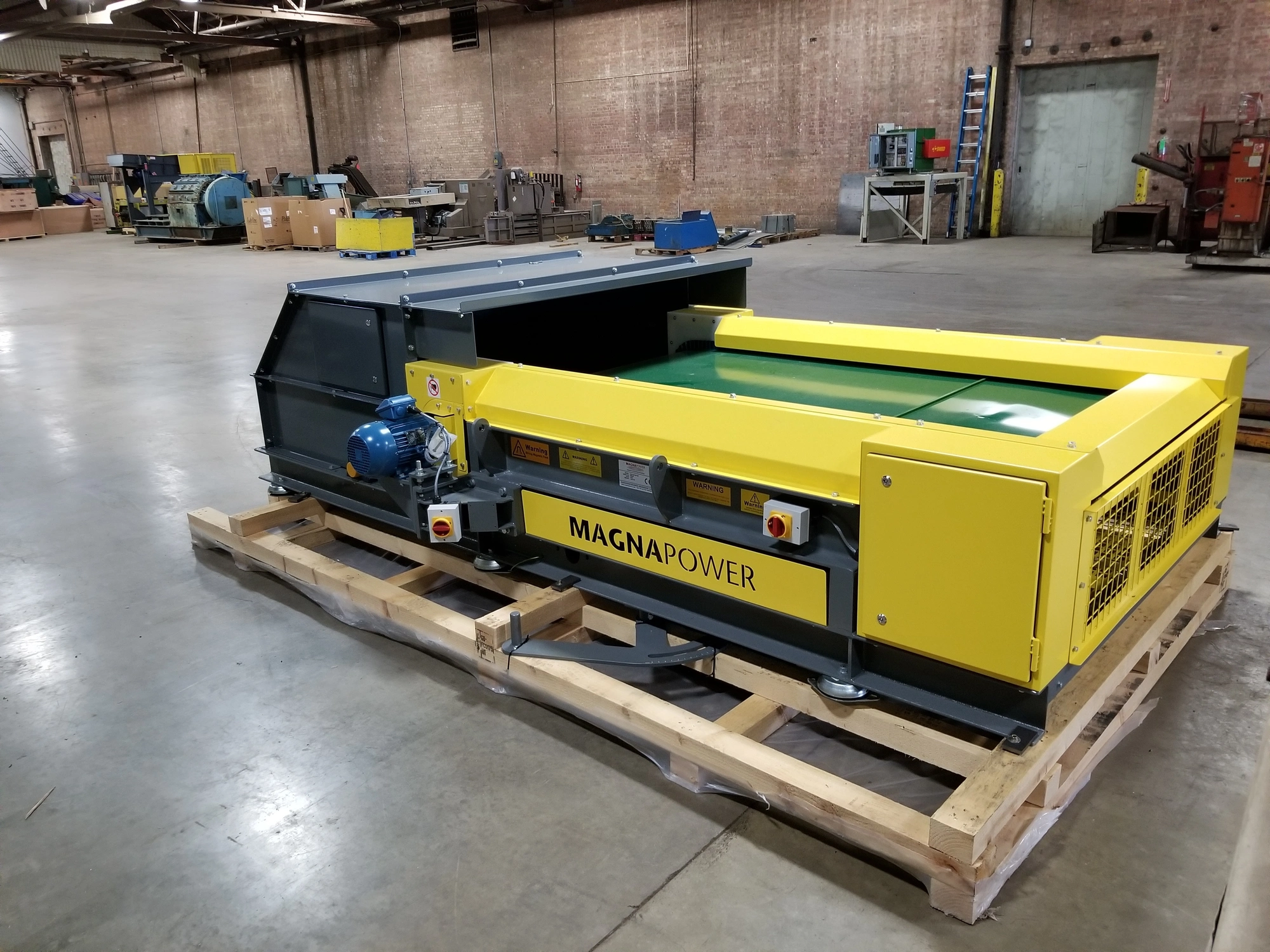

USED MAGNAPOWER ECS900

------------------------------------------
Magnapower Eddy Current Separator
------------------------------------------

**Effective Width:**
- 900mm (36").

**Drive Systems:**
- ECS Rotor Drive:
- Power: 3kW
- Voltage: 3/60/240/480 Volt
- ECS Belt Drive:
- Power: 1.5kW
- Voltage: 3/60/240/480 Volt

**Design Features:**
- Anti-leakage design enhances performance up to 50%.
- Optimized pole to diameter ratio for maximum efficacy.
- Eccentric rotor design for enhanced reliability and improved effective area & tolerances.

**Construction:**
- Frame: Heavy duty cantilever for easy belt change and maintenance.
- Splitter Box: Adjustable, included with frame.
- Seals: Labyrinth bearing seals to safeguard rotor and bearings.

**Controls:**
- Variable Frequency Drive (VFD) controls and feeder controls.

**Applications:**
- Versatile suitability for a range of applications including recovery of small non-ferrous metals starting from 2mm size (fines) to larger shredded scrap metal processes.

OPTIONAL: Magnapower top-fed, rare earth drum magnet with integrated vibratory feeder & supporting structures for removal of ferrous fines prior to ECS separation.
