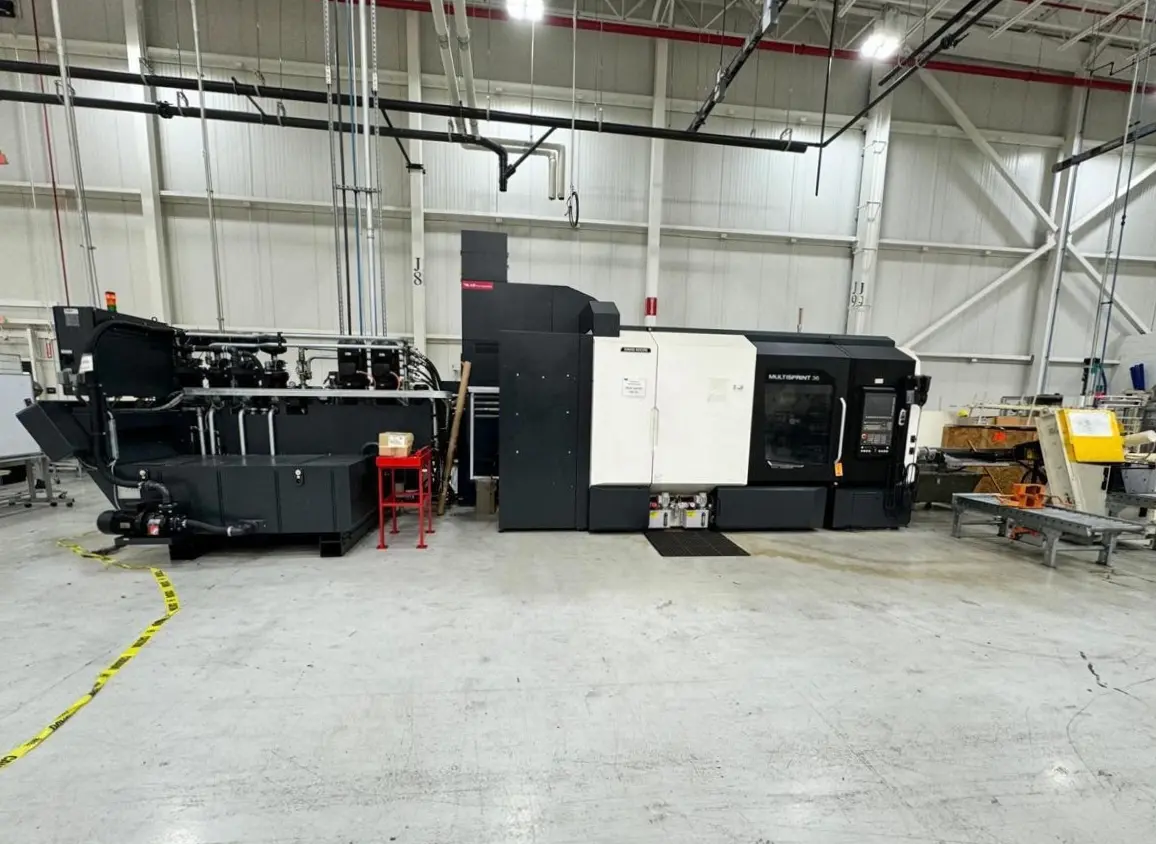

USED 2019 DMG MORI MULTISPRINT 36

Max Bar Capacity: 1.41″
Max Bar Feed: 3.93″
Number of Work Spindles: 6
Spindle pitch circle diameter: 14.96″
Max Spindle Speed: 7500 RPM
Spindle Power: 20 HP
Bar Max Length: 0.13″
Bar Min Loading Length: 0.09″
Number of Units (Cross Slides with X – Y Axes Movements): 6
X-Axis Max Travel Pos.1-6: 1.96″
Y-Axis Max Travel Pos.1-6 mm: +/- 1.96″
Main Spindles Z-Slides
Number of Slides: 6
Z-Axis Travel: 3.93″
Machine Weight: 33,000 Lbs.
Machine Dimensions: 401.57″ x 84.65"

MPa High Pressure System
Chiller System
Oil Mist Collector

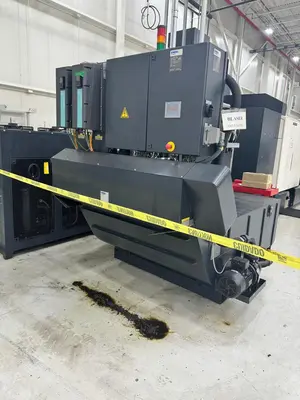

Chip Conveyor
