| Chuck / Table Dia | 48" | 1,219.2 mm |
| Swing | 59" | 1,498.6 mm |
| Work Ht-U/R | 48" | 1,219.2 mm |
| RPM | 140 RPM | 140 RPM |
| Power | 40 hp | 29.8 kW |

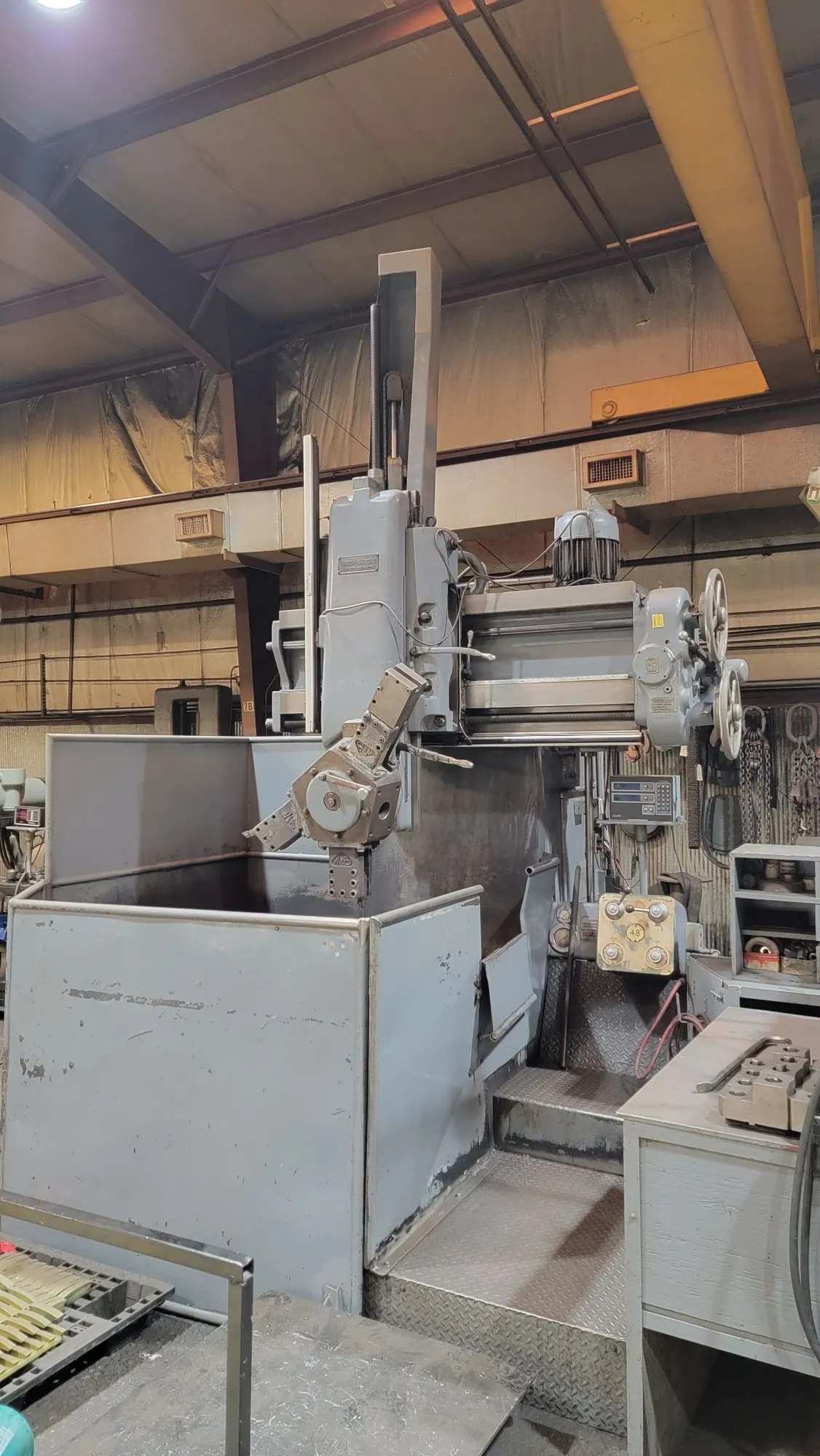

Webster & Bennett 48" Vertical Boring Mill
SPECIFICATIONS:
Table Diameter........48"
Max Swing.............60"
Spindle Motor.........30 HP
Table speeds..........125 RPM
Table feeds...........0.0025" to 0.125" per rev
Number of Tools.......5 Station Turret
Electrics.............415V/3PH/50HZ
Machine Dimensions....110" x 137" x 13' (With the guard removed, it is 12'-6" to the top of the leadscrew itself)
2-Axis DRO
48" 4-Jaw Chuck
5-Station Turret
Tracer Attachment
