USED 1979 TOSHIBA SHIBAURA TSS 30/55A

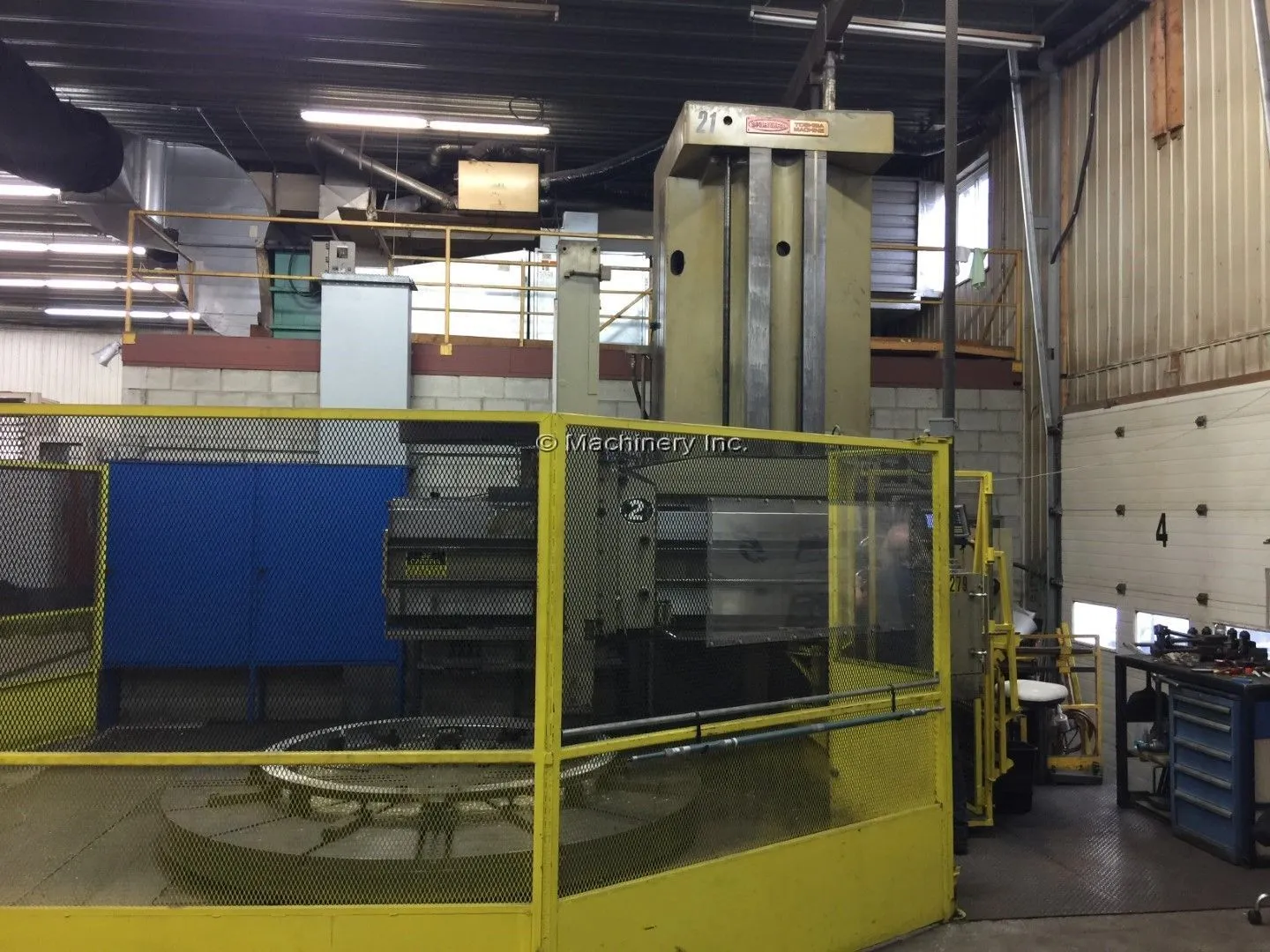

118"/ 216.5" TOSHIBA TSS 30/55A CNC VERTICAL BORING MILL WITH LIVE SPINDLE
Model: TSS-30/55A
Year: 1979(RETROFIT IN 2003 WITH SIEMENS 840D)
Table Diameter ...................... 118"
Maximum Swing ....................... 216.5"
Maximum Swing For Center Machining .. 157"
Maximum Height Under Rail ........... 102"
Cross Rail Travel ................... 53"
Ram Stroke .......................... 49"
Ram Tilt (+/-) ...................... 30 Degrees
Table Speeds (16) ................... 1.25-80 RPM
Feeds ............................... .0008-.8 IPR
Table Weight Capacity ............... 35,300 Lbs
Motor : 50 HP

Live Milling Motor: 25/20 hp
Live Milling Speed: 2000 RPM
Live Milling Taper: CAT#50

Equipped with:

SIEMENS 840D CNC CONTROL
CHIP CONVEYOR

Machine Dimensions:
Overall Height : 287”
Floor space: 364” x 260”

Machine Weight Approx: .............. 85,000 Lbs
